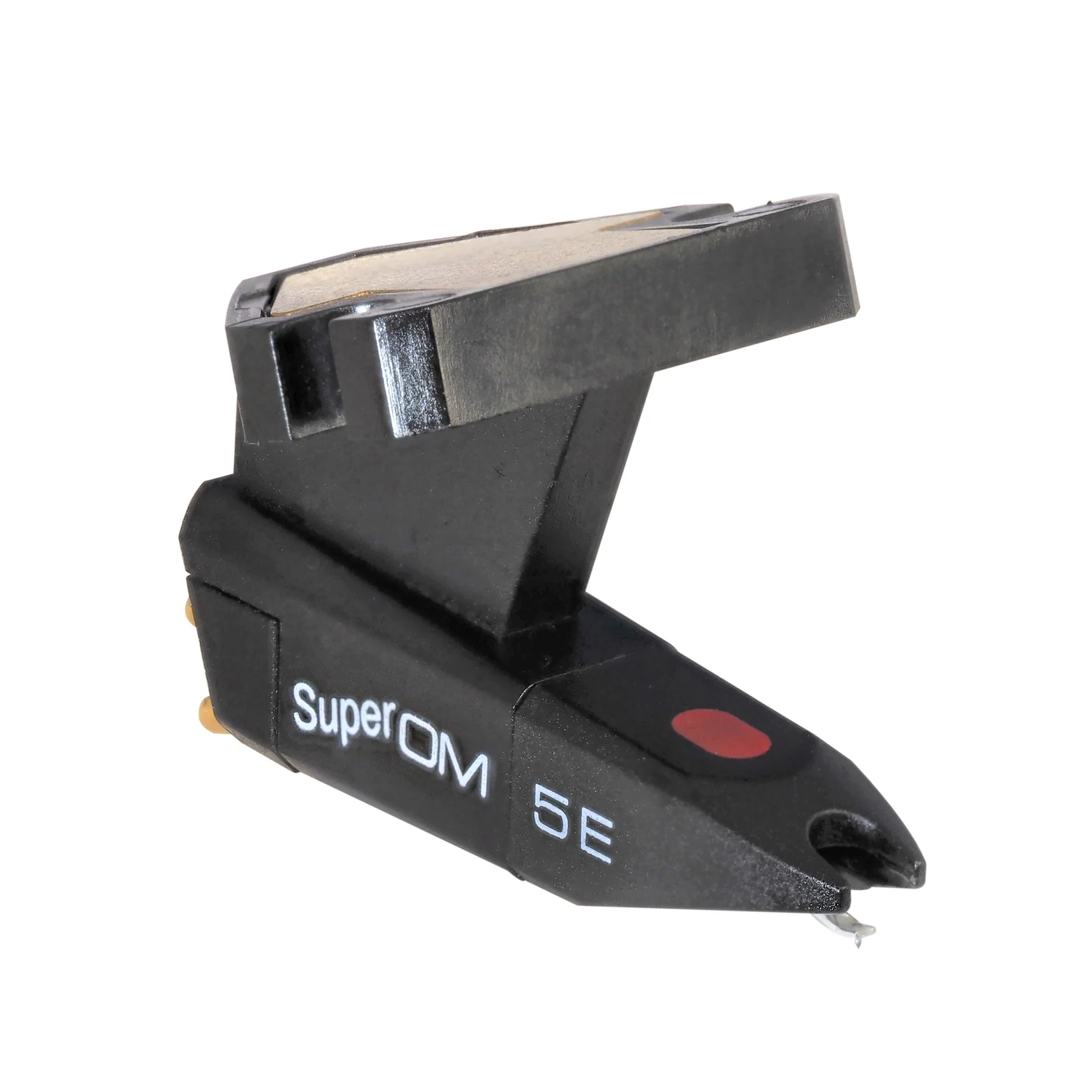

Ortofon Hi-Fi Super OM 5E Moving Magnet Cartridge

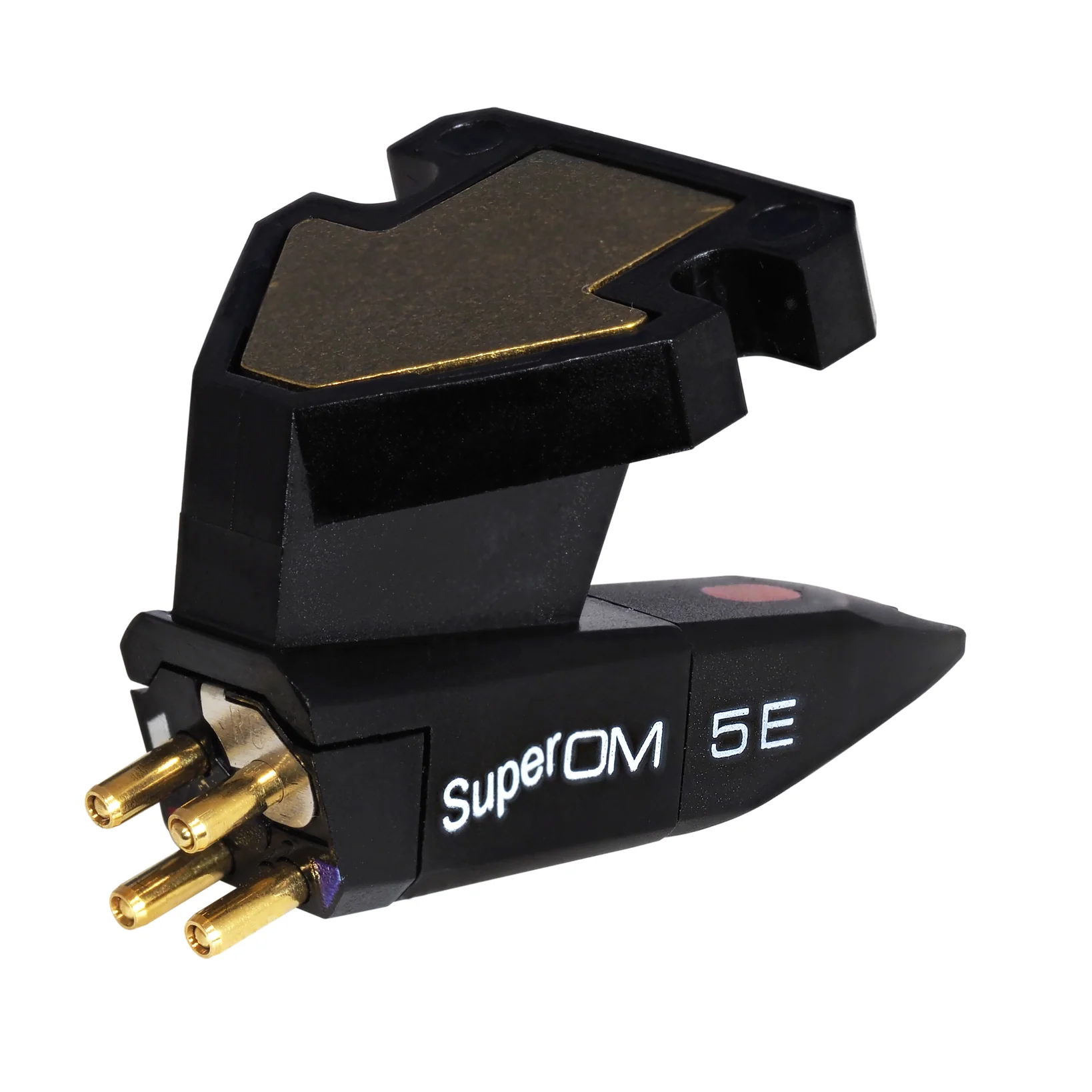

Ortofon Hi-Fi Super OM 5E Moving Magnet Cartridge - Image 2

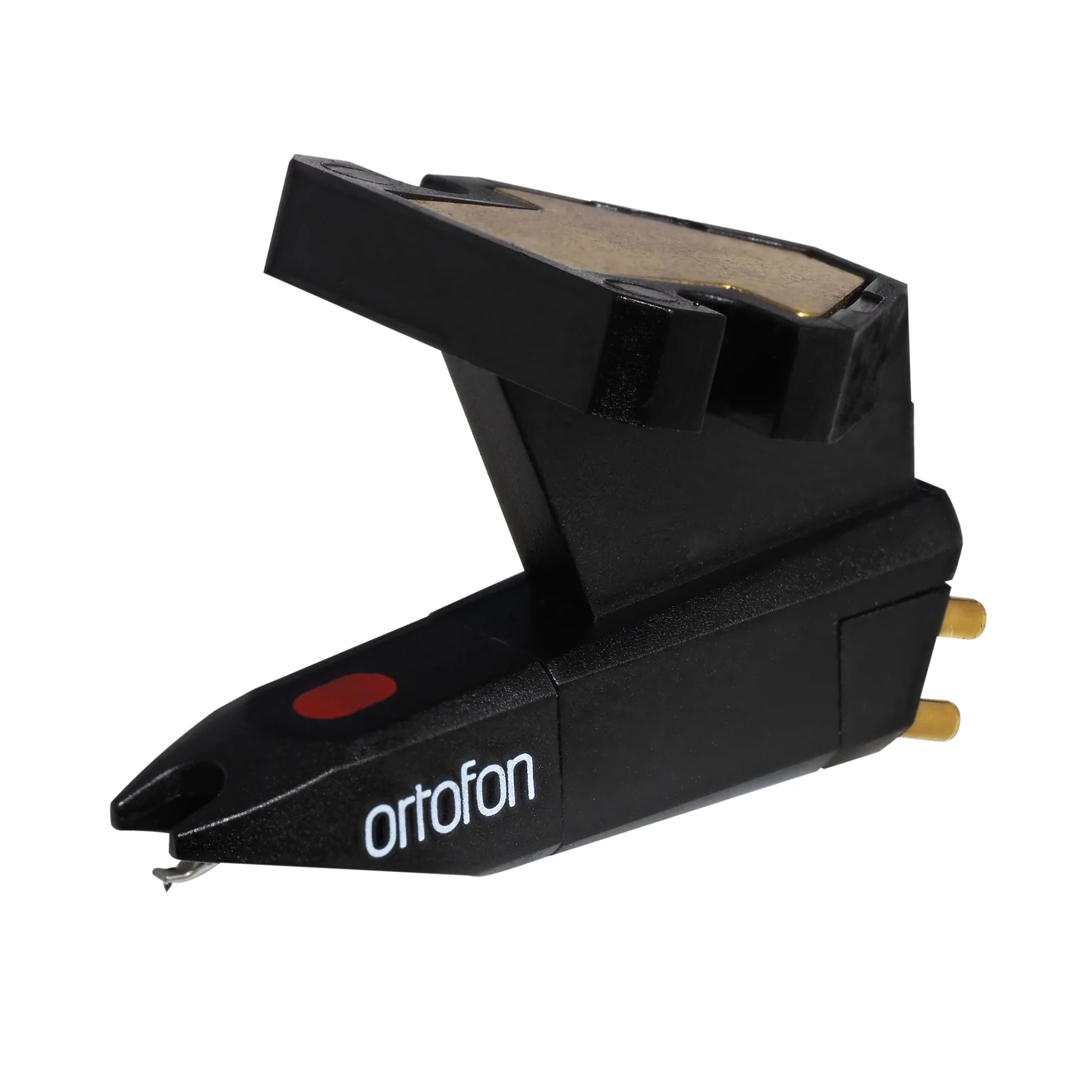

Ortofon Hi-Fi Super OM 5E Moving Magnet Cartridge - Image 3

Ortofon Hi-Fi Super OM 5E Moving Magnet Cartridge

$175.00

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge.

Categories: , Tags: , Brand:

Description

Based on the OM 5E, Ortofon’s stellar entry-level cartridge, the Super OM 5E offers an even more refined experience at an approachable price. Designed with sophisticated computer simulations and built using incredibly precise machining, the Super OM 5E is the pinnacle of the OM 5 Series, offering a broader frequency range and better channel separation. Its elliptical stylus tracks the grooves of a record with ease and grace, for a more detailed, clearer sound.

Lightweight and versatile, the Super OM 5E is compatible with just about any tonearm, making it an easy upgrade for a vinyl beginner or a terrific option for a second system.

Specifications

  • Output voltage at 1 kHz, 5 cm/sec.: 4 mV
  • Channel Balance at 1 kHz: 1.5 dB
  • Channel Separation at 1 kHz: 22 dB
  • Channel Separation at 15 kHz: 15 dB
  • Frequency range at -3 dB: 20–25,000 Hz
  • Frequency response: 20–20,000 Hz ±2 dB
  • Tracking ability at 315 Hz at recommended tracking force: 65 μm
  • Compliance, dynamic, lateral: 20 μm/mN
  • Stylus type: Elliptical
  • Stylus tip radius: r/R 8/18 μm
  • Tracking force range: 1.5–2.0 g (15-20 mN)
  • Tracking force, recommended: 1.75 g (17.5 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1 kOhm
  • Internal inductance: 580 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200–500 pF
  • Cartridge colour, body/stylus: Black/Black
  • Cartridge weight incl. extra weight: 5 g
  • Cartridge weight excl. extra weight: 2.5 g
  • Replacement stylus unit: Stylus 5E
  • Interchangeable with: Stylus 10
