Description

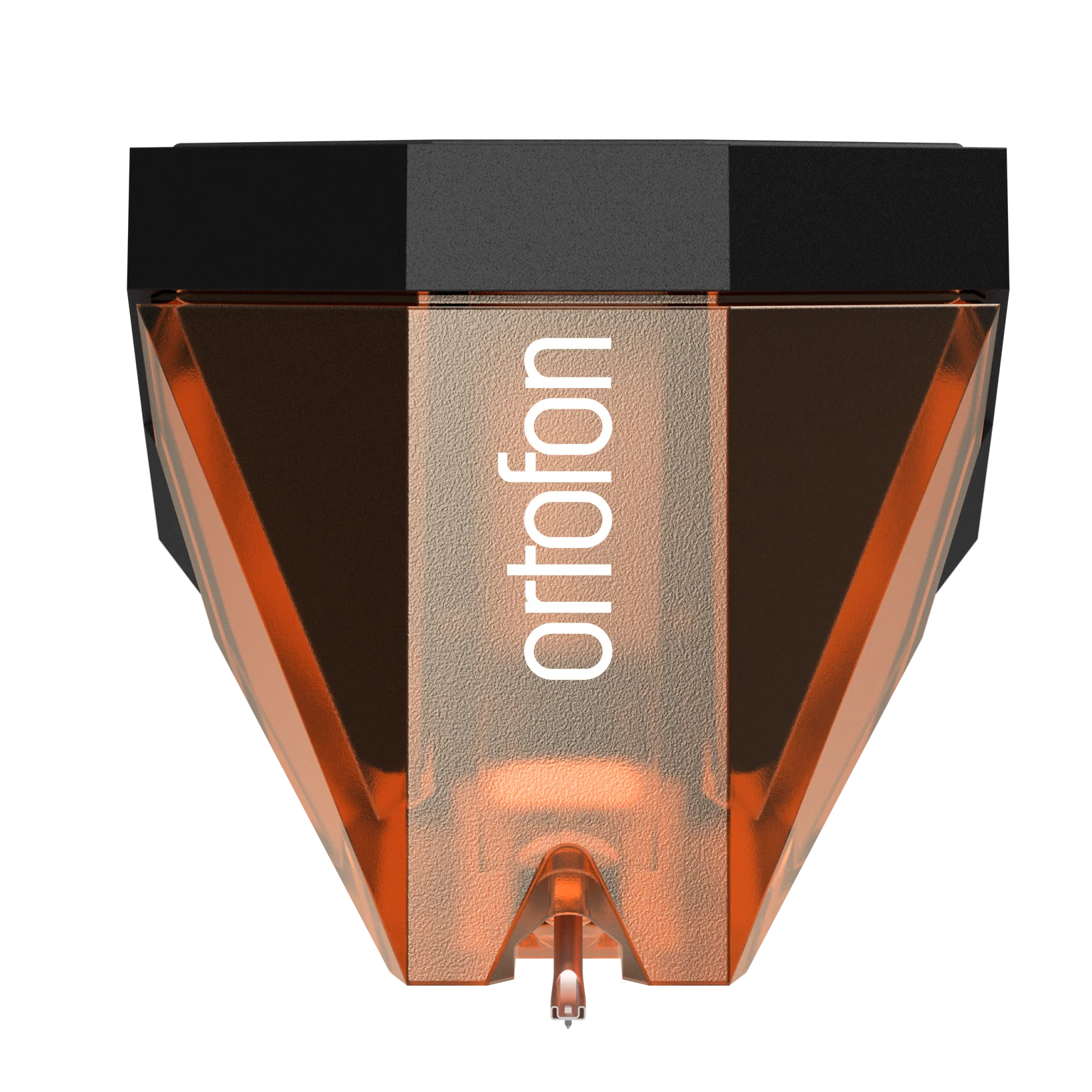

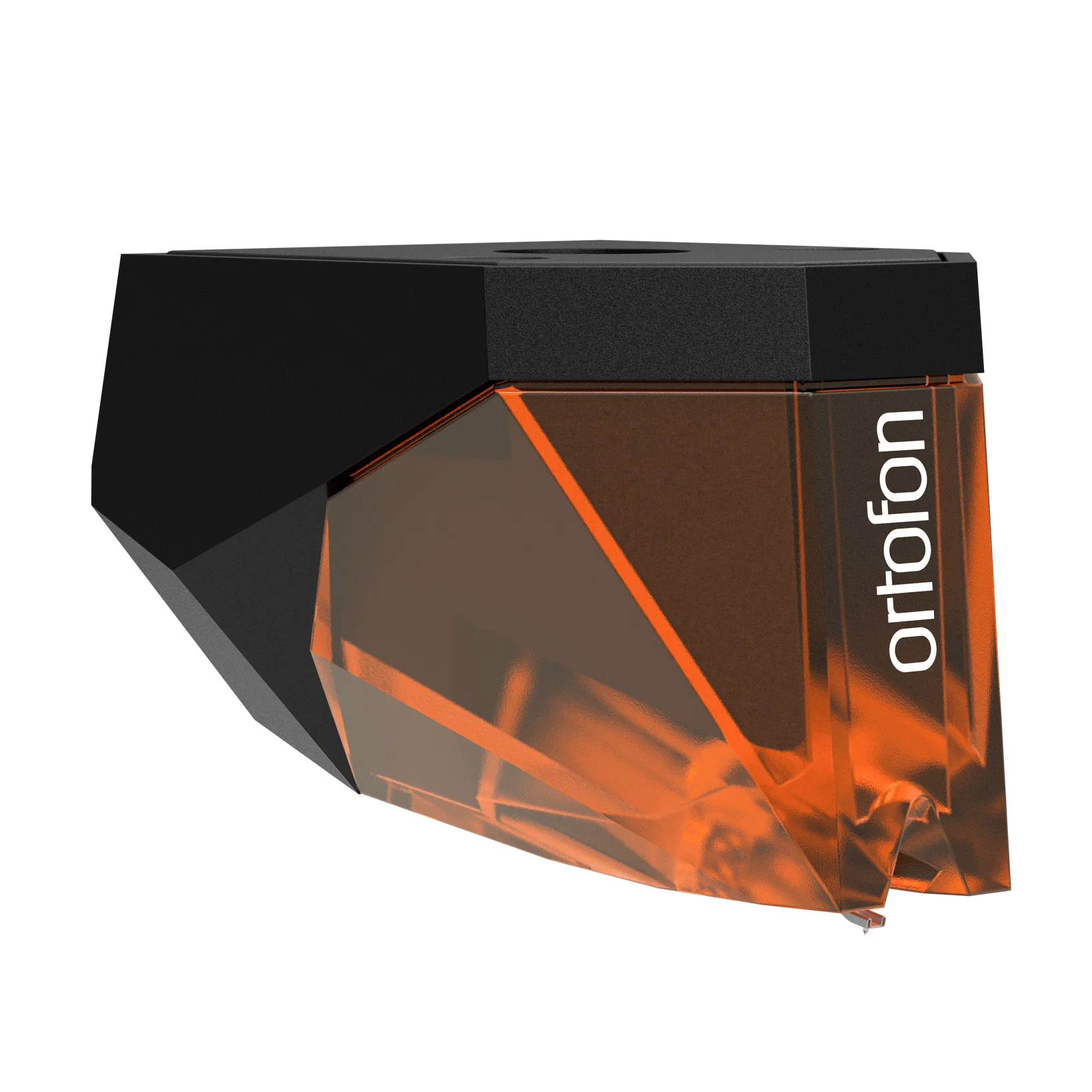

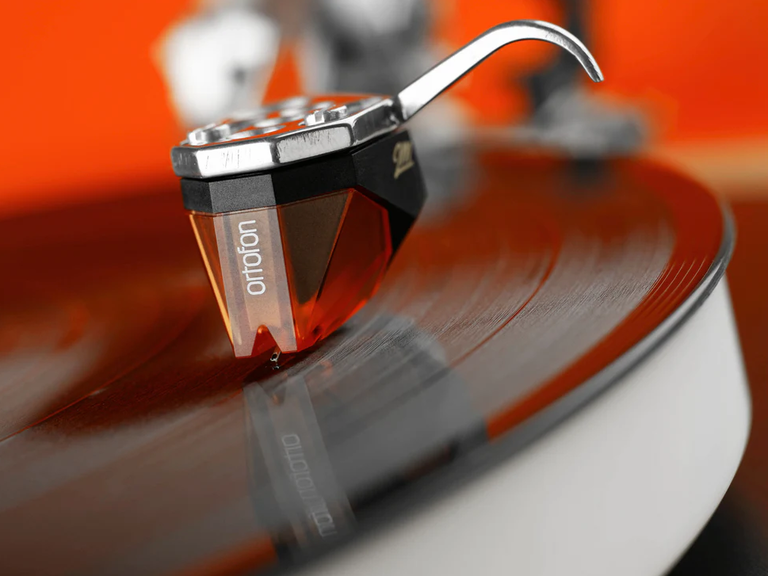

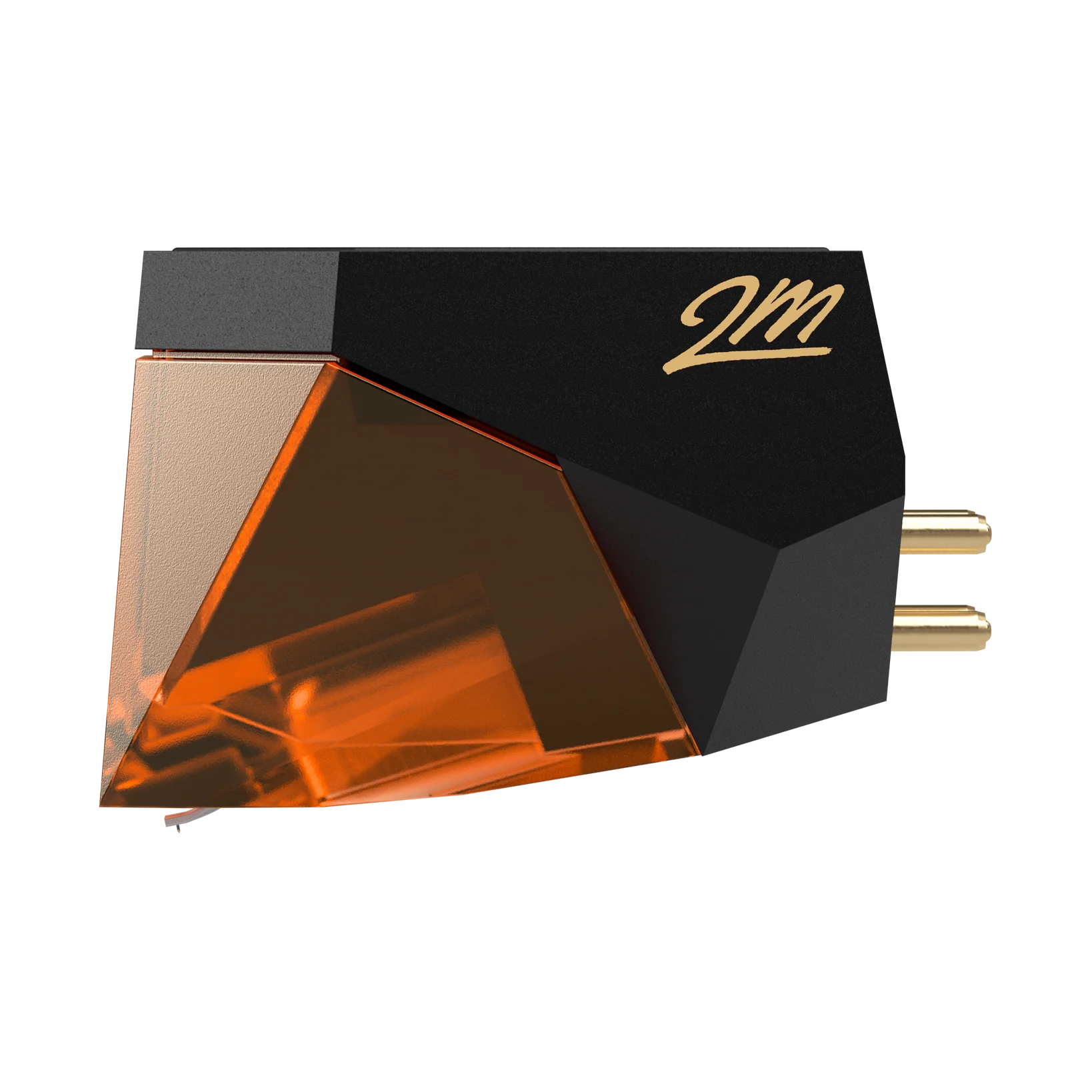

Moving up to the wonderful Bronze MM cartridge will not blow the budget, but will take your LP’s to a new level of detail that is hard to ignore.
| Cartridge Type | Moving Magnet (MM) |
| Stylus Profile | Nude Fine Line (r/R 8/40 µm) |
| Cantilever Material | Aluminum tube |
| Cartridge Weight | 7.2 g |
| Height (Stylus to Mounting Top) | 18.0 mm |
| Body Width | 18.5 mm |
| Body Length (Excluding Pins) | 24.0 mm |
| Total Length (Including Pins) | 27.5 mm |
| Mounting Center Distance | 12.7 mm (Standard 1/2″ mount) |
| Output Voltage (1 kHz, 5 cm/sec) | 5.0 mV |
| Frequency Response | 20 – 20,000 Hz (+2 / -0 dB) |
| Frequency Range (-3 dB) | 20 – 29,000 Hz |
| Channel Separation at 1 kHz | 26 dB |
| Channel Balance at 1 kHz | 1.0 dB |
| Tracking Ability at 315 Hz | 80 µm |
| Dynamic Lateral Compliance | 22 µm/mN |
| Tracking Force Range | 1.4 – 1.7 g (14 – 17 mN) |
| Recommended Tracking Force | 1.5 g (15 mN) |
| Tracking Angle | 20° |
| Internal Impedance (DC Resistance) | 1.2 kΩ |
| Internal Inductance | 630 mH |
| Recommended Load Resistance | 47 kΩ |
| Recommended Load Capacitance | 150 – 300 pF |
