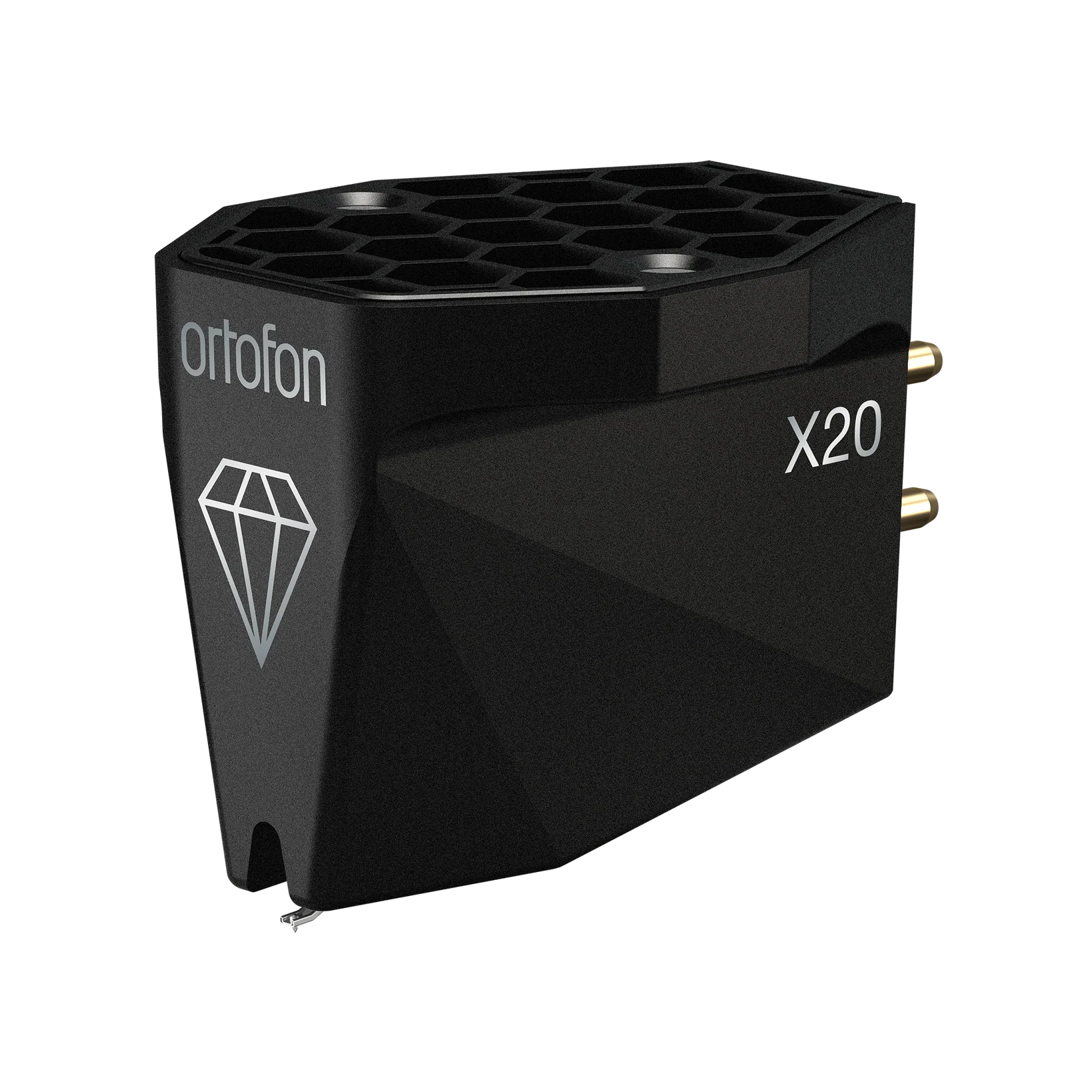

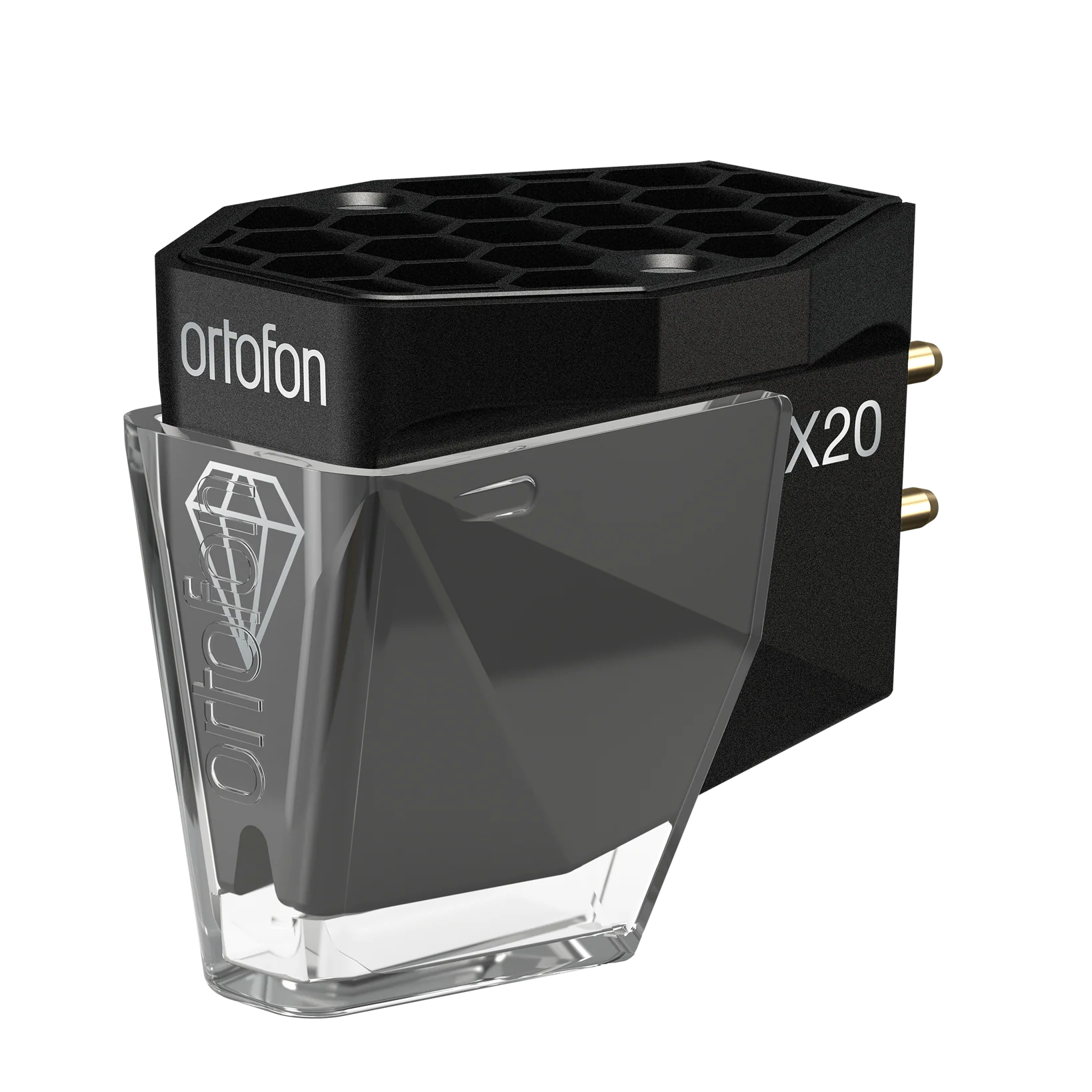

Ortofon Hi-Fi MC X20 Moving Coil Cartridge

$999.00

The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm.

Description

Experience the depth, Hear every detail.

At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.

Specifications

  • Channel balance at 1 kHz
    0.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.4 mV
  • Channel separation at 1 kHz
    25 dB
  • Frequency response 20 Hz - 20 kHz
    +/-1 dB
  • Compliance, dynamic, lateral
    15 μm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Nude Elliptical
  • Stylus tip radius
    r/R 8/18 μm
  • Stylus suspensions
    Ortofon exclusive
  • Coil system
    High-purity silver Coil wire
  • Tracking force, recommended
    2.0 grams
  • Internal impedance, DC resistance
    6 Ω
  • Coil wire material
    High-purity silver
  • Cartridge body material
    MIM Stainless Steel & Honeycomb Core Structure
  • Cartridge colour
    Black
  • Cartridge weight
    8.6 grams
  • Recommended load resistance
    > 50 Ω
