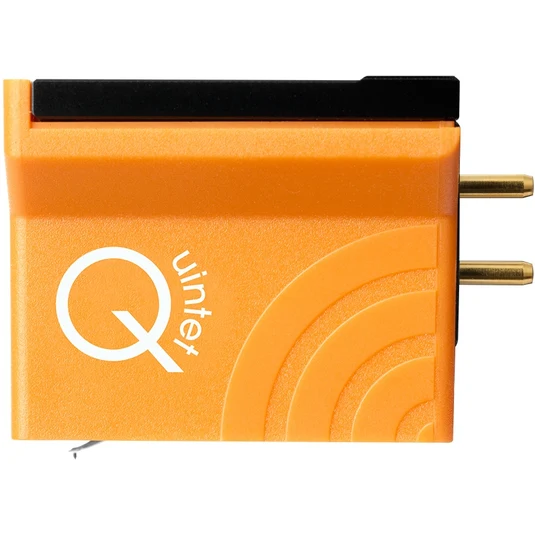

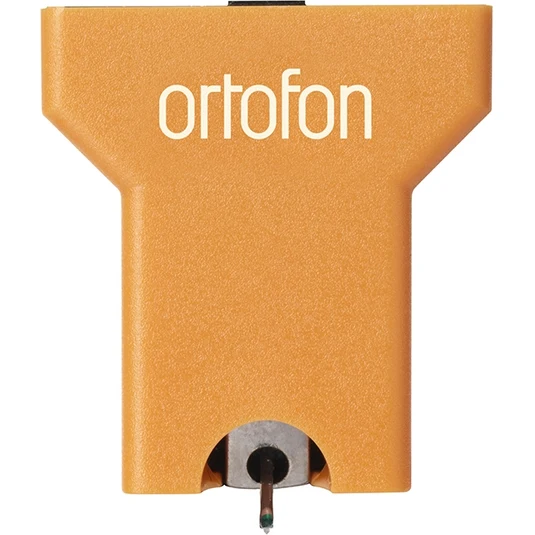

Ortofon Hi-Fi MC Quintet Bronze Moving Coil Cartridge

$1,369.00

Unlock the hidden potential of your vinyl record collection with the Ortofon Hi-Fi MC Quintet Bronze Moving Coil Cartridge. Designed for audiophiles who seek superior audio fidelity, this cartridge delivers a rich, detailed, and immersive listening experience.



Description

The Quintet Bronze moves into the higher league of the Quintets.

  • Fine Line Diamond Stylus: The MC Quintet Bronze features a nude Fine Line diamond stylus, known for its exceptional tracking ability and precision. This stylus shape ensures optimal contact with the record groove, providing clear, detailed, and accurate sound reproduction.
  • High-Fidelity Sound: Engineered for superior audio performance, the MC Quintet Bronze offers a balanced and dynamic sound signature, capturing the full range of your music with remarkable clarity and depth.
  • Versatile Compatibility: Designed with a standard mount, the MC Quintet Bronze is compatible with a wide range of turntables, making it easy to install and integrate into your audio system.
  • Low Output Voltage: With an output voltage of 0.3 mV, the MC Quintet Bronze requires a compatible phono stage or step-up transformer. This low output ensures minimal noise and maximum sound fidelity.
  • Durable Construction: Built with high-quality materials and precision engineering, the MC Quintet Bronze is designed for longevity and consistent performance, providing reliable audio quality for years to come.

Specifications

  • Channel balance at 1 kHz
    < 1.2 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.3 mV
  • Channel separation at 1 kHz
    > 23 dB
  • Frequency response 20 Hz - 20 kHz
    +/- 1.5 dB
  • Tracking ability at 315 Hz
    80 μm
  • Compliance, dynamic, lateral
    15 µm/mN
  • Stylus type
    Nude Fine Line
  • Stylus tip radius
    r/R 8/40 µm
  • Tracking force range
    2.1-2.5 g
  • Tracking force, recommended
    2.3 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    5 Ohm
  • Recommended load impedance
    > 20 Ohm
  • Coil wire material
    Pure 4-nines copper
  • Cartridge body material
    PC
  • Cartridge colour
    Bronze
  • Cartridge weight
    9 g
