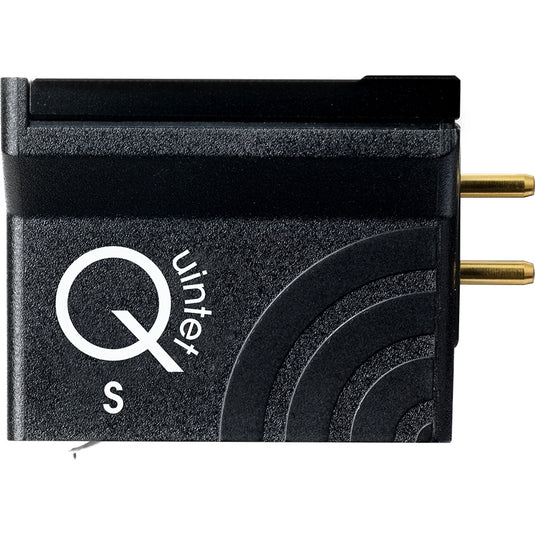

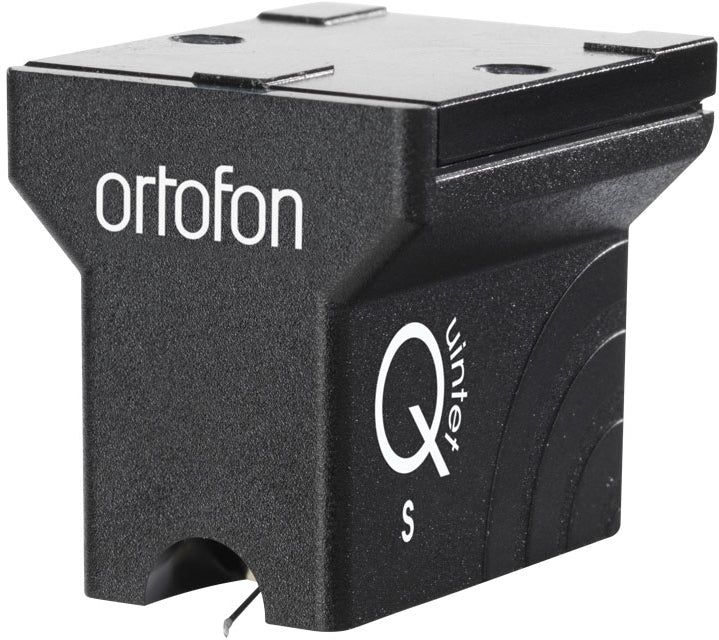

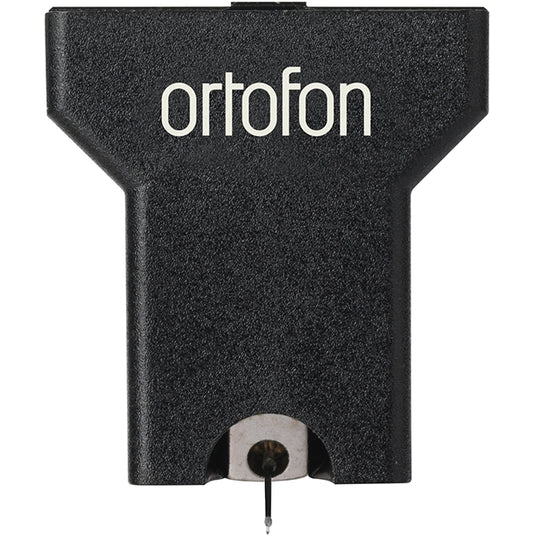

Ortofon Hi-Fi MC Quintet Black S Moving Coil Cartridge

$1,799.00

Experience the heights of vinyl playback with the Ortofon Hi-Fi MC Quintet Black S Moving Coil Cartridge. Designed for discerning audiophiles, this high-end moving coil cartridge delivers exceptional sound quality, clarity, and detail.

Description

  • Shibata Diamond Stylus: The MC Quintet Black S features a nude Shibata diamond, renowned for its superior tracking ability and precision. This stylus shape ensures that even the finest groove details are accurately traced, providing an unparalleled listening experience.
  • Exceptional Audio Fidelity: With its advanced engine and meticulous construction, the MC Quintet Black S offers a balanced and dynamic sound signature. The result is a wide soundstage, rich tonal depth, and remarkable clarity across all frequencies.
  • Versatile Compatibility: Designed with a standard mount, the MC Quintet Black S is compatible with a wide range of turntables, offering easy installation and flexibility in setup.
  • Low Output Voltage: With an output voltage of 0.3 mV, the MC Quintet Black S requires a compatible phono stage or step-up transformer. This low output ensures minimal noise and maximum sound fidelity.
  • Durable Construction: Built with high-quality materials and precision engineering, the MC Quintet Black S is designed for durability and consistent performance, providing reliable and long-lasting audio enjoyment.

Specifications

  • Channel balance at 1 kHz
    < 1.0 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.3 mV
  • Channel separation at 1 kHz
    > 23 dB
  • Frequency response 20 Hz - 20 kHz
    +/- 1.5 dB
  • Tracking ability at 315 Hz
    80 μm
  • Compliance, dynamic, lateral
    15 µm/mN
  • Stylus type
    Nude Shibata on Sapphire cantilever
  • Stylus tip radius
    r/R 6/50 µm
  • Tracking force range
    2.1-2.5 g
  • Tracking force, recommended
    2.3 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    5 Ohm
  • Recommended load impedance
    > 20 Ohm
  • Coil wire material
    Aucurum
  • Cartridge body material
    PC
  • Cartridge colour
    Black
  • Cartridge weight
    9 g
