Ortofon Hi-Fi MC Cadenza Red Moving Coil Cartridge

$2,749.00

The sound picture of the Cadenza Red is relaxed, homogeneous, and moderately dynamic and has great space and depth in the stereo image.

Description

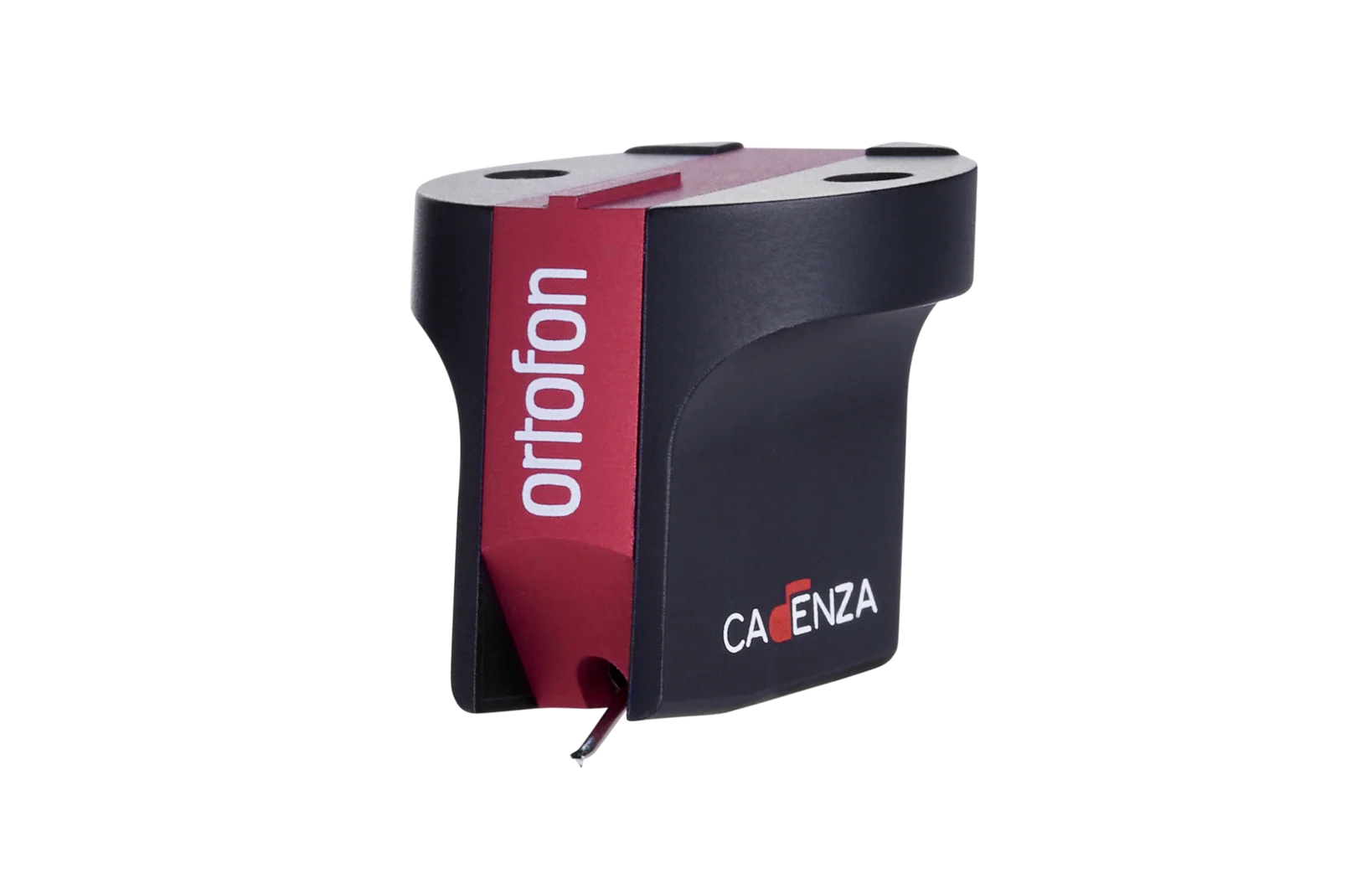

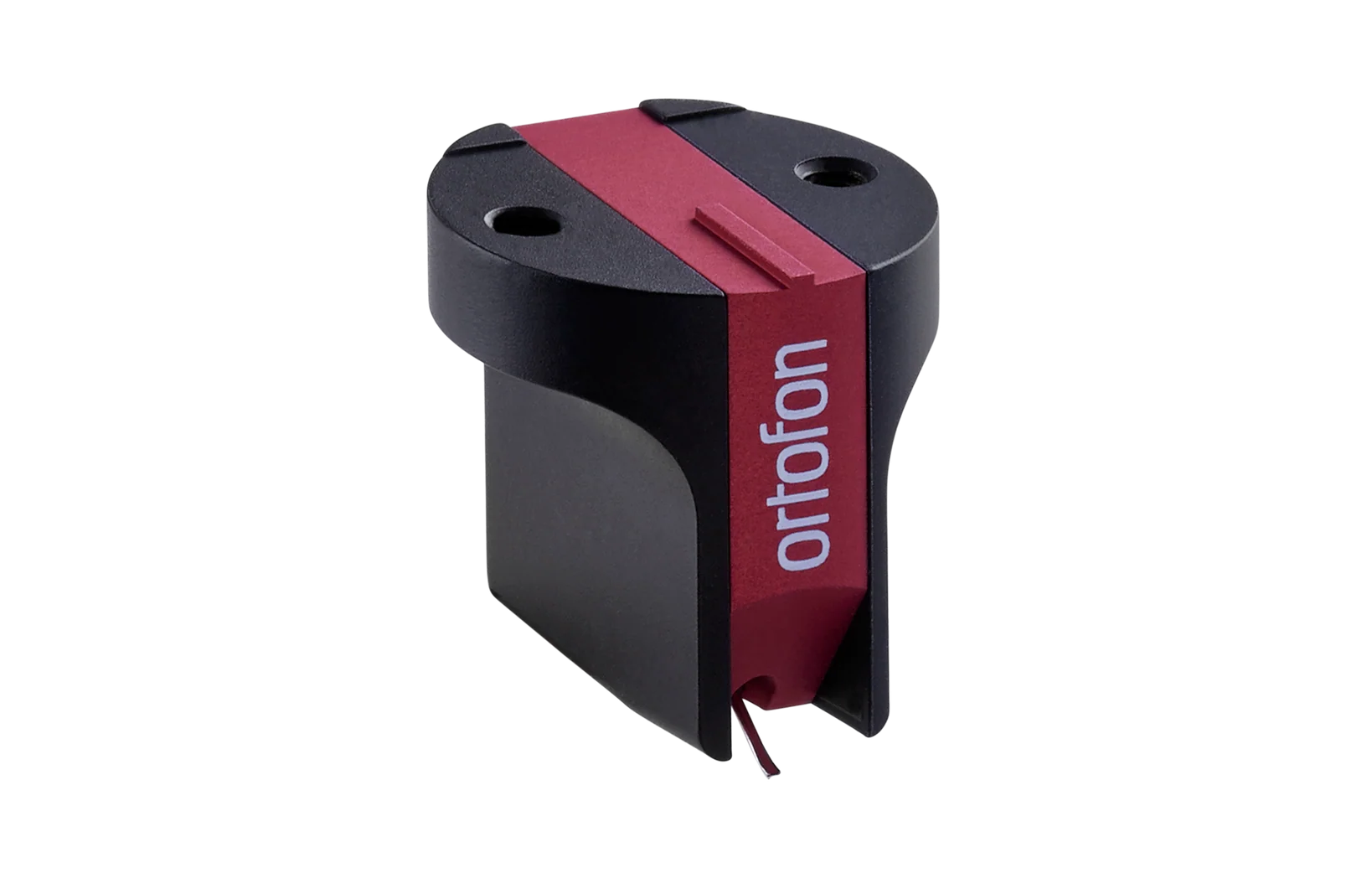

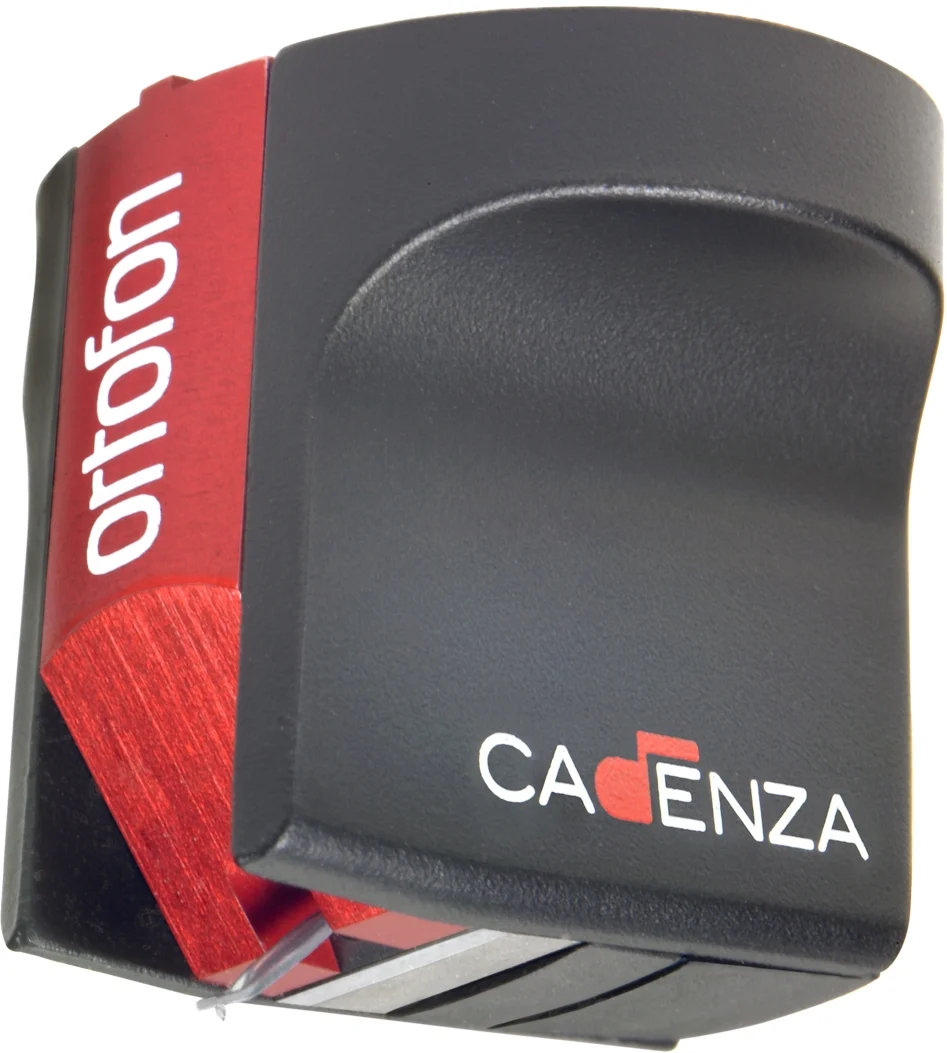

MC Cadenza Red

Cadenza, derived from the Italian word “cadence,” designates a segment within a musical performance, typically a concert, where the orchestra ceases its play, allowing the soloist to perform independently, unrestrained by a strict rhythmic pattern.

This solo passage, known to as a cadenza typically showcases the most ornate and virtuosic passage performed by the solo instrument throughout the composition. As the cadenza concludes, the orchestra resumes its presence, often bringing the movement to its culmination.

The Cadenza Red model is using a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm.

The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance.

Specifications

  • Channel balance at 1 kHz
    < 1,5 dB
  • Output voltage at 1 kHz, 5cm/sec
    450 μV
  • Channel separation at 1 kHz
    > 23 dB
  • Frequency response 20 Hz - 20 kHz
    +3/-1 dB
  • Tracking ability at 315 Hz
    80 μm
  • Compliance, dynamic, lateral
    12 μm/mN
  • Cantilever material
    Aluminium Cantilever
  • Stylus type
    Nude fine line Diamond
  • Stylus tip radius
    r/R 8/40
  • Coil system
    High-Purity Silver Coil Wire
  • Tracking force range
    2,2-2,7 g
  • Tracking force, recommended
    2,5 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    5 Ohm
  • Recommended load impedance
    50-500 Ohm
  • Coil wire material
    High-Purity Silver Coil Wire
  • Cartridge body material
    Aluminium Stainless steel
  • Cartridge colour
    Red/Black
  • Cartridge weight
    10.7 g
