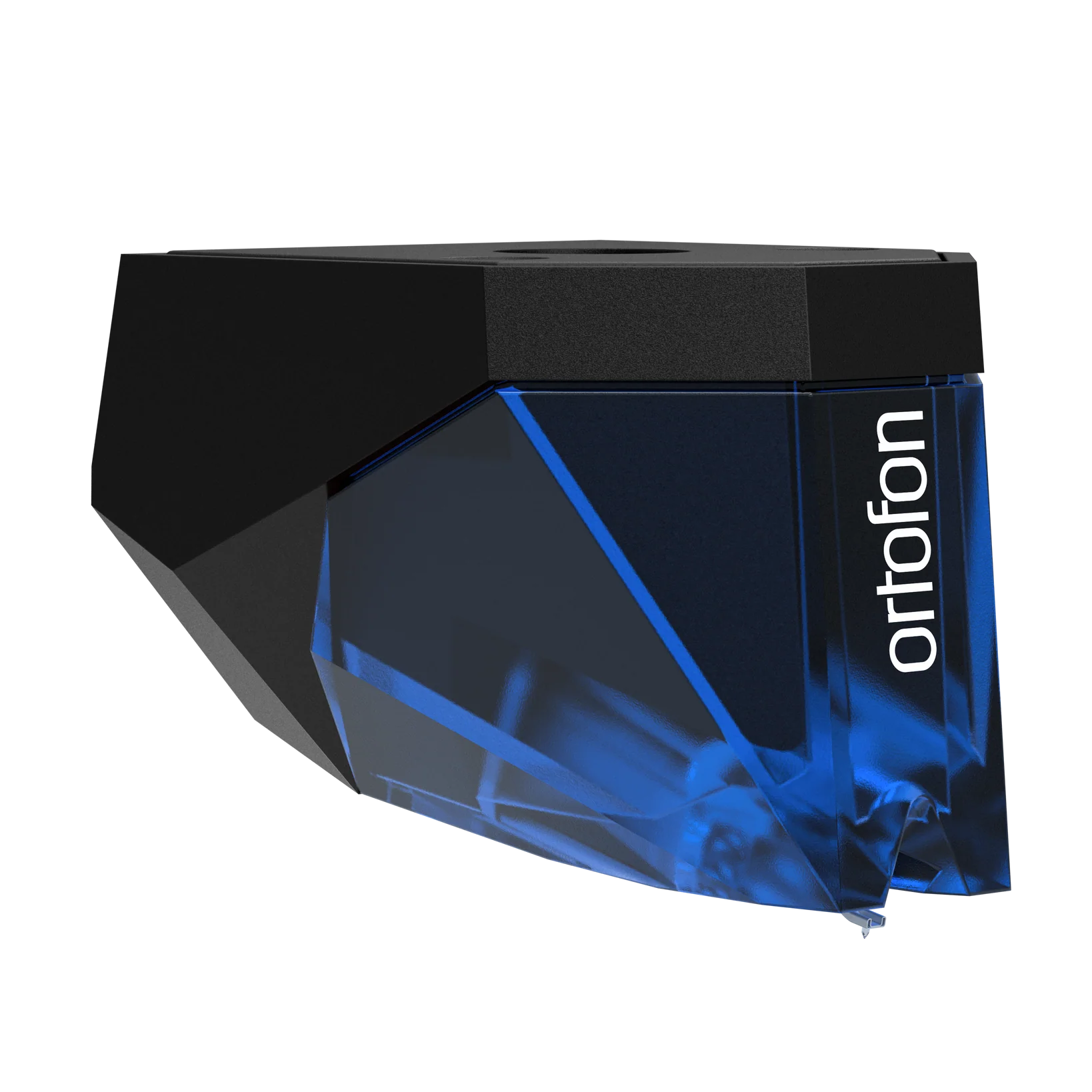

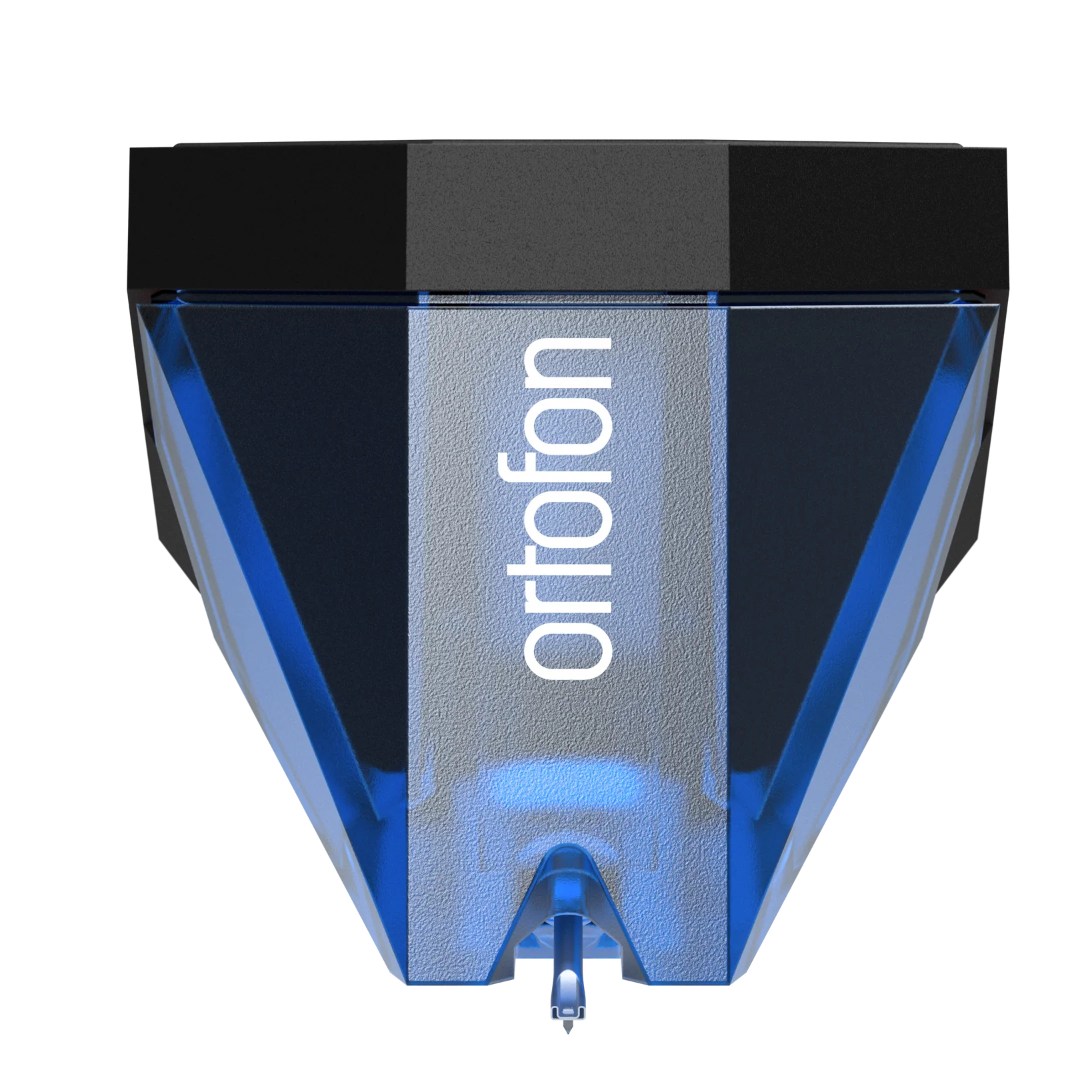

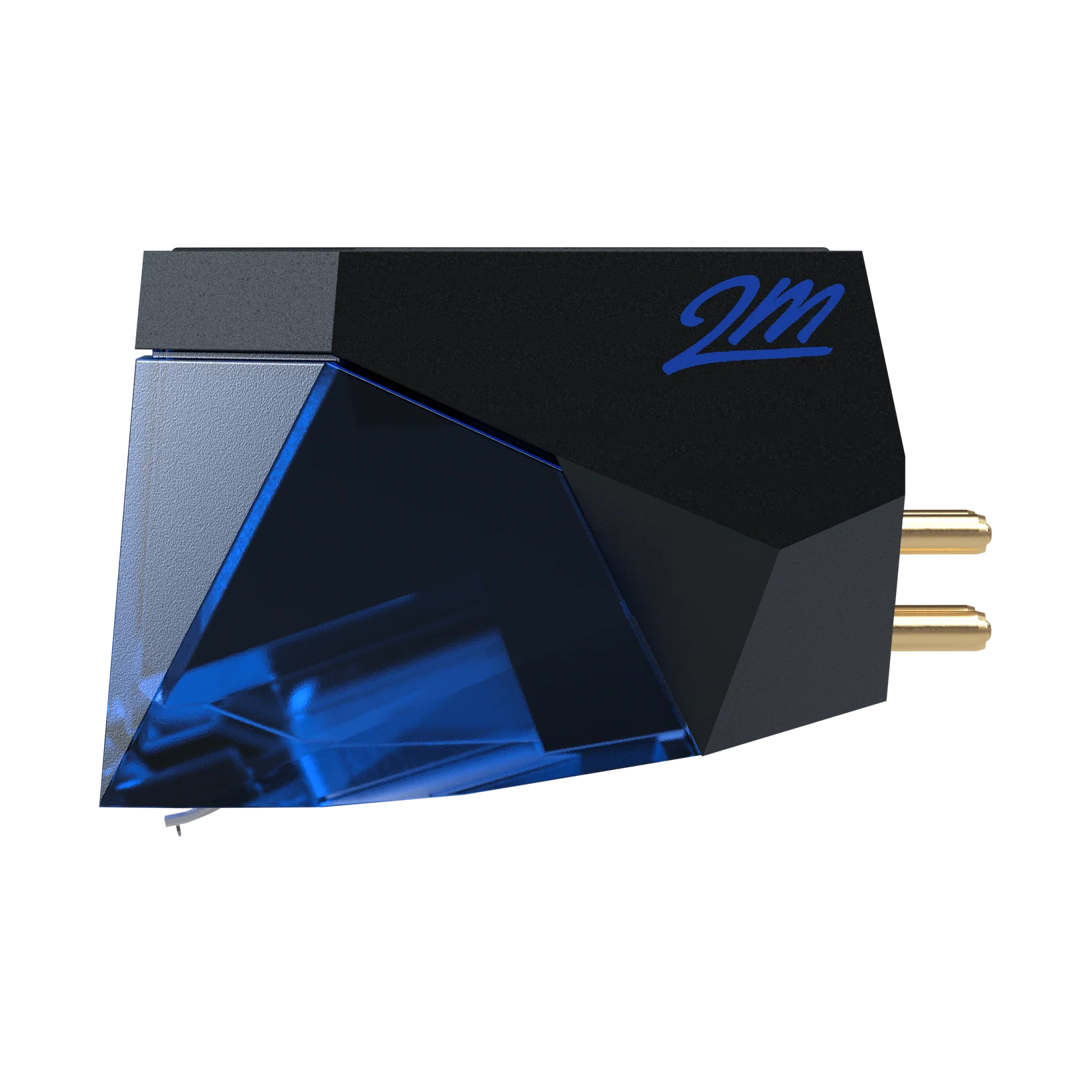

Ortofon Hi-Fi 2M Blue Moving Magnet Cartridge

Price range: $429.00 through $439.00

For next level authenticity

The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue you get serious about listening to vinyl.

SKU: 2M Blue Categories: , Tags: , Brand:

Description

Features:
The 2M Blue features a Nude Elliptical diamond and split pole pins with a copper wire.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.



2M Blue Maintenance Set included:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7

2M Blue Verso Maintenance Set included:

1 x Stylus brush
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6

Additional information

Variation

Standard Mount, Verso Mount

Specifications

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Channel separation at 1 kHz
    25 dB
  • Frequency response 20 Hz - 20 kHz
    20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315 Hz
    80 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Nude Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Coil system
    Quad-coils with split pole pins and OFC Coil wire
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.3 kOhm
  • Coil wire material
    OFC Wire
  • Cartridge body material
    Polymer and aluminum
  • Cartridge colour
    Black/Blue
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    700 mH
  • Stylus colour
    Blue
  • Recommended load capacitance
    150-300 pF
