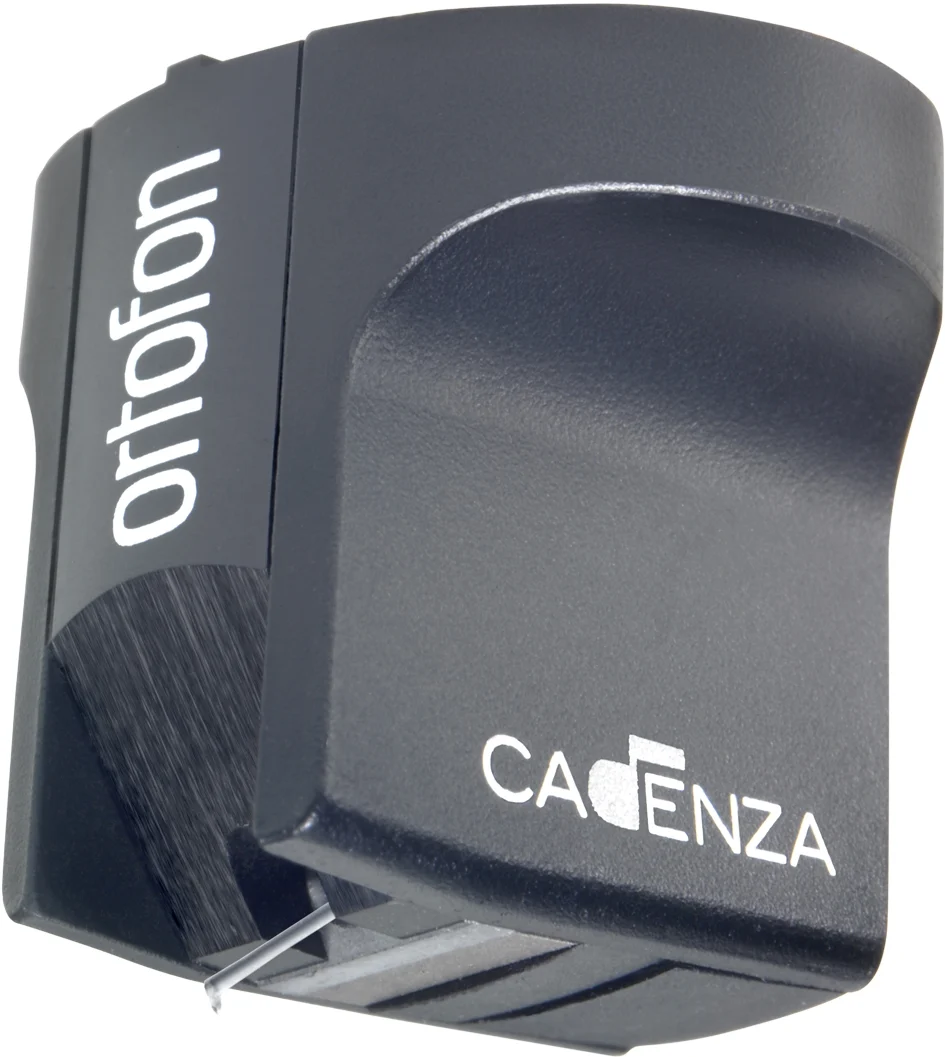

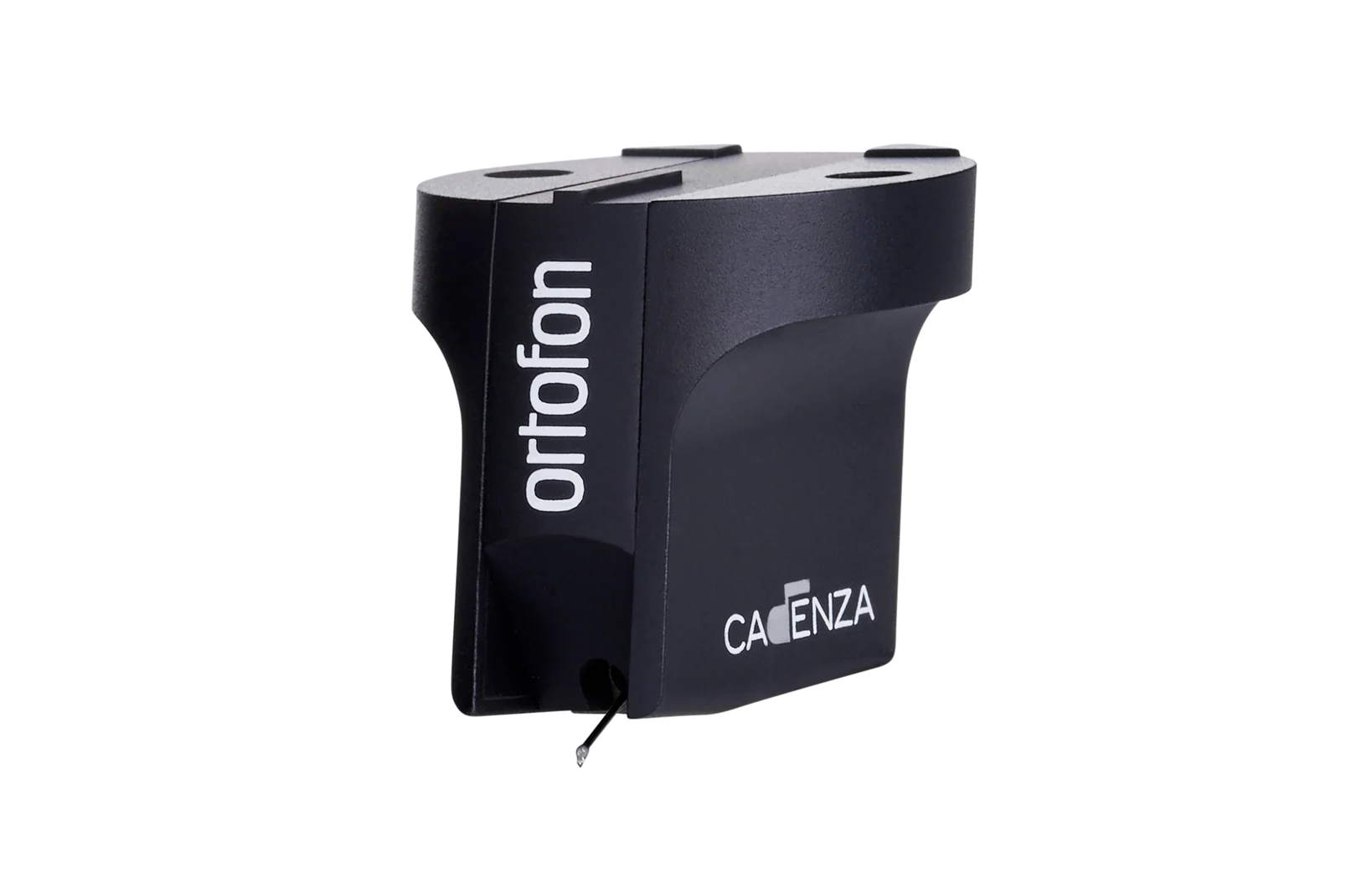

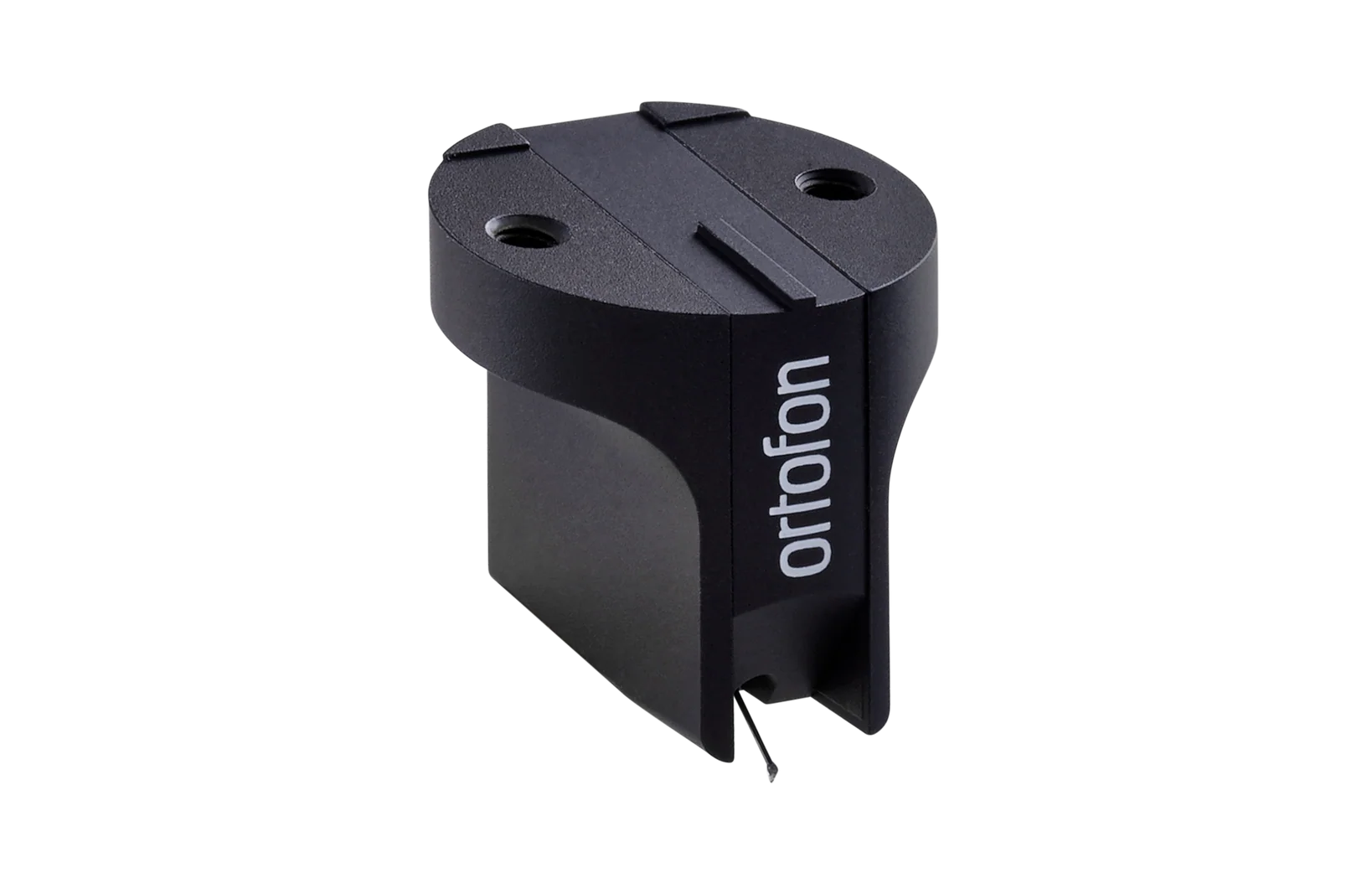

Ortofon Hi-Fi MC Cadenza Black Moving Coil Cartridge

$6,199.00

The Ortofon MC Cadenza Black is a top-tier moving coil phono cartridge that delivers exceptional detail, a wide soundstage, and tonal neutrality.

Description

The Cadenza Black model is using a Nude Shibata stylus with a boron cantilever. The effective mass of the stylus and cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminium.

It also uses the WRD/Wide Range Damping-system applied for MC Windfeld, MC A90, MC Anna, Xpression), controlling the high and low frequency damping separately.

The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

Cadenza Black is optimized for an amazing tonal neutrality, dynamics and purity of sound. It is high performing on areas like detail, consistency and sound staging.

Specifications

  • Channel balance at 1 kHz
    < 0,8 dB
  • Output voltage at 1 kHz, 5cm/sec
    330 μV
  • Channel separation at 1 kHz
    > 27 dB
  • Frequency response 20 Hz - 20 kHz
    +1,5/0
  • Tracking ability at 315 Hz
    90 μm
  • Compliance, dynamic, lateral
    16 μm/mN
  • Cantilever material
    Boron Cantilever
  • Stylus type
    Nude Shibata Diamond
  • Stylus tip radius
    r/R 6/50
  • Coil system
    Aucurum Coil Wire
  • Tracking force range
    2,0-2,5 g
  • Tracking force, recommended
    2.3 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    5 Ohm
  • Recommended load impedance
    >10 Ohm
  • Coil wire material
    Aucurum Coil Wire
  • Cartridge body material
    Aluminium Stainless steel
  • Cartridge colour
    Black/Black
  • Cartridge weight
    10.7 g
