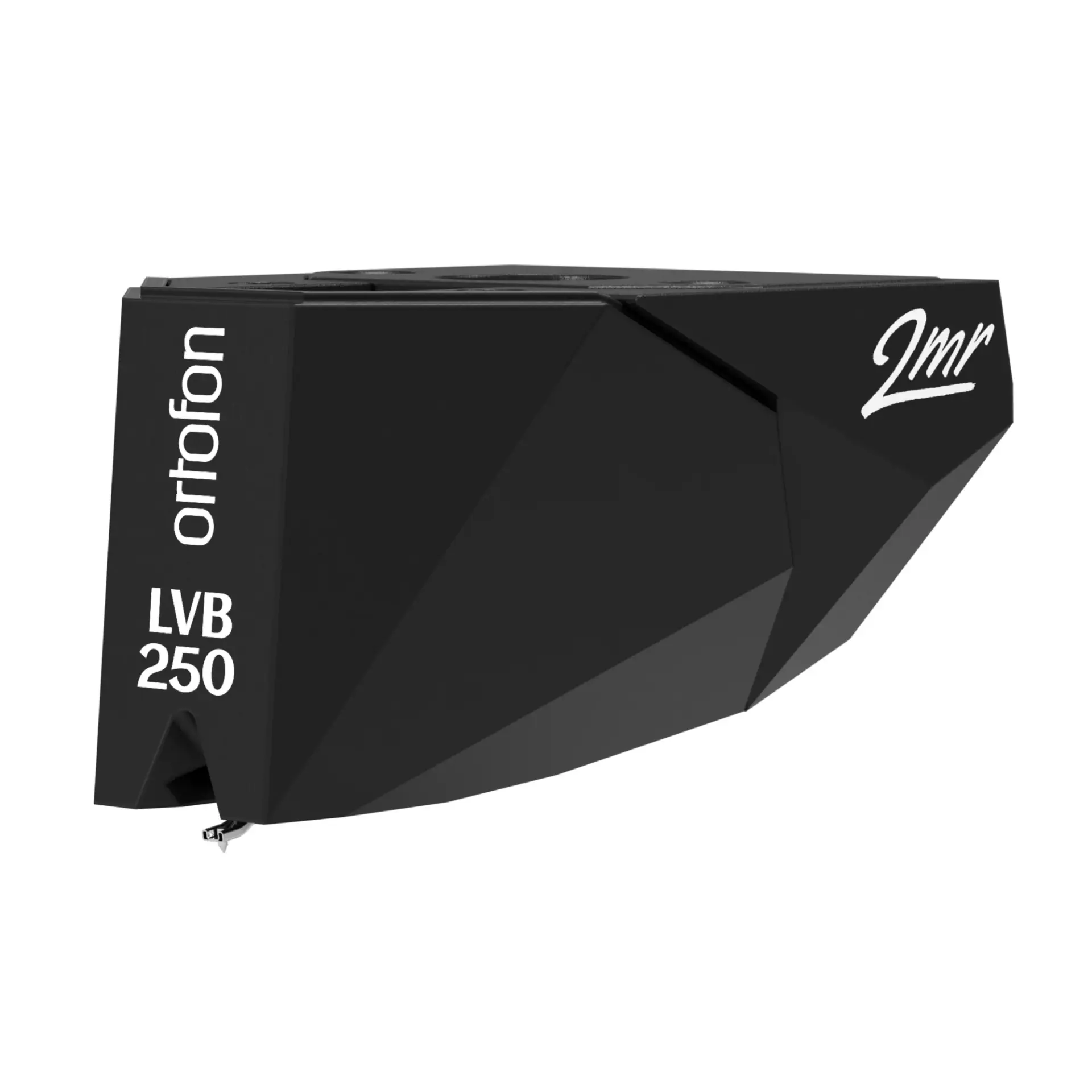

Ortofon Hi-Fi 2MR Black LVB 250 Slimline Moving Magnet Cartridge (Suits Most Turntables)

$2,099.00

Just a truly splendid cartridge, has to be really heard to be appreciated. The 2MR Black LVB 250 upgrades the great build of the 2M Black with a boron cantilever and our very own Nano Tube suspension system.

Description

Accuracy level

The 2M Black is an amazing cartridge and, by many, considered the ultimate in moving magnet. So, why would we attempt to create something even better? Because perfection runs in our blood. The 2MR Black LVB 250 upgrades the great build of the 2M Black, and the result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.



Stylus

The 2M Black LVB 250 upgrades the great build of the 2M Black with a Nude Shibata diamond on a boron cantilever. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness. The Nude Shibata stylus’ slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.



Rubber suspension

The 2M Black LVB 250 features our very own Nano Tube suspension system. The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes’ (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.



Compatibility

The Ortofon 2MR Black LVB 250 features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

Specifications

Channel balance at 1 kHz
  • < 1 dB
Output voltage at 1 kHz, 5cm/sec
  • 5 mV
Channel separation at 1 kHz
  • > 27 dB
Frequency response 20 Hz - 20 kHz
  • + 2 / - 1 dB
Tracking ability at 315 Hz
  • 80 µm
Compliance, dynamic, lateral
  • 22 µm/mN
Cantilever material
  • Boron
Stylus type
  • Nude Shibata diamond
Stylus tip radius
  • r/R 6/50 µm
Tracking force range
  • 1.5-1.7 g (15-17 mN)
Tracking force, recommended
  • 1.6 g (16 mN)
Tracking angle
  • 20°
Internal impedance, DC resistance
  • 1.2 kOhm
Cartridge colour
  • Black
Cartridge weight
  • 6 g
Recommended load resistance
  • 47 kOhm
Internal inductance
  • 630 mH
Stylus colour
  • Black
Recommended load capacitance
  • 47 kOhm
Replacement stylus
  • Stylus 2M Black LVB 250
