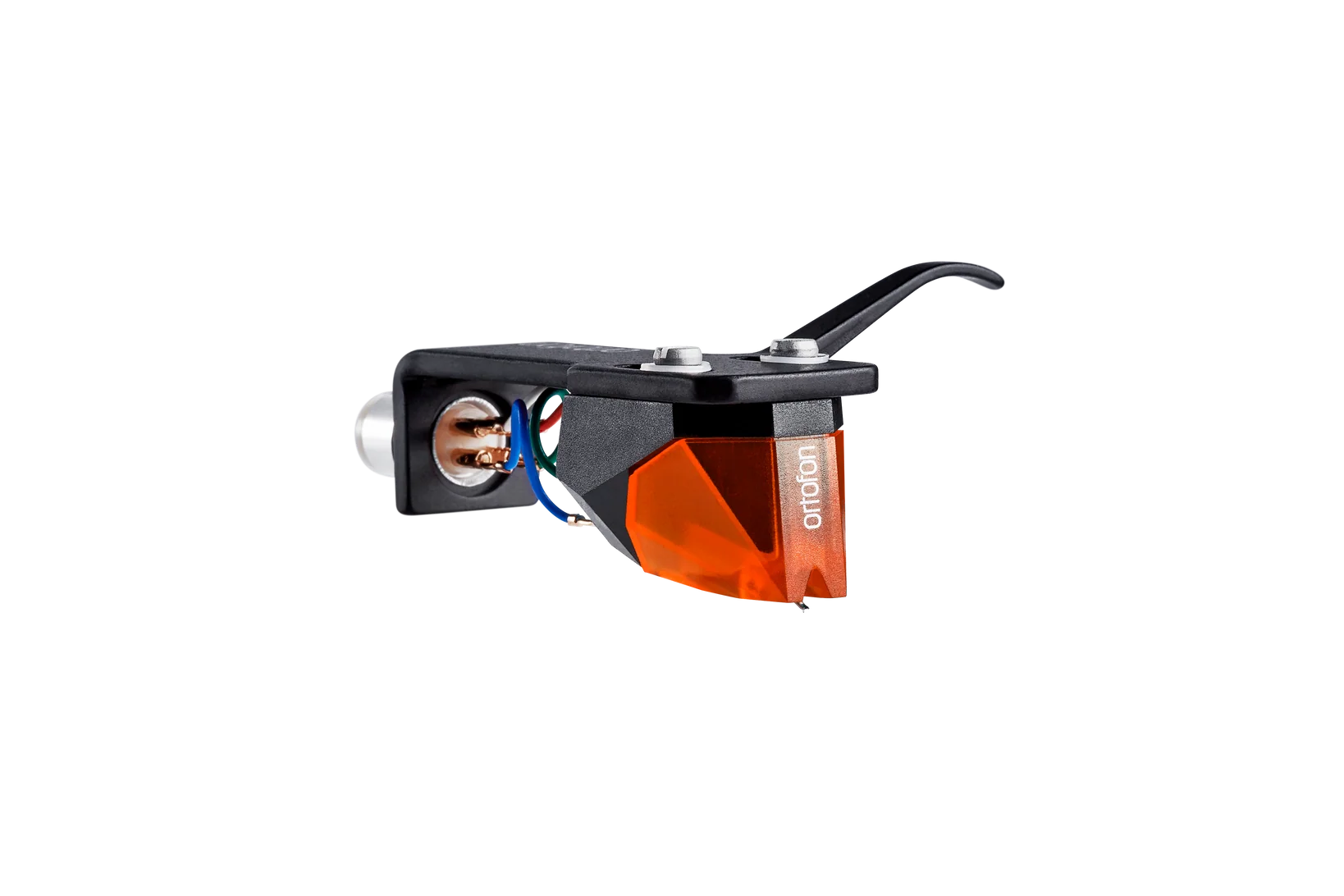

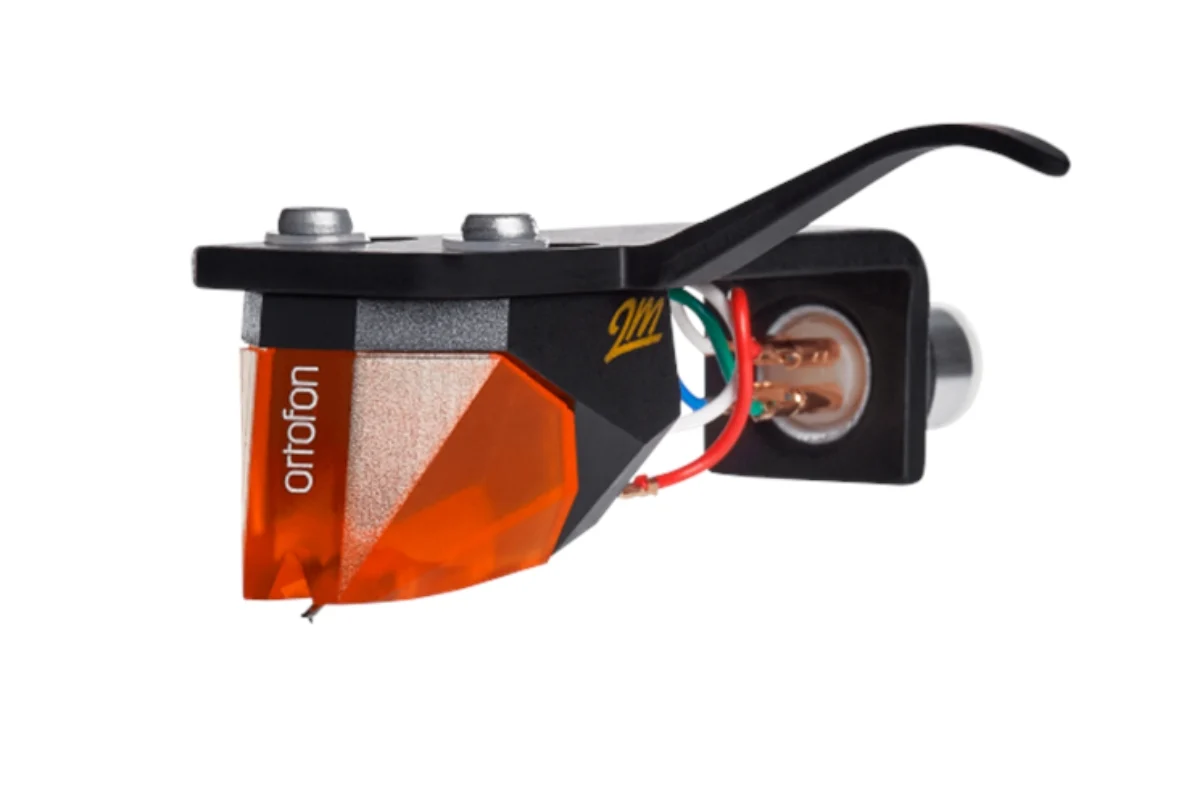

Ortofon Hi-Fi 2M Bronze Pre-Mounted on SH-4 Headshell
Ortofon Hi-Fi 2M Bronze Pre-Mounted on SH-4 Headshell - Image 2
Ortofon Hi-Fi 2M Bronze Pre-Mounted on SH-4 Headshell - Image 3

Ortofon Hi-Fi 2M Bronze Pre-Mounted on SH-4 Headshell

$969.00

The 2M Bronze is the flagship of the series and it lives up to this with flying colors. You can hear every little detail in the music from every part of the spectrum, just the way the artist wanted you to.

Categories: , Tags: , Brand:

Description

SH-4 Headshell

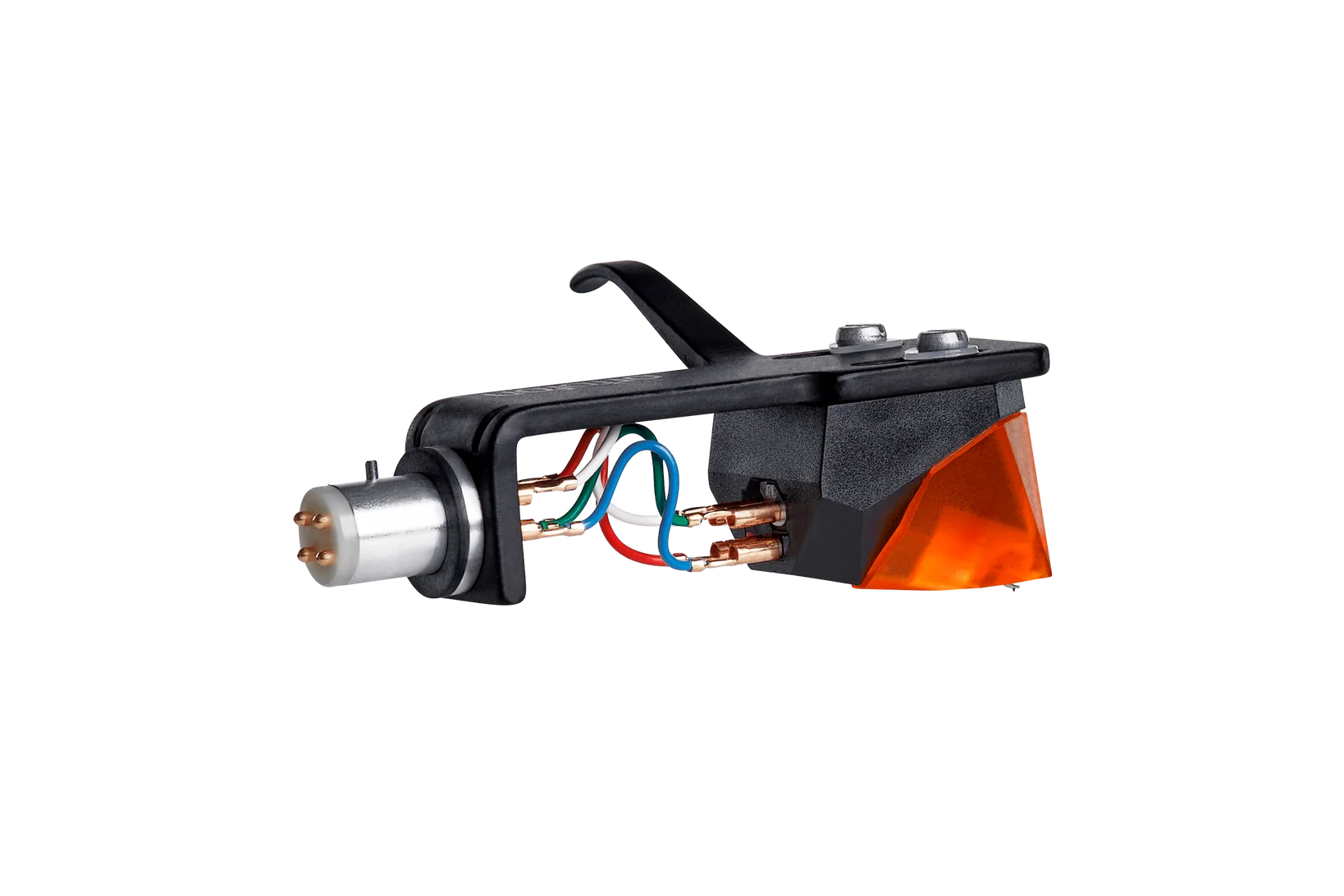

The SH-4 headshell has an ergonomic design with a long finger that is easy to pick-up. The big finger grip and shorter construction makes movement and placement of the headshell easy and visible. The wire terminals on the rear side are also gold plated for better signal transmission.
Specifications…



Specifications

  • Output voltage at 1000 Hz, 5cm/sec. - 5 mV
  • Channel balance at 1 kHz - 1 dB
  • Channel separation at 1 kHz - 26 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency response - 20-20.000 + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force - 80 µm
  • Compliance, dynamic, lateral - 22 µm/mN
  • Stylus type - Nude Fine Line
  • Stylus tip radius - r/R 8/40 µm
  • Tracking force range - 1.4-1.7 g (14-17 mN)
  • Tracking force, recommended - 1.5 g (15 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1.2 kOhm
  • Internal inductance - 630 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-300 pF
  • Cartridge colour, body/stylus - Black/Bronze
  • Cartridge weight - 7.2 g
  • Premounted cartridge weight - 16.7 g
