Description
Recommended for the following cartridges: Super OM 10, OM 10, OMP(p-mount) 10, OMB(Bulk) 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, and LMA 12.
Products

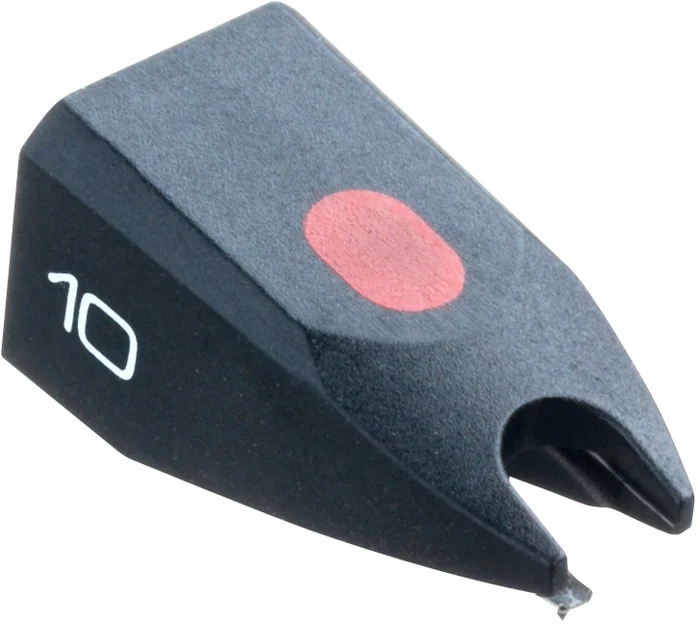

Ortofon Hi-Fi 10 Replacement Stylus
$125.00
Perfect for when a simple solution is asked for.
Specifications
Frequency range | 20-24,000 Hz
Frequency response | 20-20,000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force | 70 µm
Compliance, dynamic, lateral | 25 µm/mN
Stylus type | Elliptical
Stylus tip radius | r/R 8/18 µm
Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
Tracking force (recommended) | 1.5 g (15 mN)
Tracking angle | 20°
Stylus colour | Black
