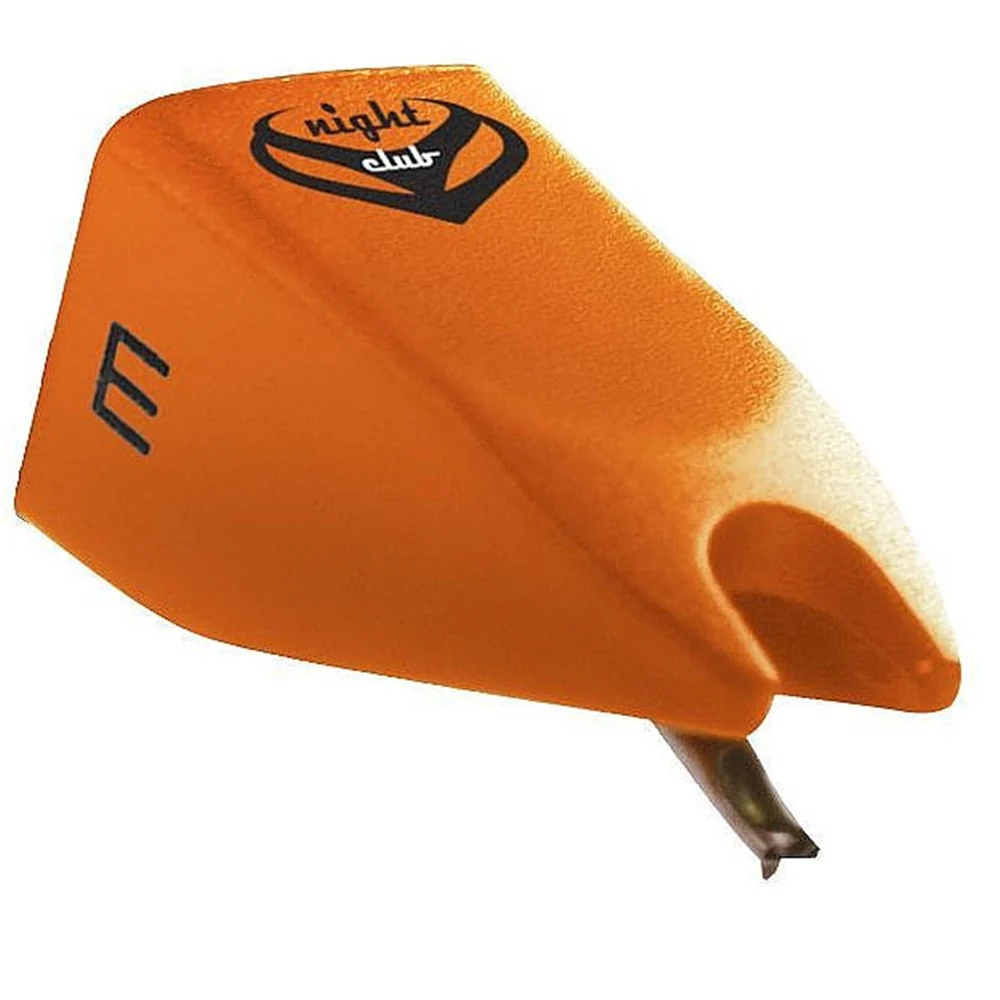

Ortofon DJ Nightclub MKII Replacement Stylus

Ortofon DJ Nightclub MKII Replacement Stylus

$155.00

Following in the footsteps of the legendary Nightclub series, the re-engineered Nightclub MkII boasts numerous sonic improvements in both club and studio settings.

Categories: , Tag: Brand:

Description

Superb sound quality!

Following in the footsteps of the legendary Nightclub series, the re-engineered Nightclub MkII offers increased output voltage for powerful, energetic sound and enhanced performance from integrated phono pre amps such as the ones found in DJ mixers.

Club DJ and studio workers believe the Nightclub MkII to be an absolute high-end cartridge. It is indeed a no-nonsense performer with fascinating musical resources. Its output is superb with a frequency response rating high enough to compare Nightclub MkII to any audiophile cartridge.

Recommended for frequent club use!

Specifications

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    8 mV
  • Channel separation at 1 kHz
    23 dB
  • Frequency response 20 Hz - 20 kHz
    +/- 1.5 dB
  • Tracking ability at 315 Hz
    80 μm
  • Compliance, dynamic, lateral
    20 μm/m N
  • Stylus type
    Special Elliptical
  • Stylus tip radius
    r/R 13/25 μm
  • Tracking force range
    2.0-5.0 g (20-50 mN)
  • Tracking force, recommended
    3.0 g (30 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.000 Ohm
  • Cartridge weight
    18.5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    580 mH
  • Recommended load capacitance
    200-600 pF
