Rotel RA-1592MKII Integrated Amplifier

$4,999.00

Whether you are a seasoned audiophile or a casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips, accessible via streaming, digital mediums, classic vinyl and more.

SKU: N/A Category: Tags: , , , Brand:

Description

Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.

The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimisation of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.

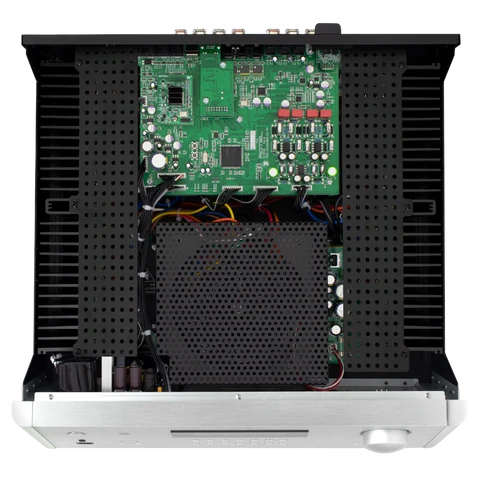

Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.

The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.

The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

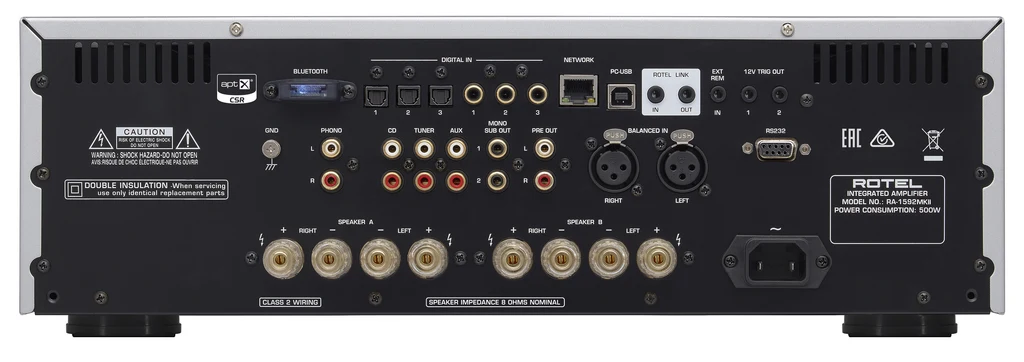

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.

Convenience, performance and value – the RA-1592MKII delivers.

Additional information

Colour

Black, Silver

Specifications

Continuous Power Output: 200W/Ch (All channels driven, 8Ω) Total Harmonic Distortion (THD): (20Hz–20kHz) < 0.008% FREQUENCY RESPONSE Line Level Inputs: 10Hz – 100kHz ±0.5dB Digital Inputs: 10Hz – 90kHz ±2dB Phono Input: 20Hz – 20kHz ±0.5dB S/N RATIO (IHF "A" Weighted) Line Level Inputs: 103dB Digital Inputs: 102dB Phono Input: 80dB DAMPING FACTOR: 600 INPUT SENSITIVITY Line Level Inputs (RCA): 340mV Line Level Inputs (XLR): 540mV Phono Input (MM): 5.2mV INPUT IMPEDANCE Line Level Inputs (RCA): 100kΩ Line Level Inputs (XLR): 100kΩ Digital Inputs: 75Ω Phono Input (MM): 47kΩ INPUT OVERLOAD Line Level Inputs (RCA): 3.5V Line Level Inputs (XLR): 5.5V Phono Input: 52mV PREOUT LEVEL: 1.9V OUTPUT IMPEDANCE: 100Ω TONE CONTROLS: ±12dB at 100Hz / 10kHz COAX/OPTICAL DIGITAL INPUT SIGNALS: LPCM (Up to 24-bit/192kHz) PC-USB USB Audio Class 1 (up to 24-bit /96 k Hz) USB Audio Class 2 (up to 32-bit/384 k Hz) DSD and DoP support MQA and MQA Studio (up to 24-bit / 384k Hz ) DIMENSIONS (W × H × D): 431 × 144 × 425mm FRONT PANEL HEIGHT: 3U / 132.6mm (5.25") POWER REQUIREMENTS: 230V, 50Hz POWER CONSUMPTION: 500W STANDBY POWER CONSUMPTION: <0.5W NET WEIGHT: 17.63Kg Warranty: 2yrs
