Description

The Ultimate in Rega Performance

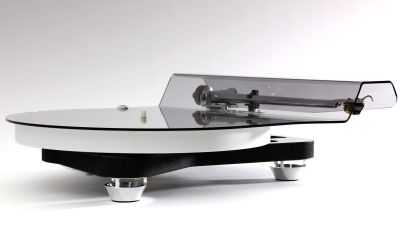

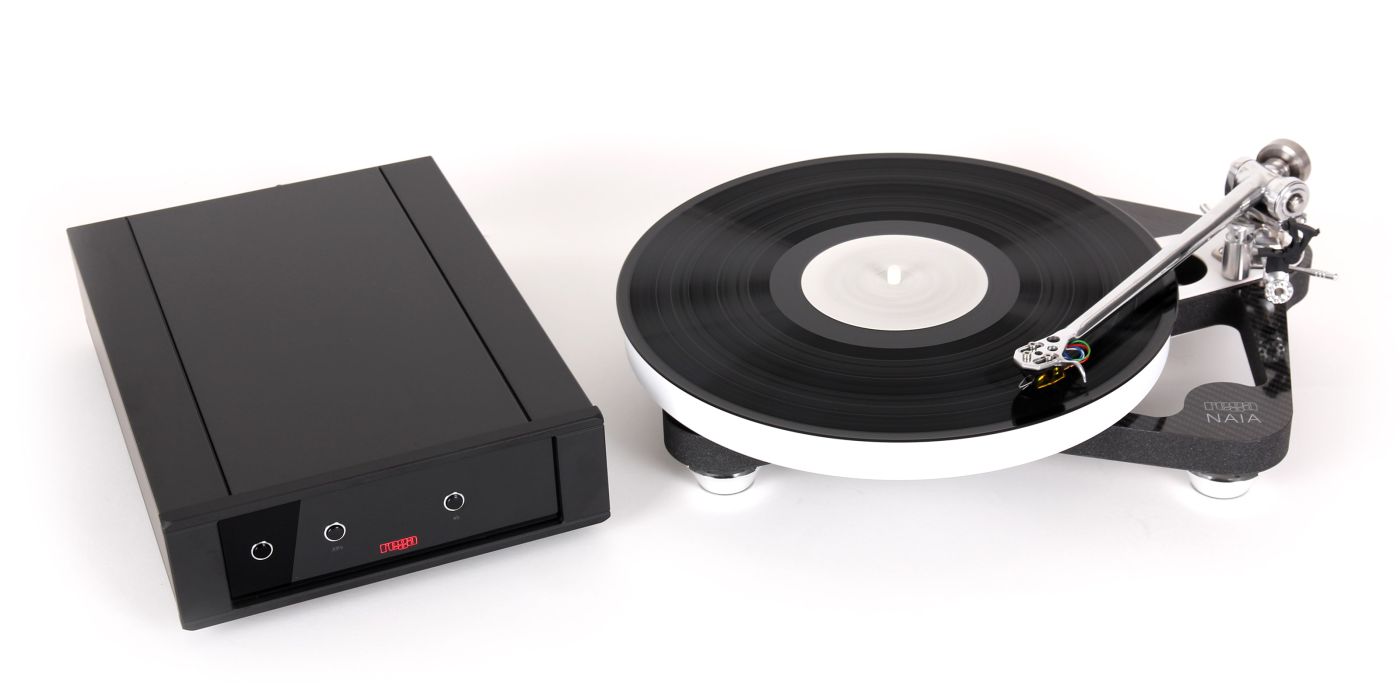

The Naia takes our pioneering low mass high rigidity plinth technology to the next level by using a Graphene impregnated carbon fibre skeletal plinth with Tancast 8 foam core. This ultra rigid structure is then strengthened further using two ceramic aluminium oxide braces, the same material used to create the redesigned, resonance controlled ceramic platter with improved flywheel effect and complex profile.

• Graphene impregnated Carbon Fibre skeletal plinth with Tancast 8 foam core
• ZTA Zirconium toughened alumina (ceramic) central bearing
• RB titanium tonearm: One piece titanium vertical bearing and Titanium vertical spindle assembly
• Tungsten balance weight shaft and weight
• Ceramic top and bottom braces

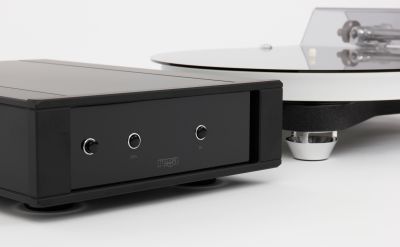

• Reference advanced fully adjustable power supply
• Resonance controlled ceramic platter with improved flywheel effect and complex profile
• Low mass skeletal aluminium feet
• Triple Reference drive belts for improved stability and drive characteristics.
• Rega Aphelion 2 MC factory fitted (optional)
• Lifetime warranty against manufacture defects

• RB TITANIUM TONEARM

  The RB Titanium tonearm is the most advanced and accurate production tonearm we have ever released. The entire tonearm structure is designed to have the minimum of mechanical joints whilst using the stiffest materials in all critical areas.  The RB Titanium achieves near frictionless movement horizontally and vertically whilst having no measurable free play in the bearing assemblies. The RB Titanium uses a new one-piece titanium vertical bearing housing and titanium vertical spindle assembly. The recommended Rega Aphelion 2 MC will be mounted upon our unique hand-polished aluminium single piece arm tube to keep mass as low as possible. The design is completed with a Tungsten balance weight shaft and balance weight.

  GRAPHENE IMPREGNATED CARBON FIBRE PLINTH

  In order to achieve the ultimate balance between low mass and extreme rigidity, Rega has pioneered the use of graphene impregnated carbon and a Tancast 8 polyurethane foam core. Both materials are widely used in the aerospace industry and provide the perfect platform on which to assemble a turntable. The ultra lightweight random structure of the foam core helps reduce vibration transmission whilst the stiffness of the skin ensures no microscopic movement of the plinth occurs during playback. The addition of graphene boosts the strength and stiffness of the carbon fibre even further to create the stiffest production plinth we have ever produced.

  • ALUMINIUM HUB AND ZTA HUB BEARING ASSEMBLY

    The Naia uses a custom aluminium sub-platter with a spindle and central bearing manufactured from ZTA (zirconium toughened alumina). ZTA was formerly developed for use in much larger machines used in the paper industry. The resistance against abrasion was much higher than alumina oxide which makes it the perfect material to construct a central bearing assembly from. Exceptionally complex to make, production is similar to other oxide ceramics. Starting life as a powder preparation with spray drying, the piece is formed in an isostatic press (which applies pressure in all directions to create even density). The piece is then turned in a green state (before firing) then fired at 1600 °C for 3 days before grinding the bottom flange and bore before final honing to match the spindle diameter. The spindle and bearing are then kept together as a set to guarantee the perfect fit.

    ZTA is better against abrasive wear and is exceptionally hard, with both the spindle and bearing being manufactured from identical material. This reduces the risk of wear as they have identical hardness. The spindle will run on an ultra-thin layer of fully synthetic oil which reduces wear even further. The result of this complex engineering process is the hardest, most accurate and longest lasting bearing assembly we have ever produced.

    EBLT TRIPLE BELT DRIVE

    For three years, Rega has been researching and developing with chemists the use of a bespoke new rubber compound for drive belts. Using a specialised curing system, the new drive belt offers superior consistency of modulus (a constant representing the degree to which a substance has a particular property, especially elasticity).

    These new belts are manufactured on Rega designed, state of the art, super-accurate tools (inspired by working with the manufacturer of high-tech Formula 1 engine parts) which produce ‘perfectly round’ and ‘dimensionally accurate’ belts, critical for perfect speed stability

    DB TECHNOLOGY (DOUBLE BRACE TECHNOLOGY)

    “Mass absorbs energy – lost energy equals lost music”! A super lightweight plinth combined with a ceramic top and bottom brace mounted specifically where the increased rigidity is required between the tonearm mounting and the main hub bearing. This forms a structurally sound, “stressed beam,” assembly.

    This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The tonearm and cartridge must be able to read accurately, directly from the platter. This unique Rega double brace solution guarantees as much detail is retrieved as possible.

    The use of braces instead of the complete skin allows increased thickness in these key areas whilst providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.

    TECHNICAL SPECIFICATIONS

    Naia Turntable Dimensions (W x H x D)

    420 x 115 x 350 mm (with dustcover fitted)

    Reference Power Supply Dimensions (W x H x D)

    218 x 80 x 320 mm

    Turntable Weight

    4.65Kg (including dustcover)

    Reference Power Supply Weight

    3 Kg

    For full technical specifications, download Naia – User Manual Multilingual – Ver 2 below.
