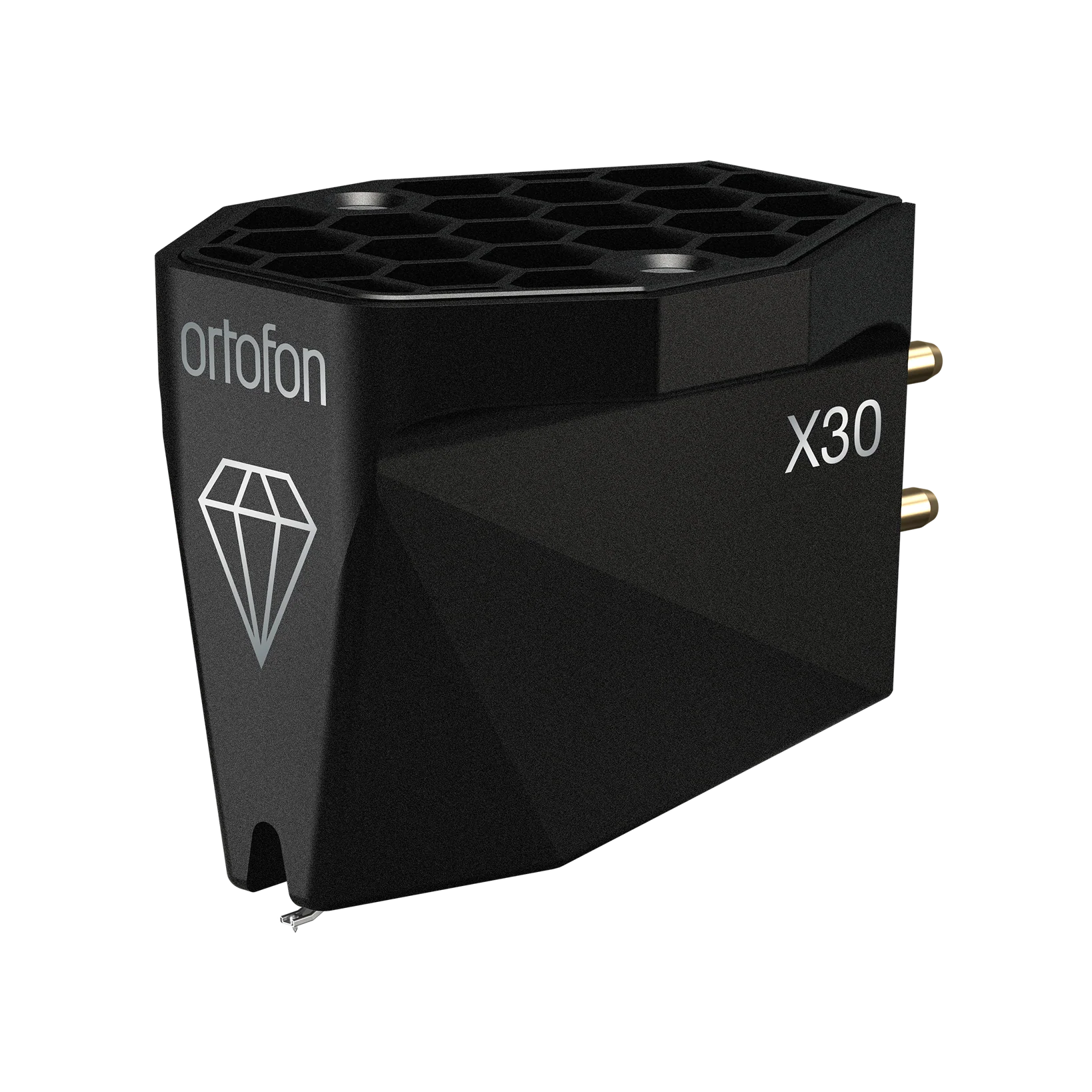

Ortofon Hi-Fi MC X30 Moving Coil Cartridge

$1,399.00

From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level.

Description

Push your listening experience further with the MC X30. Featuring a nude fine line diamond stylus, it offers extraordinary accuracy and resolution, rendering your music and every track with breathtaking detail and dynamic range.



A New Benchmark in Analog Perfection

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.



Pure Silver Coil System

All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Specifications

cifications

  • Channel balance at 1 kHz
    0.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.4 mV
  • Channel separation at 1 kHz
    26 dB
  • Frequency response 20 Hz - 20 kHz
    +/-1 dB
  • Compliance, dynamic, lateral
    15 μm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Nude Fine-Line
  • Stylus tip radius
    r/R 8/40 μm
  • Stylus suspensions
    Ortofon exclusive
  • Coil system
    High-purity silver Coil wire
  • Tracking force, recommended
    2.0 grams
  • Internal impedance, DC resistance
    6 Ω
  • Coil wire material
    High-purity silver
  • Cartridge body material
    MIM Stainless Steel & Honeycomb Core Structure
  • Cartridge colour
    Black
  • Cartridge weight
    8.6 grams
  • Recommended load resistance
    > 50 Ω
