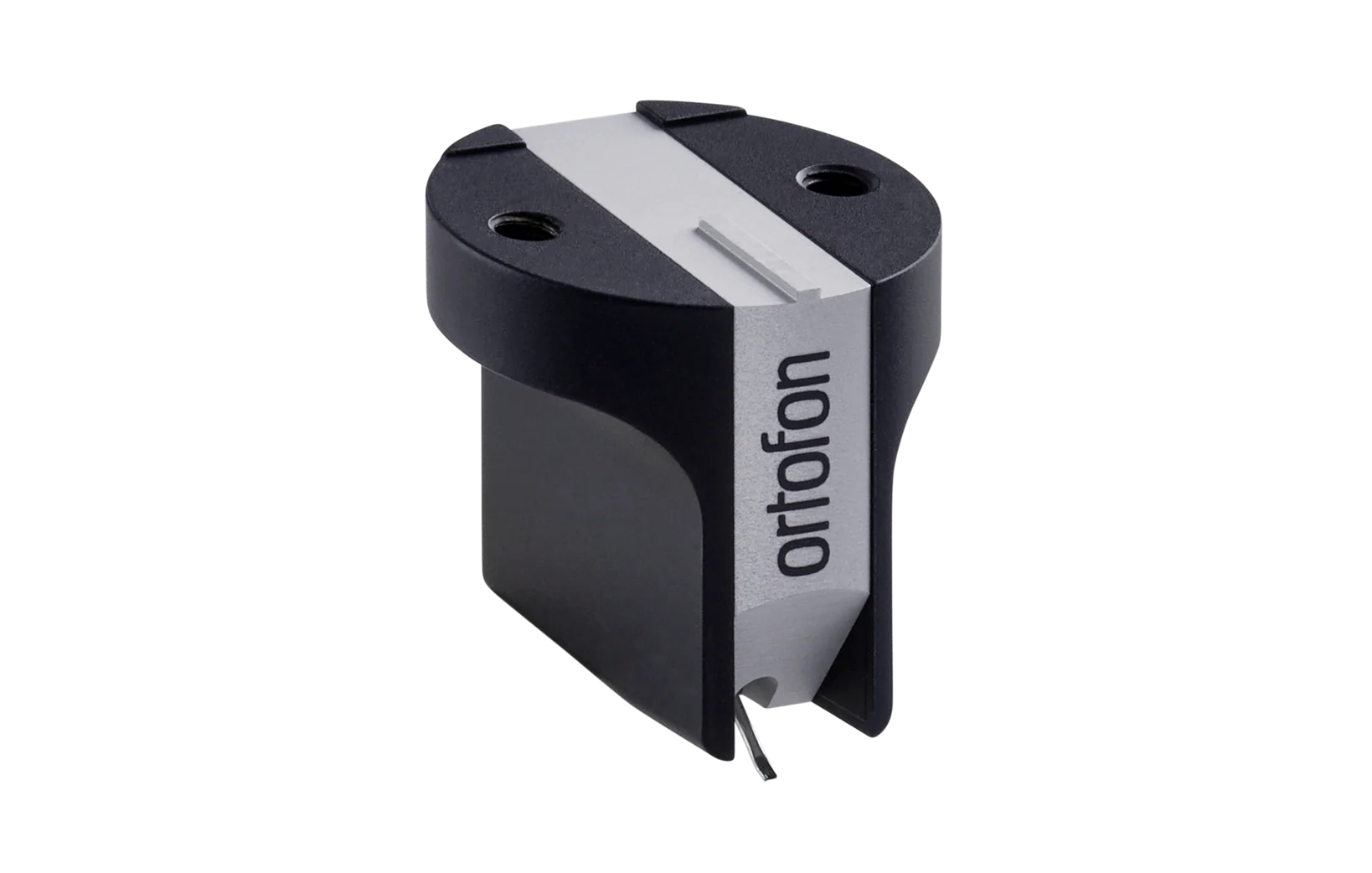

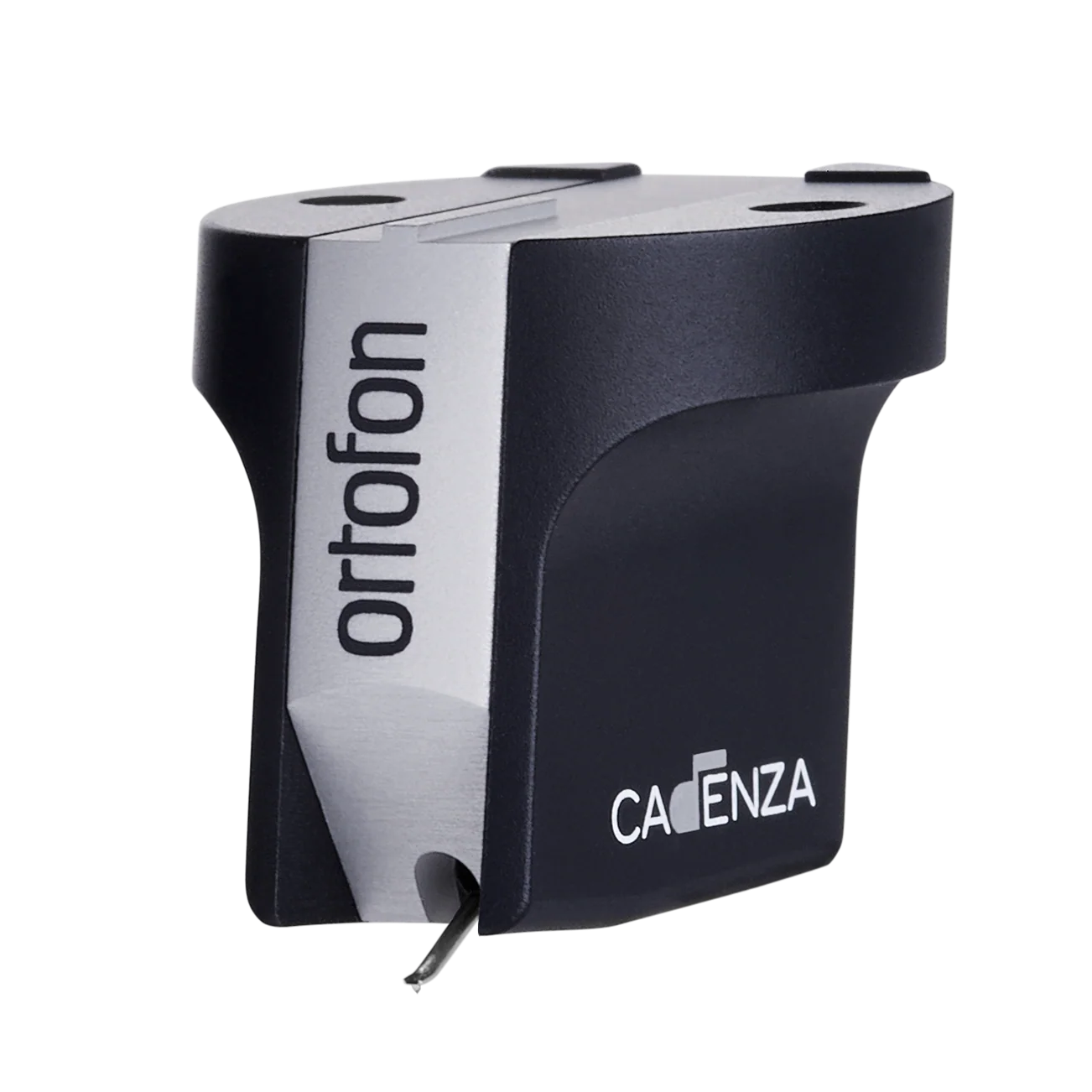

Ortofon Hi-Fi MC Cadenza Mono Moving Coil Cartridge

$2,699.00

Find your old records as well as new micro groove mono records and experience the Cadenza Mono!

Description

The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminium cantilever. The stylus radius is r/R 8/40 µm.The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance. For easy use, the pins are connected so you get the same signal from both pairs of connecting pins.

Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous, and moderate.

Specifications

    • Output voltage at 1 kHz, 5cm/sec
      450 μV
    • Channel separation at 1 kHz
      Pure Mono
    • Frequency response 20 Hz - 20 kHz
      +3/-1 dB
    • Tracking ability at 315 Hz
      70 μm
    • Compliance, dynamic, lateral
      12 μm/mN
    • Cantilever material
      Aluminium Cantilever
    • Stylus type
      Nude fine line Diamond
    • Stylus tip radius
      r/R 8/40
    • Coil system
      High-Purity Silver Coil Wire
    • Tracking force range
      2,2-2,7 g
    • Tracking force, recommended
      2,5 g
    • Tracking angle
      20°
    • Internal impedance, DC resistance
      5 Ohm
    • Recommended load impedance
      50-500 Ohm
    • Coil wire material
      High-Purity Silver Coil Wire
    • Cartridge body material
      Aluminium Stainless steel
    • Cartridge colour
      Naturel/Black
    • Cartridge weight
      10.7 g
