Ortofon Hi-Fi MC Cadenza Bronze Moving Coil Cartridge

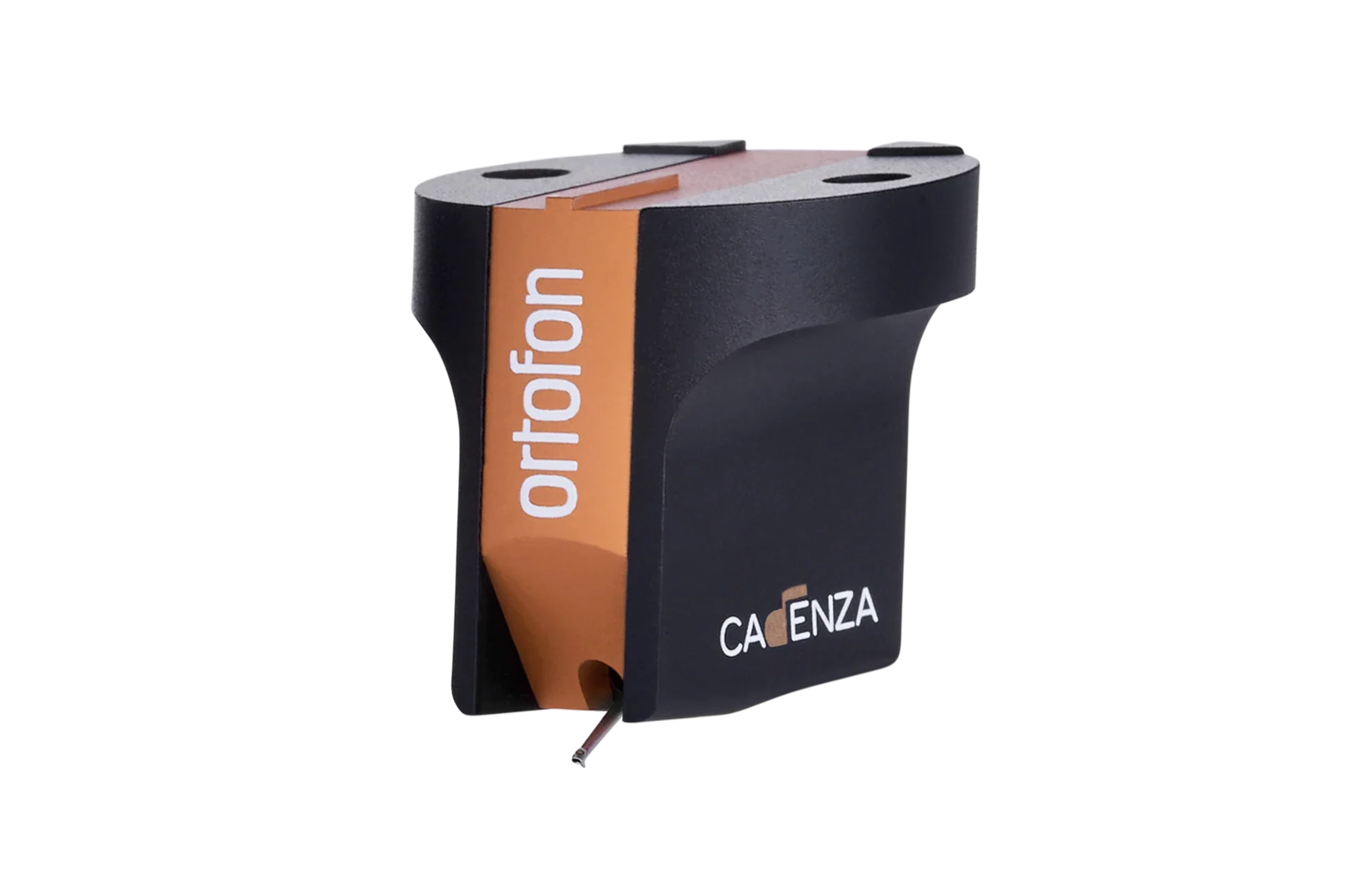

Ortofon Hi-Fi MC Cadenza Bronze Moving Coil Cartridge - Image 2

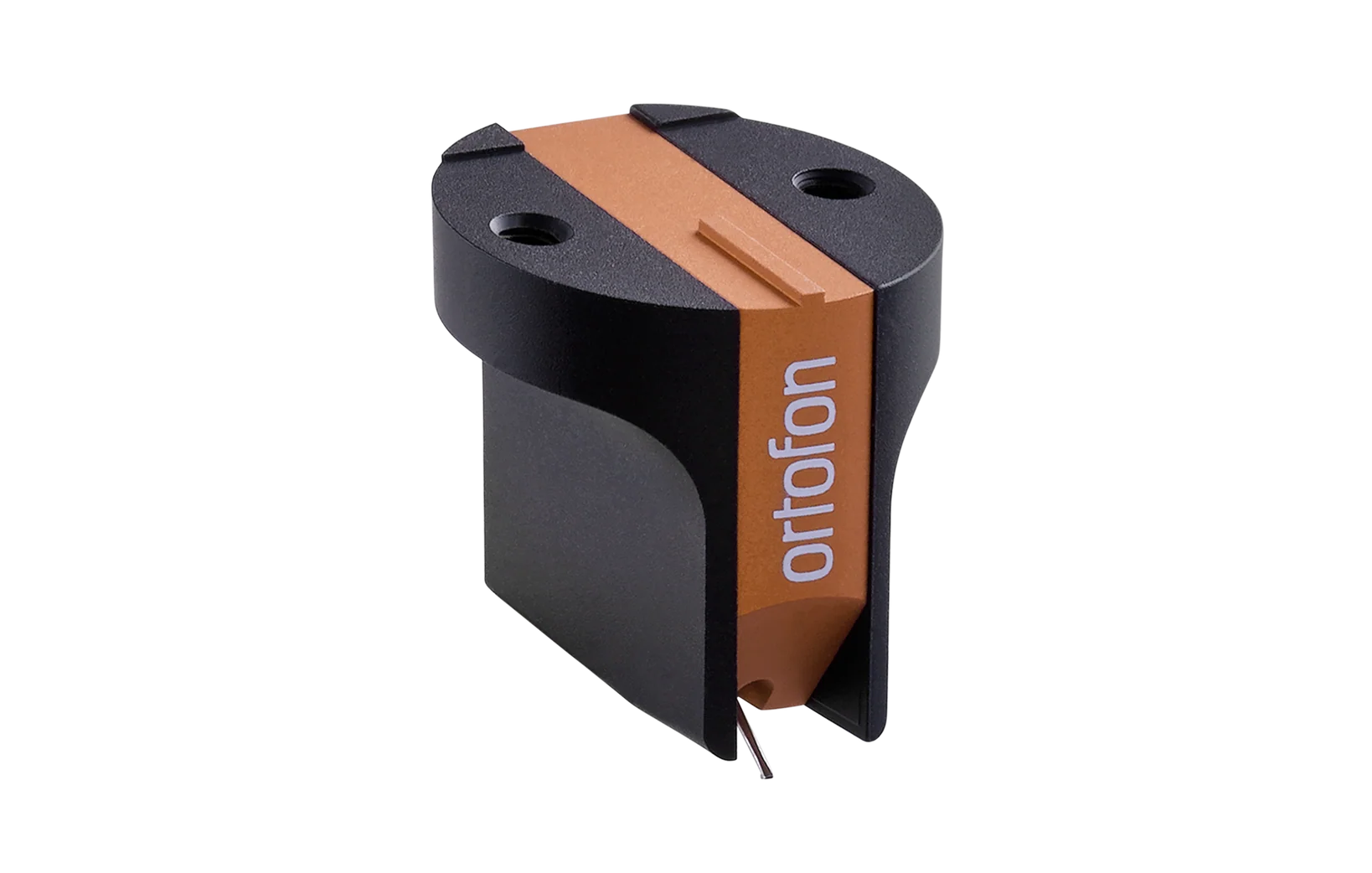

Ortofon Hi-Fi MC Cadenza Bronze Moving Coil Cartridge - Image 3

Ortofon Hi-Fi MC Cadenza Bronze Moving Coil Cartridge

$4,999.00

The Cadenza Bronze is a true high-end reference cartridge, conveying music with supreme precision, impact, and dynamics.

Categories: , Tags: , Brand:

Description

The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever.The coil wire is the famous Ortofon Aucurum wire, which is a gold-plated 6NX copper wire.

Field Stabilizing Element (FSE) is used for optimal linearity especially during complex crescendo passages.

The Cadenza Bronze stereo imaging capabilities illuminate the farthest corners of the sound stage in all three dimensions.

Specifications

  • Channel balance at 1 kHz
    < 1 dB
  • Output voltage at 1 kHz, 5cm/sec
    400 μV
  • Channel separation at 1 kHz
    > 24 dB
  • Frequency response 20 Hz - 20 kHz
    +/- 1,5
  • Tracking ability at 315 Hz
    80 μm
  • Compliance, dynamic, lateral
    12 μm/mN
  • Cantilever material
    Conical Aluminium Cantilever
  • Stylus type
    Nude Ortofon Replicant 100
  • Stylus tip radius
    r/R 5/100
  • Coil system
    Aucurum Coil Wire
  • Tracking force range
    2,2-2,7 g
  • Tracking force, recommended
    2,5 g
  • Tracking angle
    23°
  • Internal impedance, DC resistance
    5 Ohm
  • Recommended load impedance
    50-200 Ohm
  • Coil wire material
    Aucurum Coil Wire
  • Cartridge body material
    Aluminium Stainless steel
  • Cartridge colour
    Bronze/Black
  • Cartridge weight
    10.7 g
