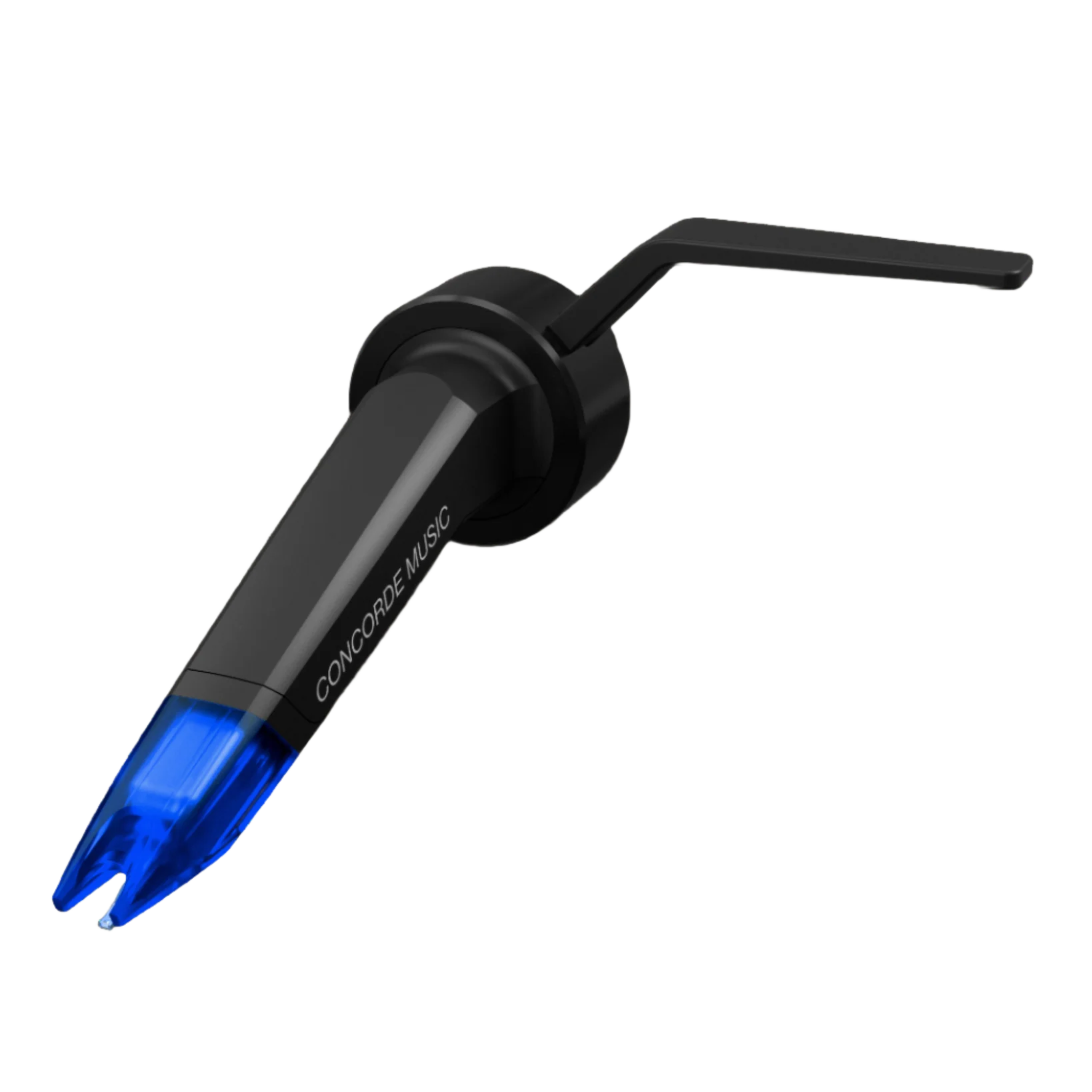

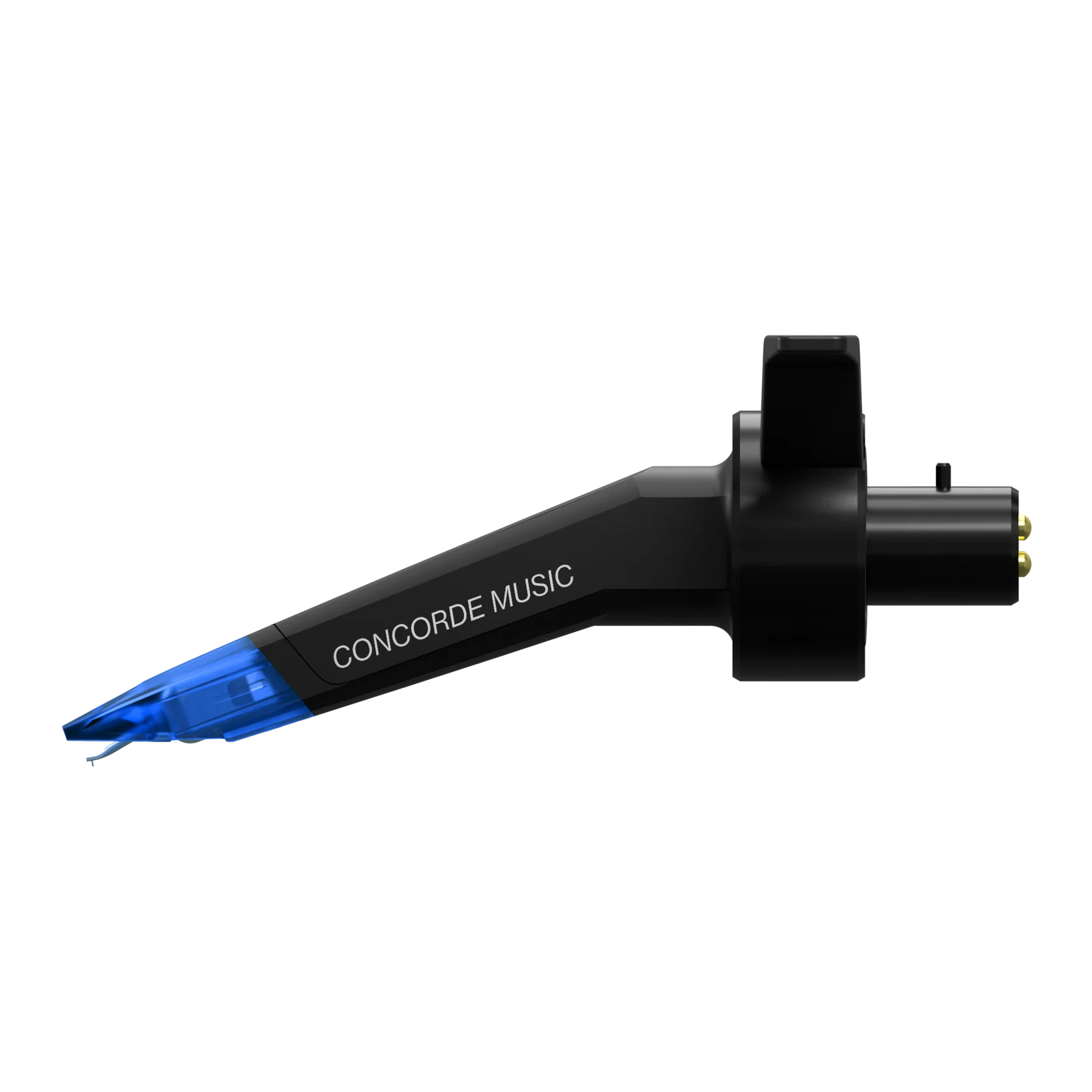

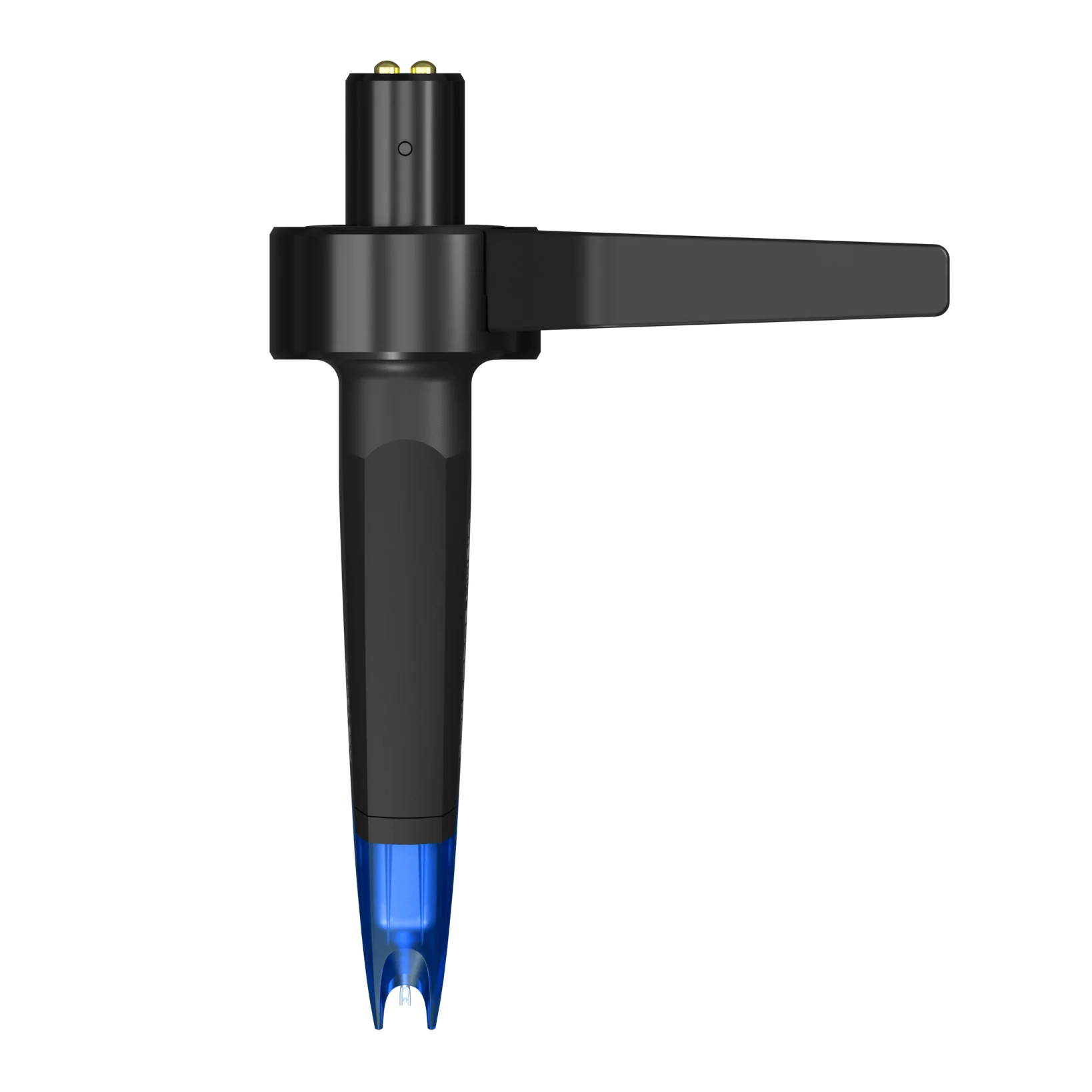

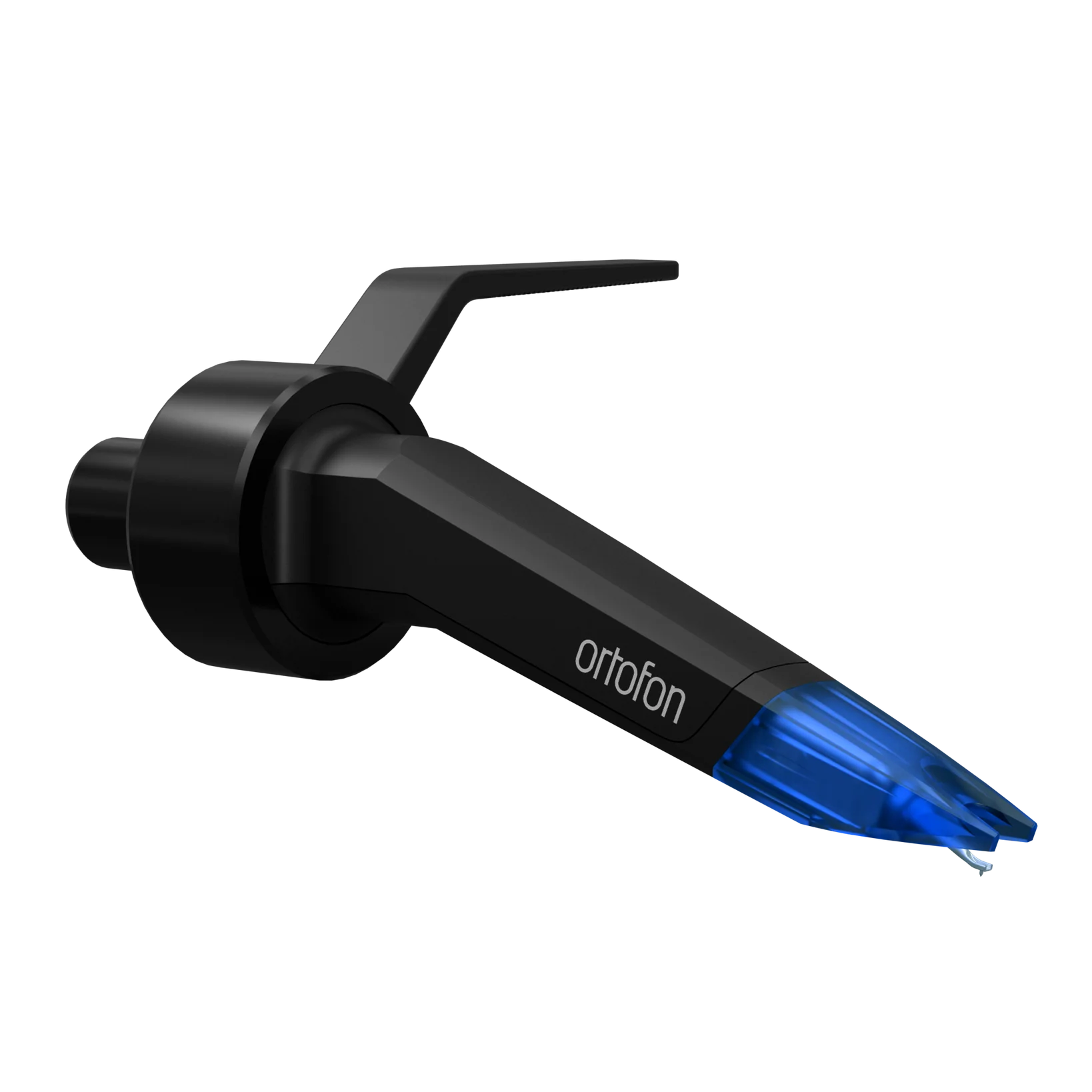

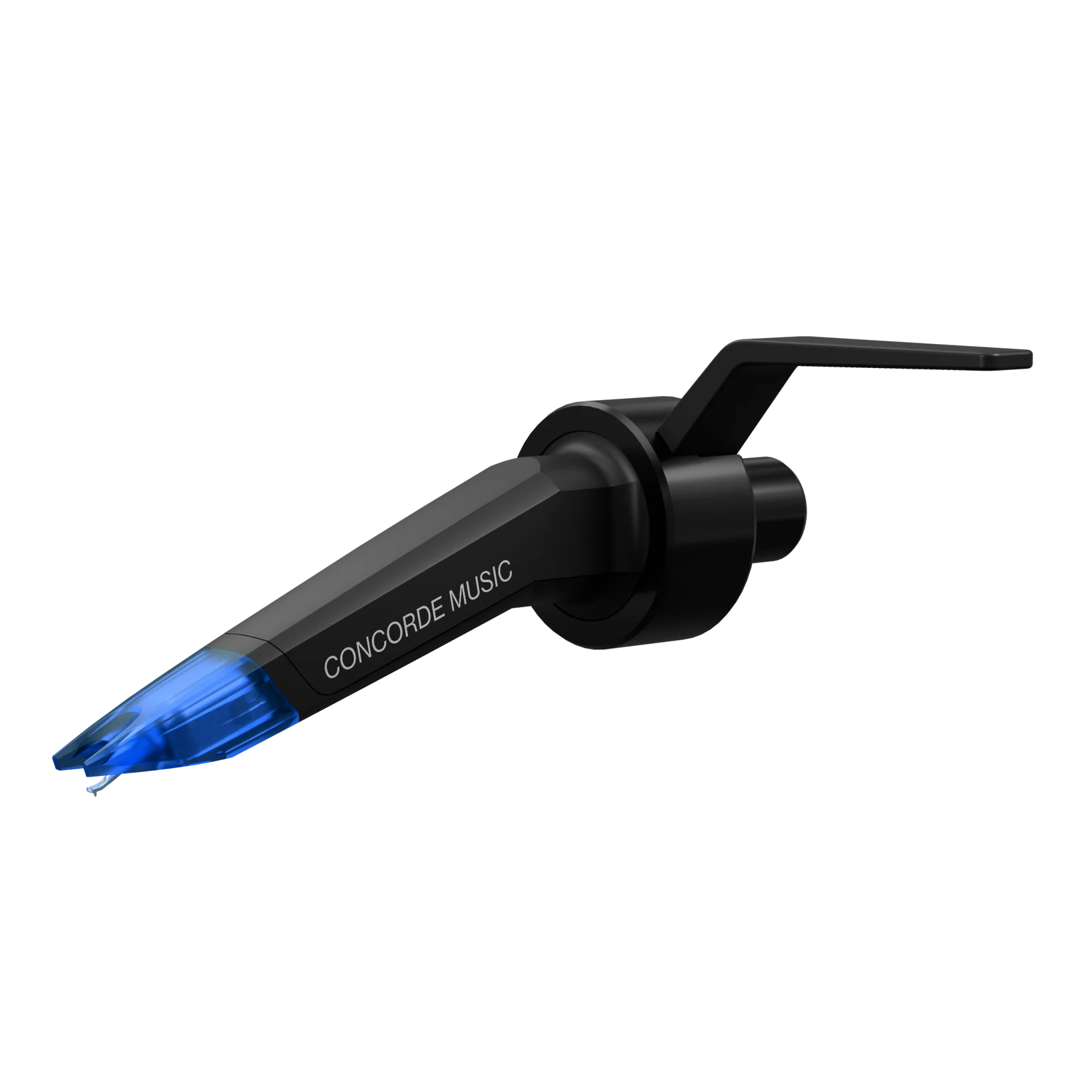

Ortofon Hi-Fi Concorde Music Blue Moving Magnet Cartridge

$499.00

Introducing Concorde Music; By music lovers; for music lovers.

Description

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde’s unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Developed by music lovers, for music lovers, the Concorde music cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Easy installation, Easy upgrades

Concorde Music cartridges seamlessly integrate with all turntables featuring a bayonet tonearm, ensuring easy and straightforward installation – no tools required, making it hassle-free and convenient for all users.

All Concorde Music styli are compatible with every Concorde Music cartridge. An upgrade path is possible throughout the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black.



Specifications

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    6mV
  • Channel separation at 1 kHz
    25 dB
  • Frequency response 20 Hz - 20 kHz
    +2 / -1 dB
  • Tracking ability at 315 Hz
    80 µm
  • Compliance, dynamic, lateral
    15 µm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Nude Elliptical diamond
  • Stylus tip radius
    r/R 8/18 µm
  • Coil system
    Quad-coils with split pole pins and Silver-plated OFC Coil Wire
  • Tracking force, recommended
    1.8 g
  • Tracking angle
    20°
  • Cartridge body material
    Polymer and brass
  • Cartridge colour
    Black/Blue
  • Cartridge weight
    18 g
  • Recommended load resistance
    47 kΩ
  • Recommended load capacitance
    150-300 pF
