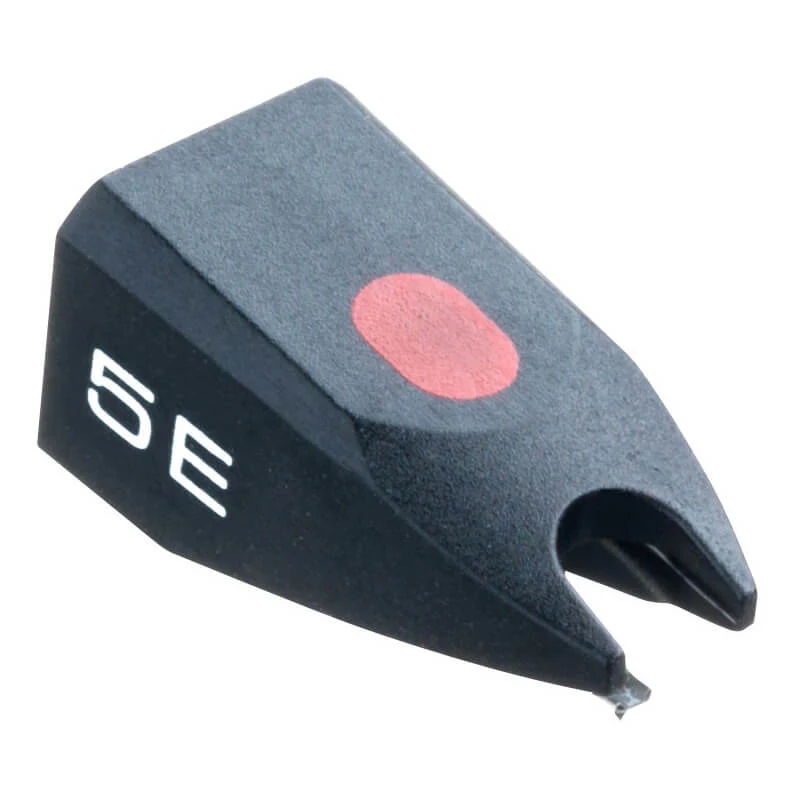

Ortofon Hi-Fi 5 E Replacement Stylus
Ortofon Hi-Fi 5 E Replacement Stylus - Image 2

Ortofon Hi-Fi 5 E Replacement Stylus

$115.00

Interchangeable with higher-tier Ortofon styli like the Stylus 10, 20, 30, or 40 if you want better sound later

Categories: , Tag: Brand:

Description

Compatible Cartridges: Designed for the Ortofon OM 5E, OMP 5E, OMB 5E, and OMT 5E moving-magnet cartridge series.

Specifications

  • Frequency range: 20-25,000 Hz
  • Frequency response:20-25,000 Hz
  • Tracking ability at 315Hz at recommended tracking force | 65 µm
  • Compliance, dynamic, lateral | 20 µm/mN
  • Stylus type | Elliptical
  • Stylus tip radius | r/R 8/18 µm
  • Equivalent stylus tip mass | 0.5 mg
  • Tracking force range | 1.5-2.0 g (15-20 mN)
  • Tracking force (recommended) | 1.75 g (17.5 mN)
  • Tracking angle | 20°
  • Stylus colour | Black
  • Recommended for the following cartridges | OM 5E, OMP 5E, OMB 5E, OMT 5E
