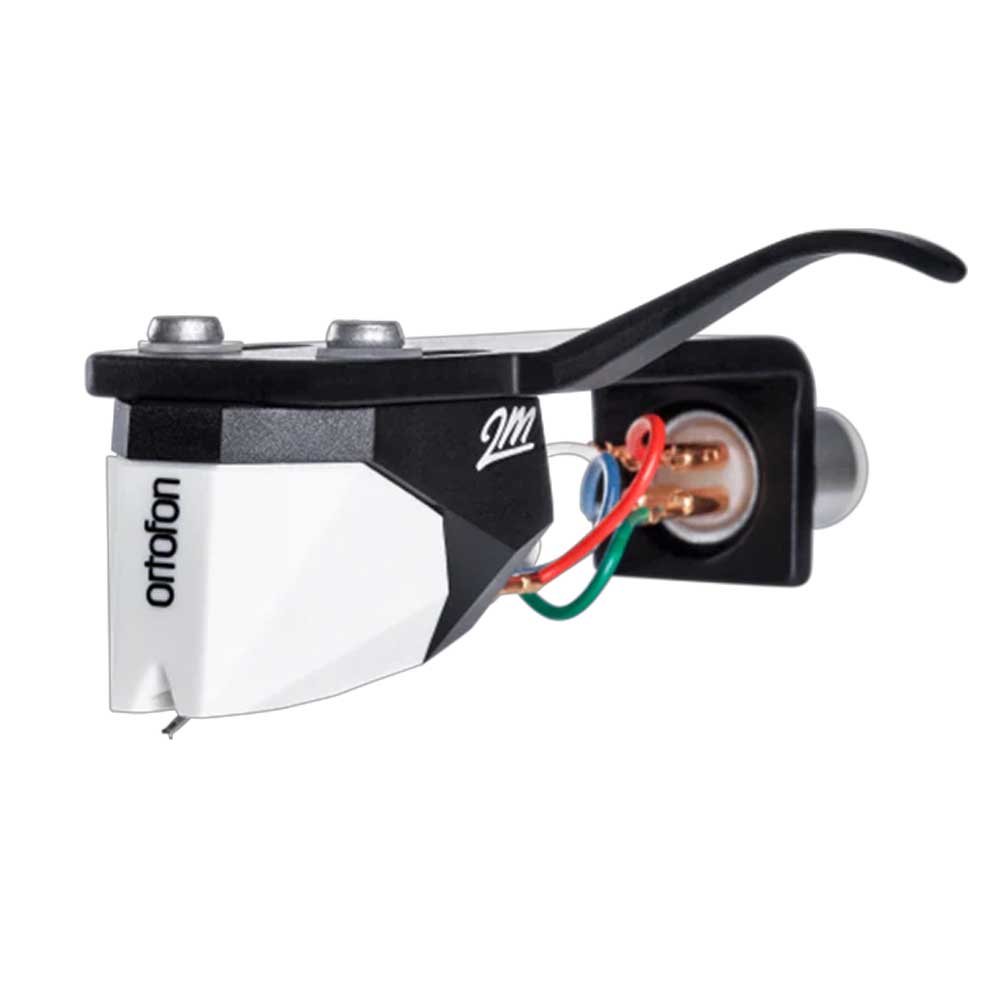

Ortofon Hi-Fi 2M Mono Pre-Mounted on SH-4 Headshell

Ortofon Hi-Fi 2M Mono Pre-Mounted on SH-4 Headshell

$849.00

2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Categories: , Tags: , Brand:

Description

SH-4 Headshell

The SH-4 headshell has an ergonomic design with a long finger that is easy to pick-up. The big finger grip and shorter construction makes movement and placement of the headshell easy and visible. The wire terminals on the rear side are also gold plated for better signal transmission.
Specifications…



Specifications

    • Output voltage at 1000 Hz, 5cm/sec. - 4 mV
    • Frequency response - 20-20.000 Hz + 3 / - 1 dB
    • Tracking ability at 315Hz at recommended tracking force - 70 µm
    • Compliance, dynamic, lateral - 18 µm/mN
    • Stylus type - Spherical
    • Stylus tip radius - R 65 µm
    • Tracking force range - 1.6-2.0g (16-20 mN)
    • Tracking force, recommended - 1.8 g (18 mN)
    • Internal impedance, DC resistance - 700 Ohm
    • Internal inductance - 350 mH
    • Recommended load resistance - 47 kOhm
    • Recommended load capacitance - 150-300 pF
    • Tracking angle - 20°
    • Cartridge colour, body/stylus - Black/Grey
    • Cartridge weight without screws - 7.2 g
    • Premounted cartridge weight - 16.7 g
  • Premounted cartridge weight - 16.7 g
