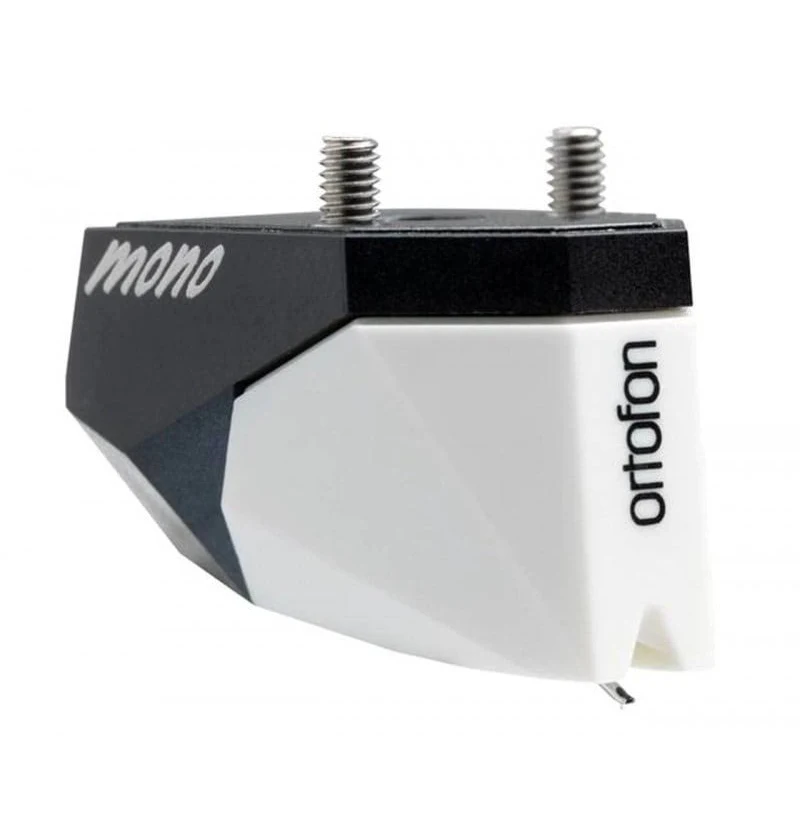

Ortofon Hi-Fi 2M Mono Moving Magnet Cartridge

Price range: $729.00 through $859.00

Perfection for your Mono tracks. The 2M Mono features an improved engine, which provides a high level of sonic accuracy.

SKU: N/A Categories: , Tags: , Brand:

Description

The stylus’ tip features a R 18µm Nude Spherical diamond that is an optimal solution for playing mono microgroove LP vinyl records. The cartridge body is manufactured from Hopelex, which ensures high rigidity while eliminating unwanted resonances.

The 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Additional information

2M Mono

Standard Mount, Verso Mount

Specifications

  • Output voltage at 1 kHz: 5cm/sec. 4 mV
  • Frequency range at -3 dB: 20-20,000 Hz
  • Frequency response: 20-20,000 Hz +3/-1 dB
  • Tracking ability at 315 Hz at recommended tracking force:  70 μm
  • Compliance, dynamic, lateral: 18 μm/mN
  • Stylus type: Nude Spherical
  • Stylus tip radius: R 18 μm
  • Tracking force range: 1.6-2.0 g(16-20 mN)
  • Tracking force, recommended: 1.8 g (18 mN)
  • Tracking angle: 20°
  • Internal Impedance, DC resistance:  0.7 kOhm
  • Internal inductance: 350 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF
  • Cartridge colour, body/stylus: Black/White
  • Cartridge weight without screws: 7.2 g
  • Replacement stylus unit 2M 78 2M Mono 2M Red 2M Blue 2M Bronze 2M
