Price range: $99.00 through $315.00
This entry-level cartridge is perfect if your starting out on the DJ scene and want to start off with decent, but not too expensive equipment.

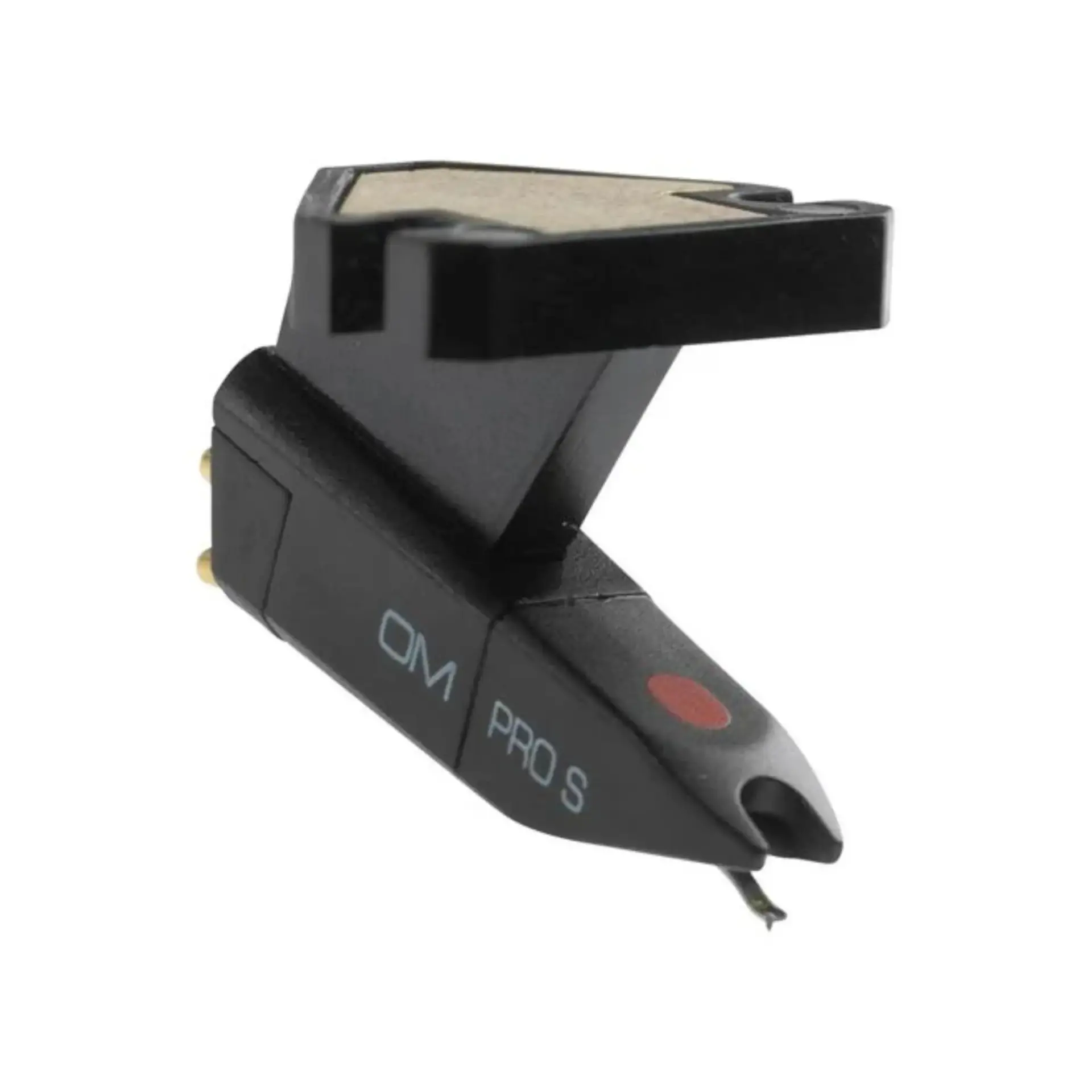

The Pro S is the perfect entry-level cartridge for newcomers to becoming a DJ. The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable. No matter what the application, the Pro S provides remarkable versatility for virtually any setting. The Pro S is a consistent performer and a fine all rounder!
| Pro S | Concorde Single, Concorde Twin, OM Single |
|---|
|
Output voltage at 1000Hz, 5cm/sec. |
5 mV |
|
Channel balance at 1kHz |
2 dB |
|
Channel separation at 1kHz |
20 dB |
|
Channel separation at 15 kHz |
15 dB |
|
Frequency range at -3dB |
20-20.000 Hz |
|
Frequency response |
20-18.000 Hz +/- 2 dB |
|
Tracking ability at 315 Hz at recommmende tracking force |
70 μm |
|
Compliance, dynamic lateral |
7 μm/m N |
|
Stylus type |
Spherical |
|
Stylus tip radius |
R 26 μm |
|
Tracking force range |
3,0-5,0 g (30-50 mN) |
|
Tracking force recommended |
4,0 g (40 mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
750 Ohm |
|
Internal inductance |
450 mH |
|
Recommended load resistance |
47 kOhm |
|
Recommended load capacitance |
200-600 pF |
|
Cartridge weight |
18,5 g |
|
Replacement stylus unit |
Pro S |
