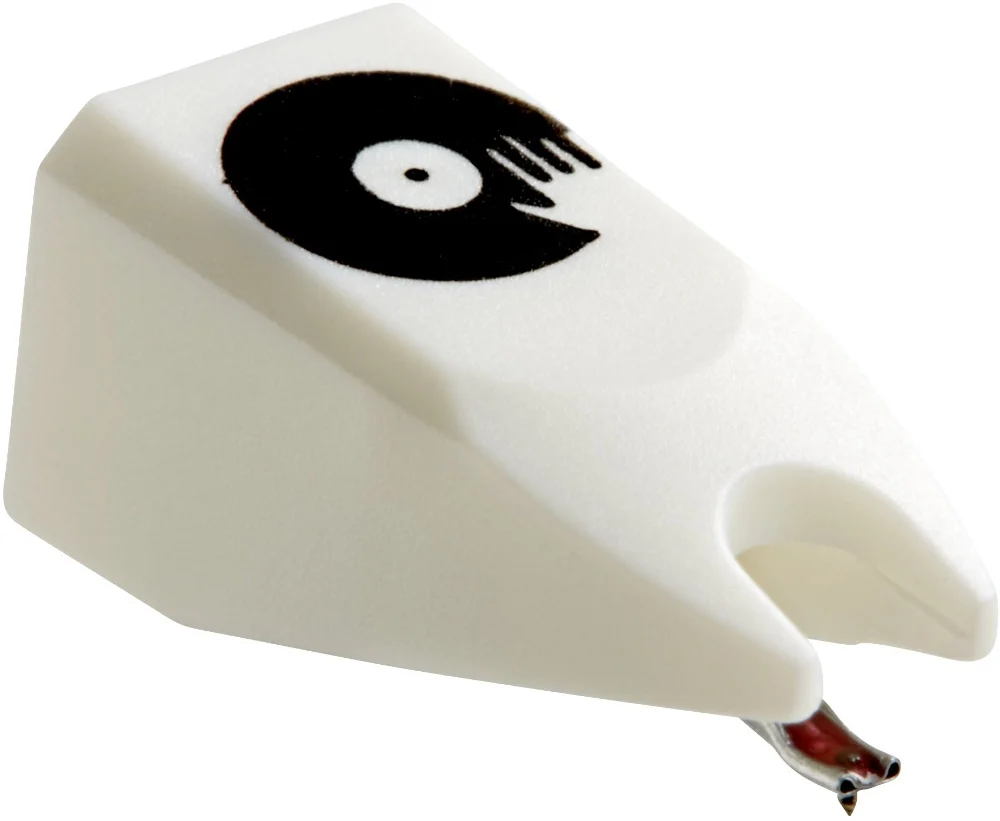

Ortofon DJ Made From Scratch Replacement Stylus

Ortofon DJ Made From Scratch Replacement Stylus

$115.00

The Stylus MFS features a spherical stylus capable of withstanding heavy back-cueing.

Categories: , Tag: Brand:

Description

The Stylus MFS produces a high output, ensuring clear sound from a mixer / pre amplifier and allowing for uncompromising, energetic sound quality.

Specifications

Channel balance at 1 kHz
  • 1,5 dB
Output voltage at 1 kHz, 5cm/sec
  • 7 mV
Channel separation at 1 kHz
  • 25 dB
Tracking ability at 315 Hz
  • 80 μm
Compliance, dynamic, lateral
  • 6 μm/m N
Stylus type
  • Spherical
Stylus tip radius
  • R 18 μm
Tracking force range
  • 3.0-5.0 g (30-50 mN)
Tracking force, recommended
  • 4.0 g (40 mN)
Tracking angle
  • - 20°
Internal impedance, DC resistance
  • 750 Ohm
Cartridge weight
  • 18.5 g
Recommended load resistance
  • 47 kOhm
Internal inductance
  • 450 mH
Recommended load capacitance
  • 200-600 pF
