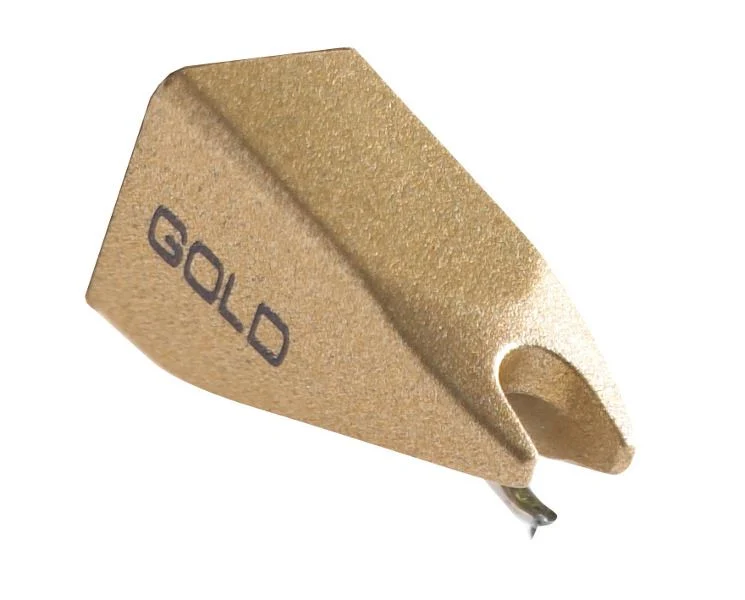

Ortofon DJ Gold Replacement Stylus

Ortofon DJ Gold Replacement Stylus

$175.00

The Stylus Gold is a top model with gold plating.

Categories: , Tag: Brand:

Description

Features a Special Pro Elliptical diamond and an output voltage of 6 mV.

Specifications

  • Channel balance at 1 kHz
    1,5 dB
  • Output voltage at 1 kHz, 5cm/sec
    6 mV
  • Channel separation at 1 kHz
    23 dB
  • Tracking ability at 315 Hz
    80 μm
  • Compliance, dynamic, lateral
    7 μm/m N
  • Stylus type
    Special Elliptical
  • Stylus tip radius
    r/R 13/25 μm
  • Tracking force range
    2.0-5.0 g (20-50 mN)
  • Tracking force, recommended
    3.0 g (30 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    750 Ohm
  • Cartridge weight
    stylus = 1 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-600 pF
