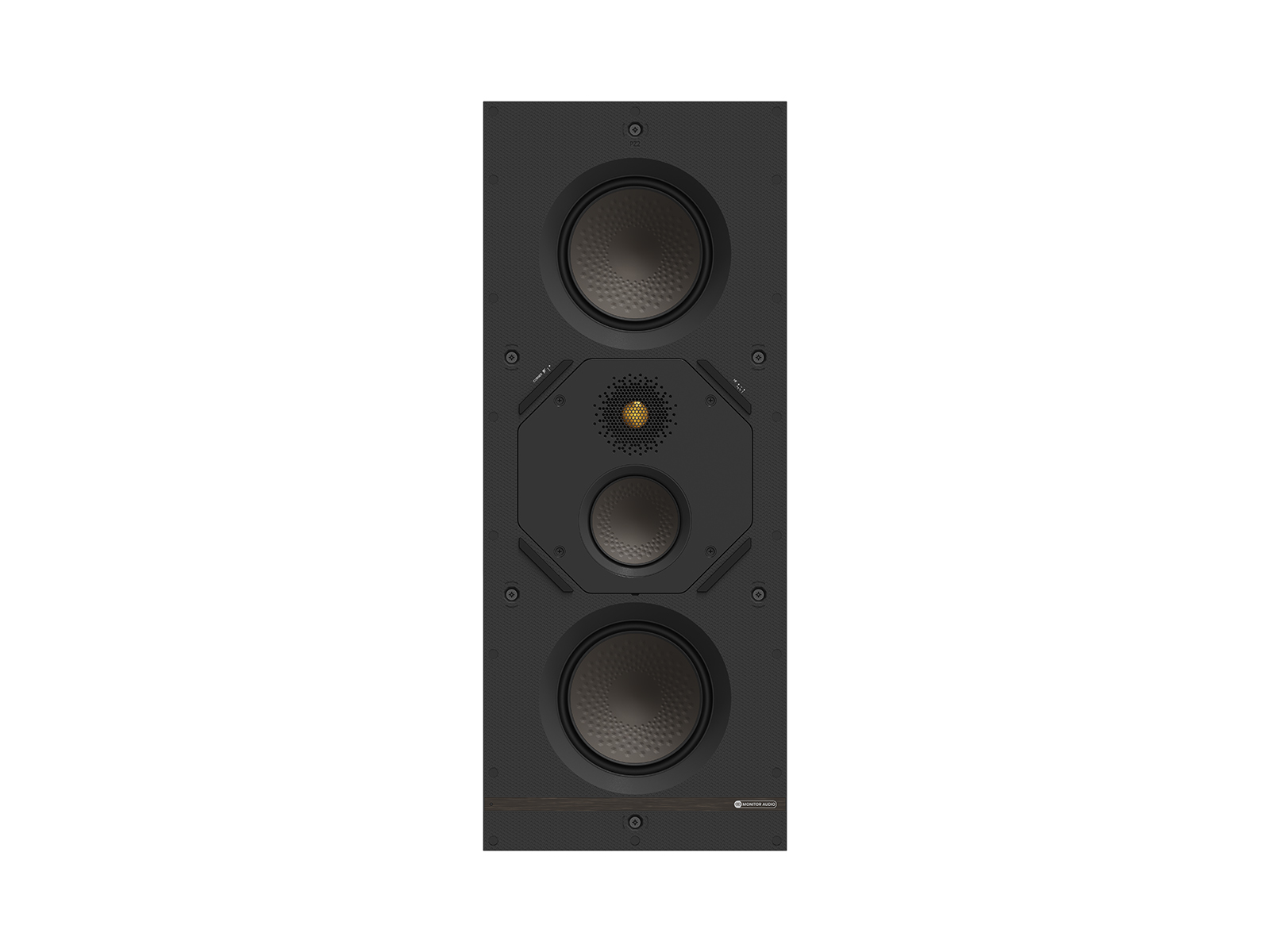

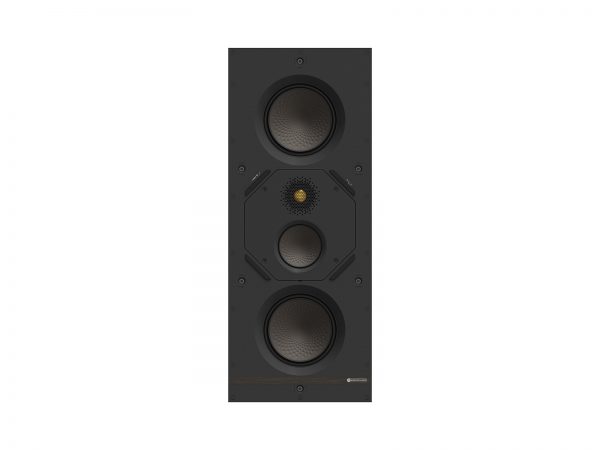

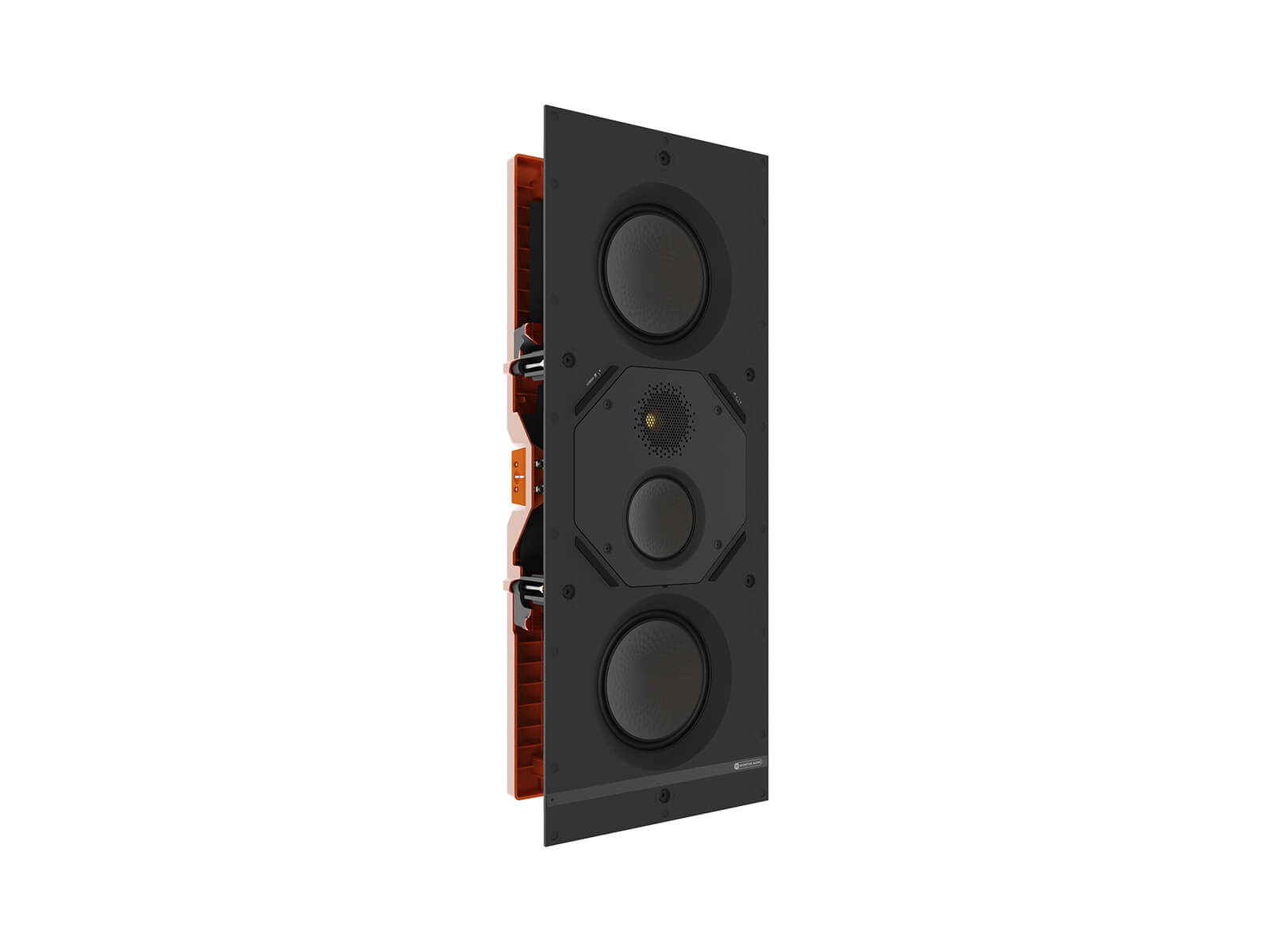

Monitor Audio W2M in wall speaker

$999.00

New model and a totally new design.

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring two C-CAM mid-bass drivers and a C-CAM tweeter. It has a cut-out dimension of 527 x 198mm and revolutionary patented Quick-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

Categories: , , , Brand:

Description

This medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. This combination clear and lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

  • Ideal for installations where pristine acoustic performance is required
  • Three-way design
  • 1 x 1″ (25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
  • 1 x 3″ (76 mm) RST II mid-range driver
  • 2 x 5″ (127 mm) RST II bass drivers for full bass
  • Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
  • Tri-Grip II for easy and secure fitment
System Format 3–Way
Channels 1
Frequency Response, Installed (-6dB) 40 Hz – 35 kHz​
Nominal Impedance 6 ohm
Minimum Impedance (20Hz to 20kHz) 4.8 Ohm @ 1 kHz
(4.1 Ohm @ 15 kHz)
Sensitivity (2.83Vrms@1m, Installed) 87 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted) 116 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) 120 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal) 45 – 180 W
Drive Unit Complement 2 x 5″ (127 mm) RST II bass driver
1 x 3″ (76 mm) RST II midrange driver
1 x 1″ (25 mm) C-CAM tweeter
Crossover Frequency LF/HF: 650 kHz
MF/HF: 3 kHz
Mounting Depth 85 mm (33/8“)
Cutout L x W 527 x 198 mm (203/4 x 713/16“)
External Dimensions (Including Grille (H x W x D)) 560 x 231 x 90 mm (221/16 x 91/8 x 39/16“)
Weight (each) 3.9 kg (8 lb 9 oz)
Pre-Construction BracketWM-B
Cabinet Finish Matte black & Orange & Bronze
Sold As Single Unit
Corner Switch On/Off
HF Switch  – /0/ +
