Description

Performance-driven bass for every listener.
The Vestra W10 subwoofer delivers deep, controlled lows with minimal distortion, and its sleek, compact form fits seamlessly into any space. The W10 is the ultimate upgrade for those wanting powerful sound with a minimalist design.

A highly versatile, compact, 10” (254mm) sealed-enclosure subwoofer powered by a potent 250-Watt Class-D amplifier, ideal to be used in multiples or as a single unit within a smaller two- or multi-channel system. The W10 is equipped with a precision-engineered 10-inch C-CAM (Ceramic-Coated Aluminium Magnesium) high linear-excursion driver sat within a robust sealed enclosure, as well as useful DSP (Digital Signal Processing) presets allowing for a certain amount of personalisation within an environment. This ensures the W10 is easy to set up while producing a rich, dynamic performance.

System Format
Active

Frequency Response (In-room, -6dB)
19 — 200 Hz

Maximum Usable SPL – Peak (CTA 2010-B, Z-weighted, half-space)
111 dB

Amplifier Output Instantaneous (RMS)
250 W

Amplifier Classification
High-Efficiency Class-D

Bass Alignment
Sealed

Low Pass Filter Frequency (-6dB)
32 — 200 Hz

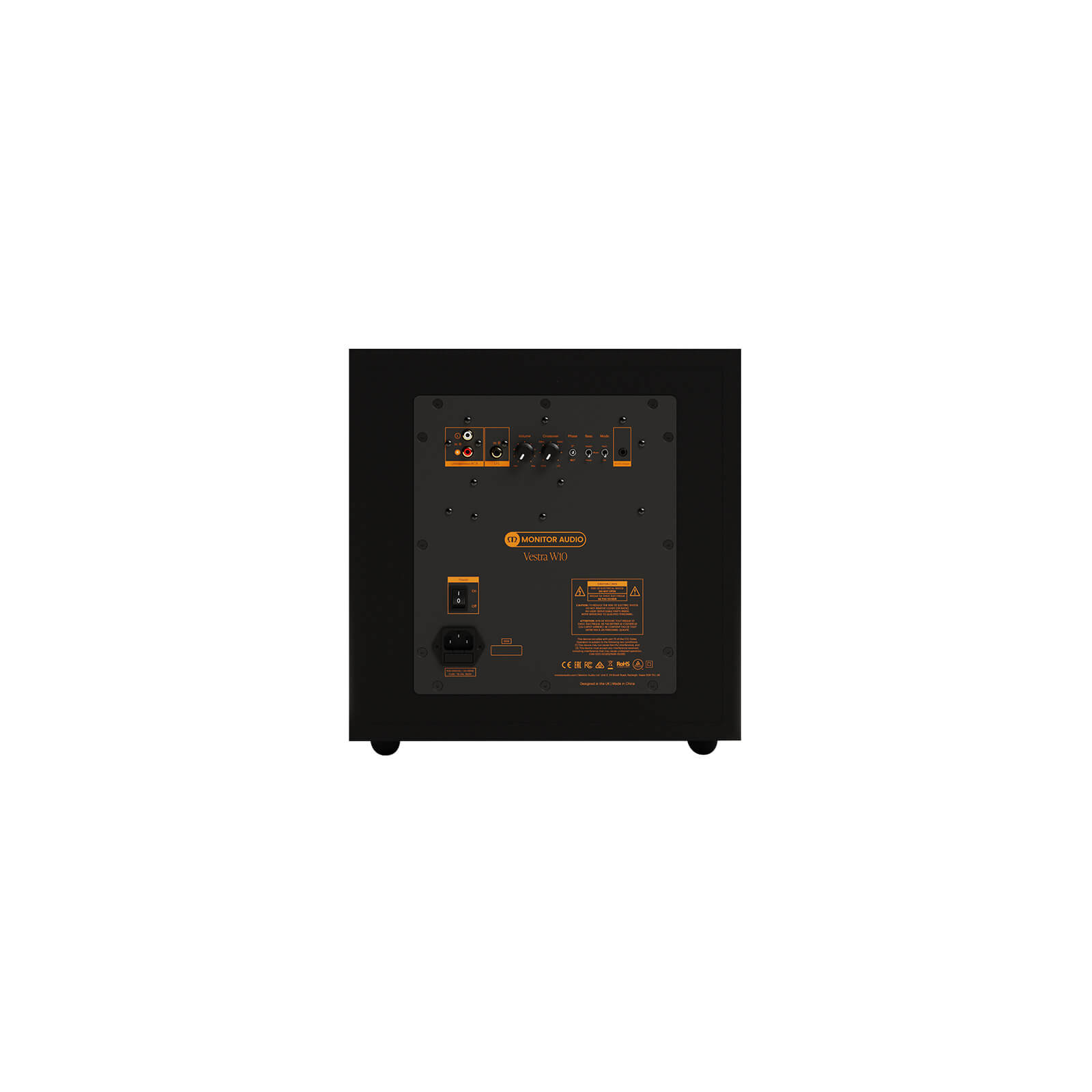

Inputs
Stereo Unbalanced RCA
LFE Unbalanced RCA
12 V Trigger 3.5 mm mono jack

Input Impedance
47 kOhms

Phase Control
0° & 180° Toggle Switch

Equalisation DSP
3 pre-set modes: Impact, Movie, Music

Auto Music Sensing
Auto On: Line Level >3 mV | Auto Standby after 20 mins

Mains Input Voltage
Universal Mains, 85 – 265 VAC, 50 – 60 Hz

Power Consumption (1/8th Maximum Output)
60 W

Drive Unit Complement
1x 10″ (254 mm) High Linear-Excursion Driver

External Dimensions with all accessories fitted (H x W x D)
344 x 330 x 360 mm (131/2 x 13 x 143/16″)

Weight
13.3 kg

Grille
Cloth covered

Warranty
5 years
