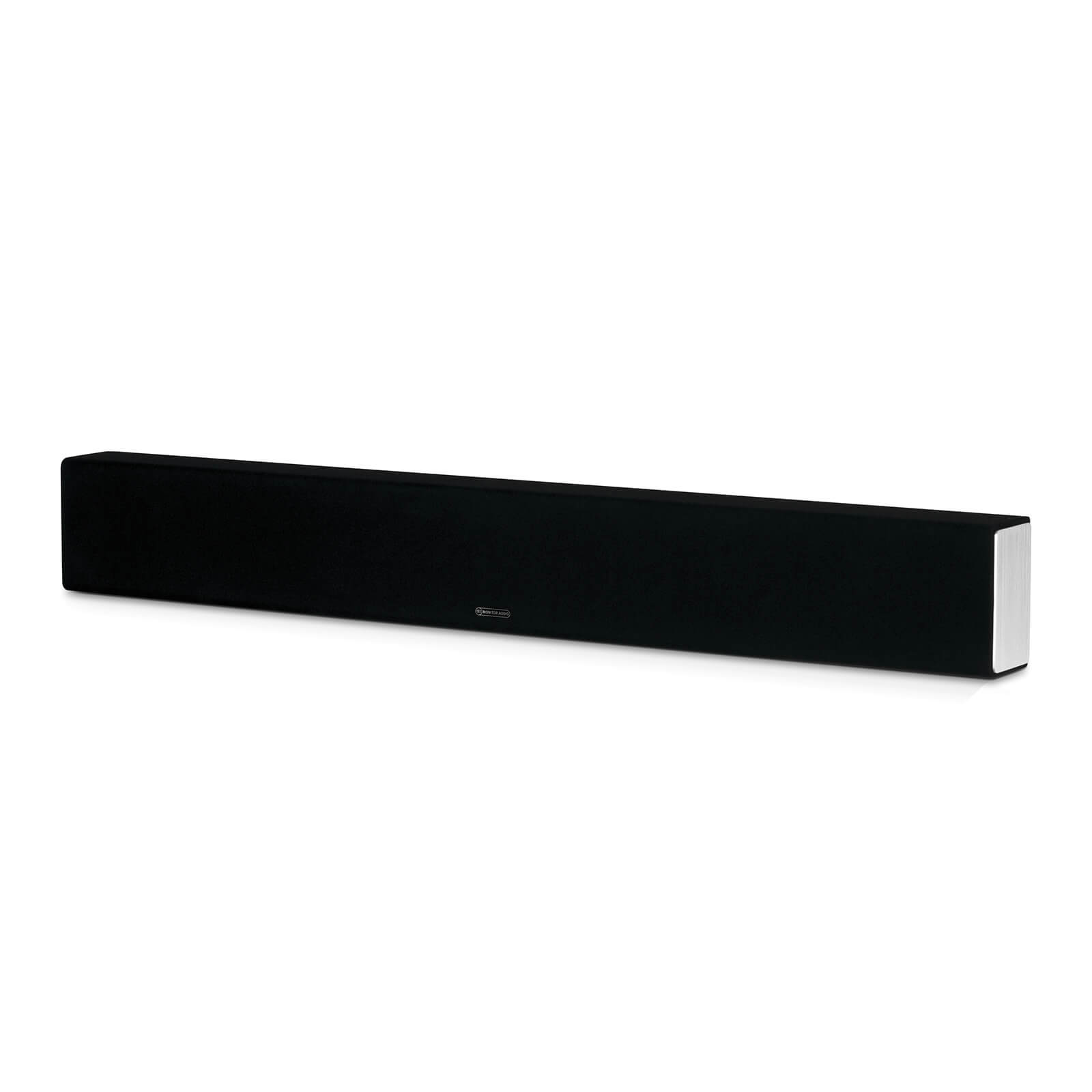

Description

Setting the bar for TV sound
The SB-2 employs individual 4-inch C-CAM mid-bass, 1-inch C-CAM tweeter, and sealed ABR (Auxiliary Bass Radiator) drivers per section.

In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full-range audio way beyond the limits of any TV’s sound system.

Frequency Response (-3 dB)
90 Hz – 30 kHz

Sensitivity (1W@1M)
84 dB

Nominal Impedance
8 ohms

Power Handling (RMS)
40 W

System Power Handling (RMS)
100 (High pass filter set to 100 Hz)

Recommended Enclosure
30 — 100 W

Crossover Frequency
80 — 120 Hz

Maximum SPL
104 (108.8 all channels driven)

Bass Alignment
Auxiliary Bass Reflex (ABR) Loading

Drive Unit Complement
3 x 4″ (100 mm) C-CAM cone bass/mid driver
3 x 1″ (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions: (H x W x D) (Including Feet)
145 x 1110 x 89 mm (511/16 x 4311/16 x315/16″)

External Dimensions (Including Bracket (H x W x D))
145 x 1110 x 100 mm (511/16 x 4311/16 x 315/16″)

Bracket
BSB

Weight
7.64 kg (16 lb 12 oz)

Sold As
Single Unit
