Monitor Audio Platinum In-Wall 3G (ea)
Monitor Audio Platinum In-Wall 3G (ea) - Image 2
Monitor Audio Platinum In-Wall 3G (ea) - Image 3
Monitor Audio Platinum In-Wall 3G (ea) - Image 4
Monitor Audio Platinum In-Wall 3G (ea) - Image 5
Monitor Audio Platinum In-Wall 3G (ea) - Image 6
Monitor Audio Platinum In-Wall 3G (ea) - Image 7
Monitor Audio Platinum In-Wall 3G (ea) - Image 8

Monitor Audio Platinum In-Wall 3G (ea)

$8,990.00

The Platinum In-Wall 3G is a three-way architectural In-Wall loudspeaker that features an MPD III tweeter, 4” RDT III midrange driver and twin 6″ RDT III bass drivers. It can be used either horizontally or vertically anywhere within a high-performance home theatre or two-channel stereo system.



Categories: , , , Tags: , , , , Brand:

Description

Objects of Desire.
Platinum In-Wall 3G is Monitor Audio’s flagship high-performance, architectural, in-wall speaker. It is designed for use in high-end audio and movie systems, where accurate, clear and lifelike sound is required. With the minimum of room intrusion but with maximum scale and sonic impact.

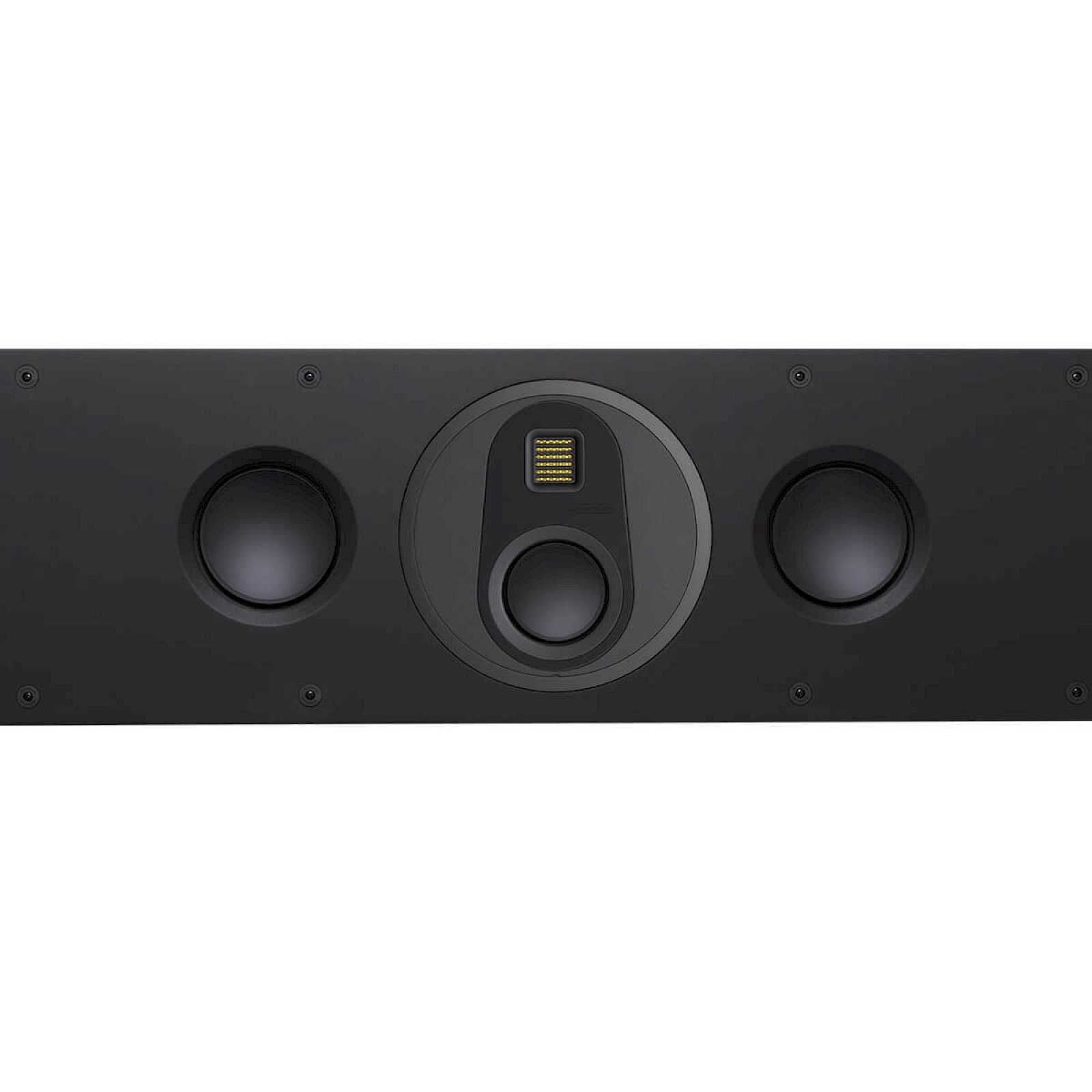

Platinum In-Wall 3G can be installed either vertically or horizontally, which means it can be used on any channel within a system and is ideal for LCR applications and for seamless tonal accuracy within a theatre system.

Features at a glance:

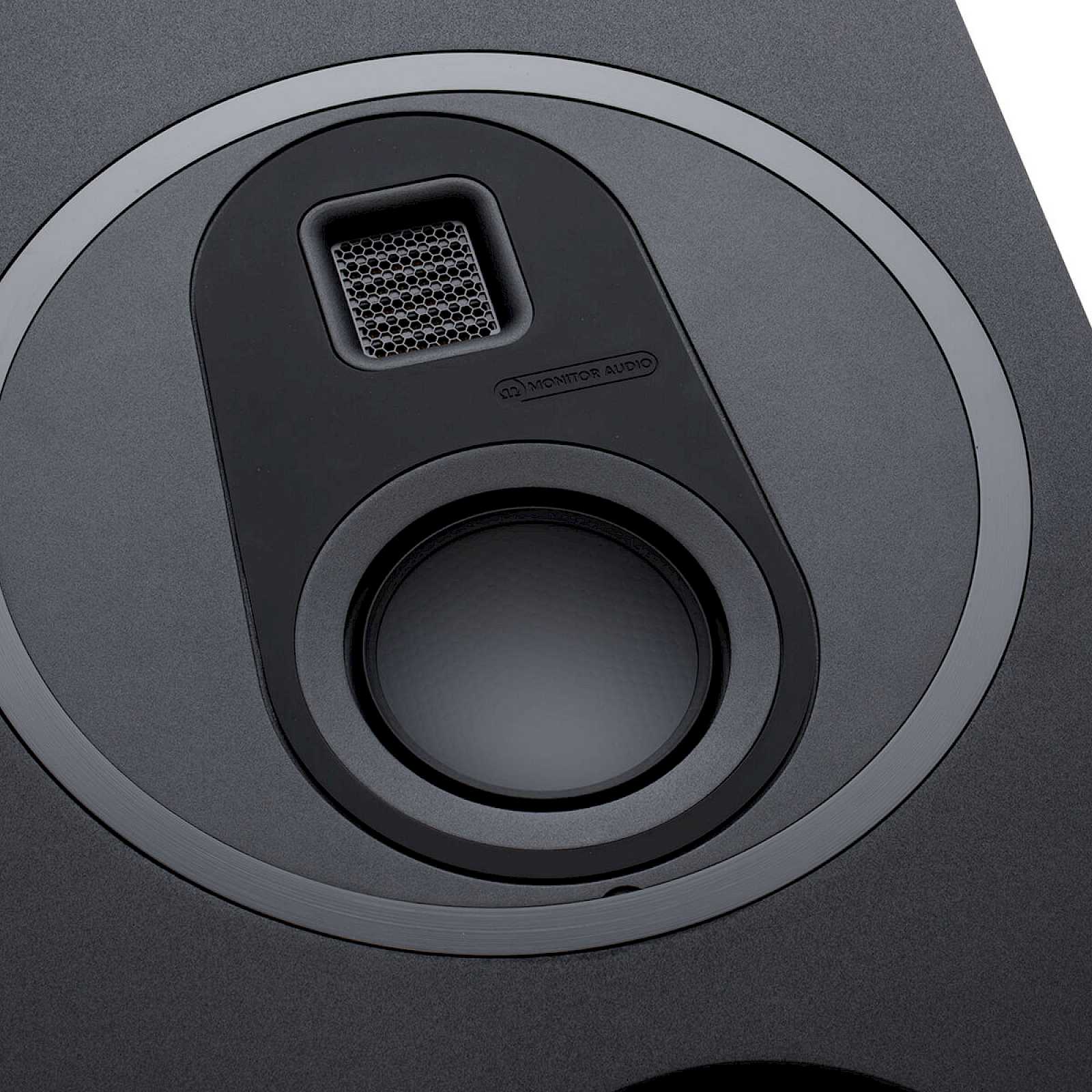

1 x MPD III high-frequency transducer

1 x 4” RDT III mid-bass driver

2 x 6” RDT III bass drivers

Dynamic Coupling Filter

Bespoke speaker terminals and footings

Underhung, edge-wound voice coils

Rigid cabinet MDF construction

Specifications

System Format 3-Way
Frequency Response, Free-Field (-6dB)​ 41 Hz – >60 kHz​
Frequency Response, In-Room (-6dB) 27 Hz – >60 kHz​
Sensitivity (2.83 Vrms @ 1m, Free-Field)​​ 88 dB
Nominal Impedance 4 Ohms
Minimum Impedance 4.1 Ohms​ @ 1.6 kHz​
Continuous Power Handling​ ​(RMS into 4 Ohms, Pink Noise with 6dB Crest Factor) 300 W​
Recommended Amplifier Power​ (RMS into 4 Ohm, Music Signal) 150 – 600 W​
Bass Alignment Sealed
Port Tuning Frequency N/A
Crossover Frequency LF/MF: 825 Hz​
MF/HF: 3 kHz​
Drive Unit Complement 2 x 6” RDT III bass driver,
1 x 4” RDT III mid-range driver,
1 x MPD III tweeter​​
External Dimensions (Including Grille and Terminals (H x W x D)) 1207 x 332 x 105.5 mm (479/16 x 131/16 x 44/16”)
Cut-Out Dimensions 1175 x 300 x 97.5 mm (461/4 x 1113/16 x 313/16“)
Weight (each) 27.7 kg (61 lb)
