Description

True cinema sound at home

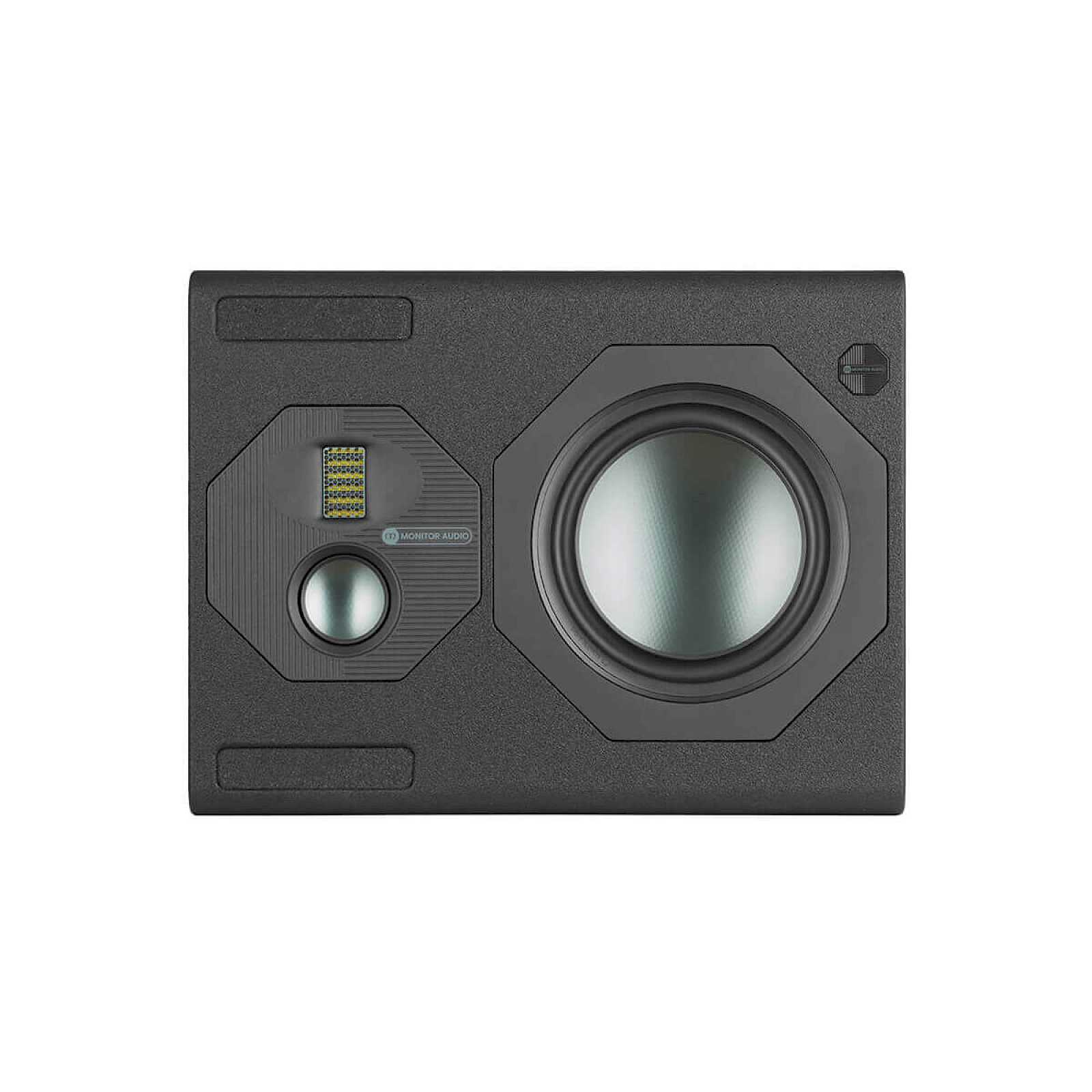

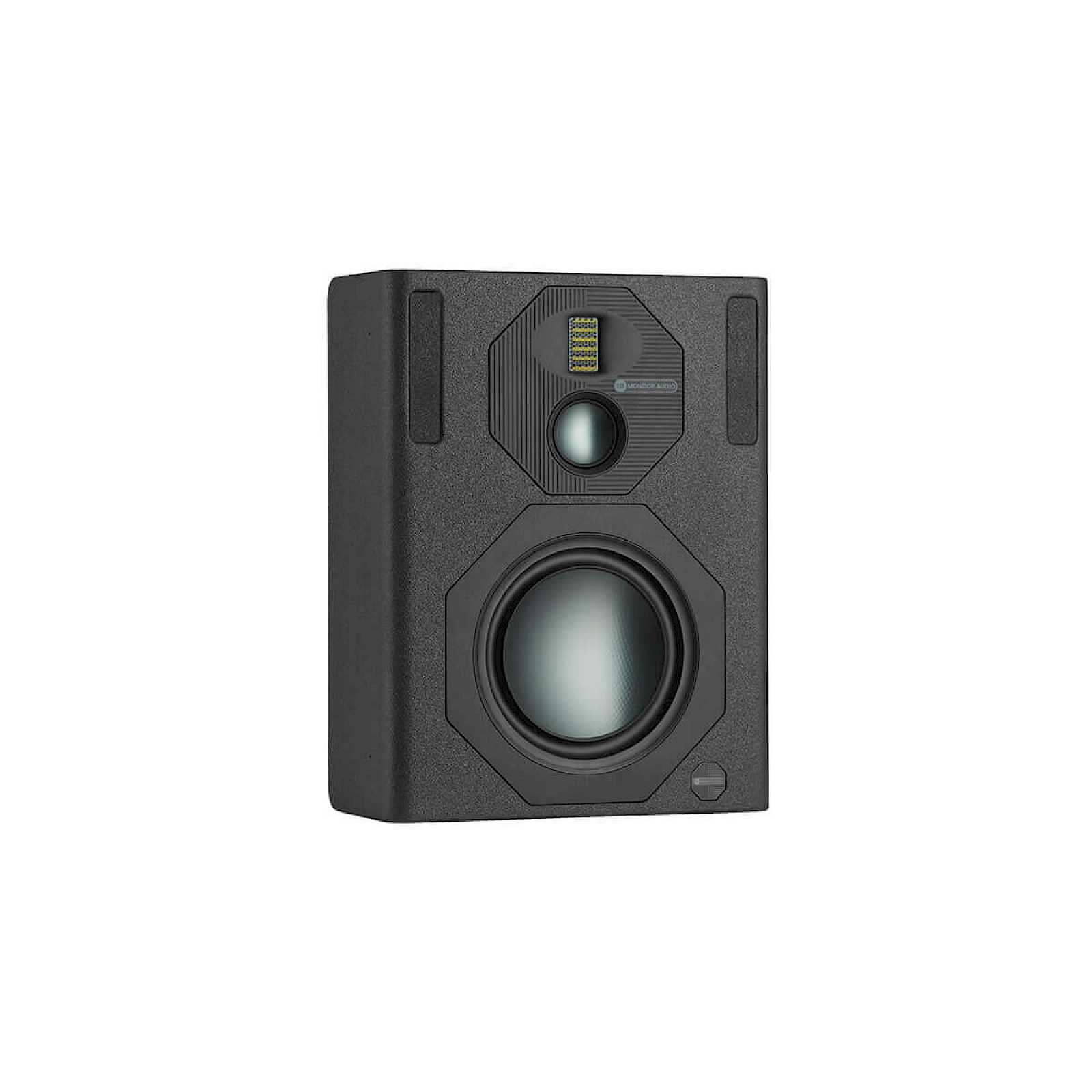

Unique isolation options separate the speaker from surfaces around it, reducing vibrations for purer sound and a truly cinematic experience. Removable port bungs give your installer the power to tailor the bass response to you. And thanks to precise equaliser settings for use with Monitor Audio’s amplifiers, it’s possible to fine-tune your listening experience even further.

THX Certification
THX® Certified Ultra

System Format
3 Way

Sensitivity (2.83 Vrms @ 1 M)
89 dB

Maximum Linear SPL**** (@1m, free space)
Continuous 103 dB, Peak 116 dB

Power Handling (RMS)
Continuous 200 W, Peak* 800 W

Nominal Impedance
4 Ohms

Minimum Impedance (20 Hz – 20 kHz)
3.8 Ohms

Recommended Low Frequency Crossover Frequency
80 – 100 Hz (High Pass)

Recommended Amp Requirements (RMS)
100 – 800 W (IA750-2 or IA750-4)

Bass Alignment
Ported**

Port Tuning Frequency
67 Hz**

LF Extension, In Wall, With Port Bungs (- 6dB)
48 Hz

LF Extension, In Free Space, No Port Bungs (- 6dB)
65 Hz

HF Extension (-6dB)
>30 kHz

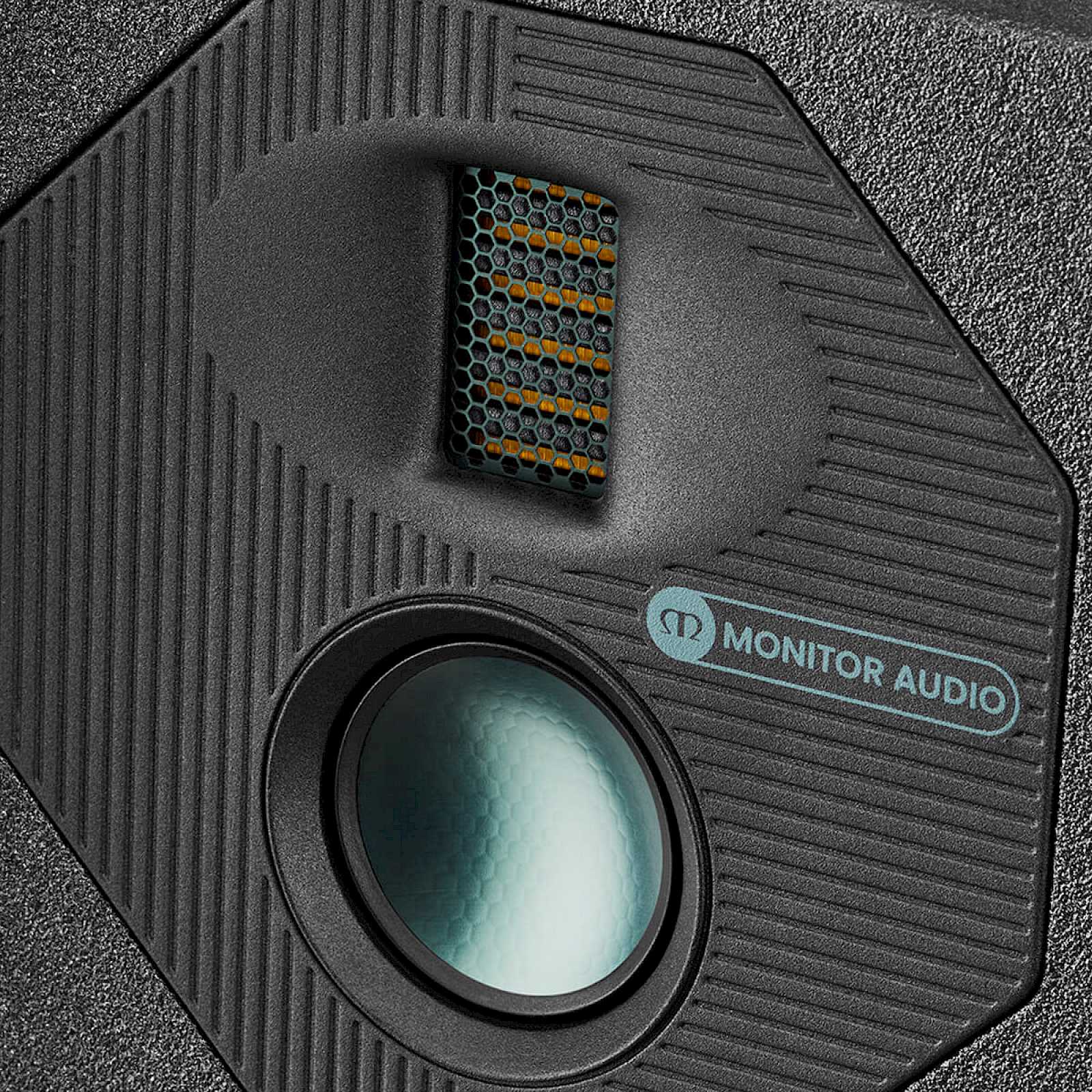

Drive Unit Complement
1 x 8″ RDT Driver
1 x 2.5″ C-CAM Driver
1 x MPD Transducer

External Dimensions (Cabinet Only (H x W x D))
460 x 350 x 160 mm (181/8 x 133/4 x 65/16″)

External Dimensions (Inc Grille) (H x W x D)
460 x 350 x 174.1 mm (181/8 x 133/4 x 67/8″)

Weight
18.4 kg (40 lb 8 oz)

Conditions
* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.

** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.

*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.

**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.

THX
THX® Certified Loudspeakers.

THX® and the THX® Logo are the property of THX® Ltd., registered in the U.S. and other countries.
