Mission M-CUBE+SE5.1 PACK
Mission M-CUBE+SE5.1 PACK - Image 2
Mission M-CUBE+SE5.1 PACK - Image 3

Mission M-CUBE+SE5.1 PACK

$999.00

The M-CUBE+SE subwoofer is a powerhouse accepting LFE output from the AV processor and achieving a 35 – 150Hz power spectrum with exceptional dynamics and control. This is the result of using a 200mm long-throw, high linearity sub-bass unit driven by a new 150 Watt Class D amplifier equipped with precisely aligned equalisation for a clear and powerful bass rendition that matches the satellites.

SKU: N/A Categories: , , , , Tags: , , , , Brand:

Description

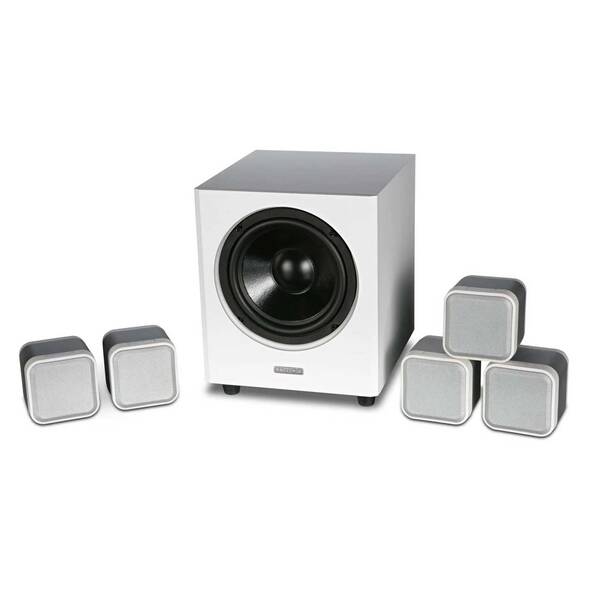

Continuing the success of the M-CUBE series Mission brings this latest version which is sure to be a favourite. This is the all-new M-CUBE+SE 5.1 surround sound system from the innovative M-CUBE range.  The M-CUBE+SE is designed specifically to meet the requirements of the home user who requires a fuss-free solution to Cinema and Surround Sound music in the home. Installation is simple thanks to the small, elegant appearance of the M-CUBE+SE satellite speakers multiple mounting arrangements and the wide dispersion characteristics.

The full-range driver in each M-CUBE+SE satellite speaker not only covers the frequency range 120Hz to 20kHz, output by an AV processor set to ‘Small’ but also disperses its output over a wide listening area.

With easy-install on-wall or shelf mounting, the new Mission M-CUBE+SE is the solution for anyone looking for hi-fi quality sound from AV and music sources who require a versatile and discrete loudspeaker system.

Wall Brackets available.

Additional information

Colour

Ivory White, Midnight Blue

Specifications

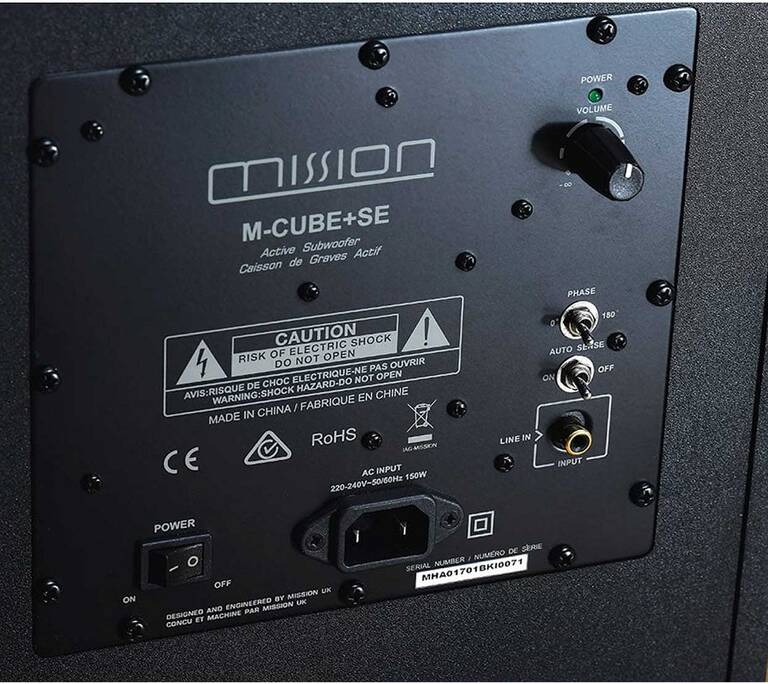

M-CUBE+SE SUBWOOFER
  • General Description:  Active closed-box subwoofer system
  • Enclosure type:  Closed box
  • Transducer complement:  8 inch (200mm) long throw bass driver
  • Input sensitivity:  200mV for maximum Ouput
  • Amplifier power output:  70W
  • Peak power output:  150W
  • Peak SPL:  110 dB
  • Frequency response:  40Hz -150 Hz
  • Bass extension:  (-6dB) 35Hz
  • Crossover frequency:  35Hz -150 Hz
  • Signal -to-noise ratio(s/n):  >85dB
  • Special features:  Phase inversion, Auto On/Off, low pass filter frequency adjustment
  • Dimension:  H(298+30) x W268 x D294 mm
  • Carton Size: 390*390*525 mm (Packed in a system, incl. subwoofer and Spcs satellite speakers)
  • Net Weight (Kg):  12kg (Packed in a system, incl. subwoofer and Spcs satellite speakers)
  • Gross Weight (Kg):  14kg (Packed in a system. incl. subwoofer and 5pcs satellite speakers)
  • Finish colour:  Black sandex & Ivory
  • Power requirements:   AC 100V-120V~/60Hz or 220V-240V~50/60Hz
  • Standard accessories:  Power cord, floor spikes, user manual, guarantee certificate
M-CUBE+SE SATELLITE
  • General description:  Wide bandwidth bookshelf/surround speaker
  • Enclosure Type:  Close box
  • Transducer driver:  3” Full range
  • AV shield:  No
  • Sensitivity (2.83V@1M):  85 dB
  • Recommended amplifier power:  40-80 W
  • Nominal impedance:  8 Ohms
  • Minimum impedance:  3.6 Ohms
  • Frequency response (+/-3dB):  120Hz-20KHz
  • Bass extension(-6dB):  110 Hz
  • Cabinet Volume:  0.52 litres
  • Dimension:  (H*W*D)mm 100*100*103 mm
  • Carton Size:  (L*W*H)mm 390*390*525 mm (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
  • Net weight (Kg) 12kg:  (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
  • Gross weight (Kg) 14kg:  (Packed in a system.incl. subwoofer and 5pcs satellite speakers)
  • Finish colour:  Graphite black & Ivory
  • Standard accessories:  Desk stand, User manual, guarantee certificate
