Description
Made in Japan!

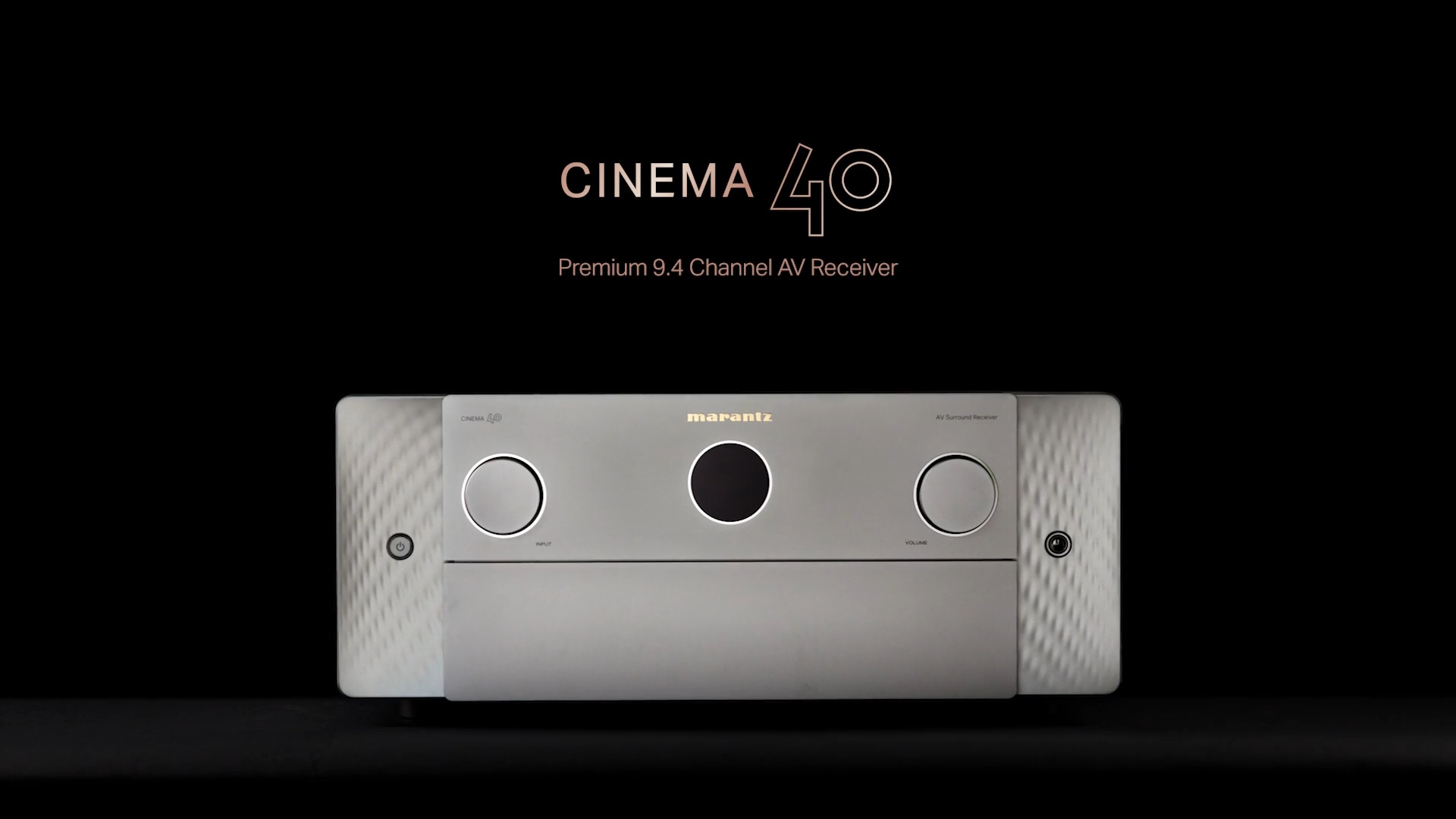

CINEMA 40….The ultimate AVR?
PREMIUM 9.4 CHANNEL | 125-WATTS-PER-CHANNEL AV RECEIVER
Premium 9.4 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming. CINEMA 40 is a statement piece and reference level A/V Receiver.
Achieve the Best Sound Possible
Dirac Live is an advanced room calibration solution that enables you to optimize the sound quality of your system. This world-class software is now available as an upgrade for CINEMA 40.
Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.
Technology Leader
CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
Exquisite Design
A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.
Technical Specifications
Power Amplifier
| Number of Powered Channels | 9 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | 125 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology |
| Composite In / Out | 2 / 0 |
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out via HDMI | Yes |
| Analog In / Fixed Level Out | 5 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: analog / digital | 2 / 0 |
| Multichannel Preamp Out | 11.4 |
| Subwoofer Out | 4 (independent) |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 11 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs | USB-A |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes / Yes |
| Dirac Live Upgradability | Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| Available Colors | Black/Silver-Gold |
| Metal Front Panel | Yes |
| System Remote Control | RC048SR |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO on/off) in W | 65 / 110 |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches |
17.3 x 16.2 x 7.3 17.3 x 16.2 x 10 17.3 x 15.8 x 7.3 |
| Weight in lbs. | 33.3 |
| What’s in the box | Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord |
