Description

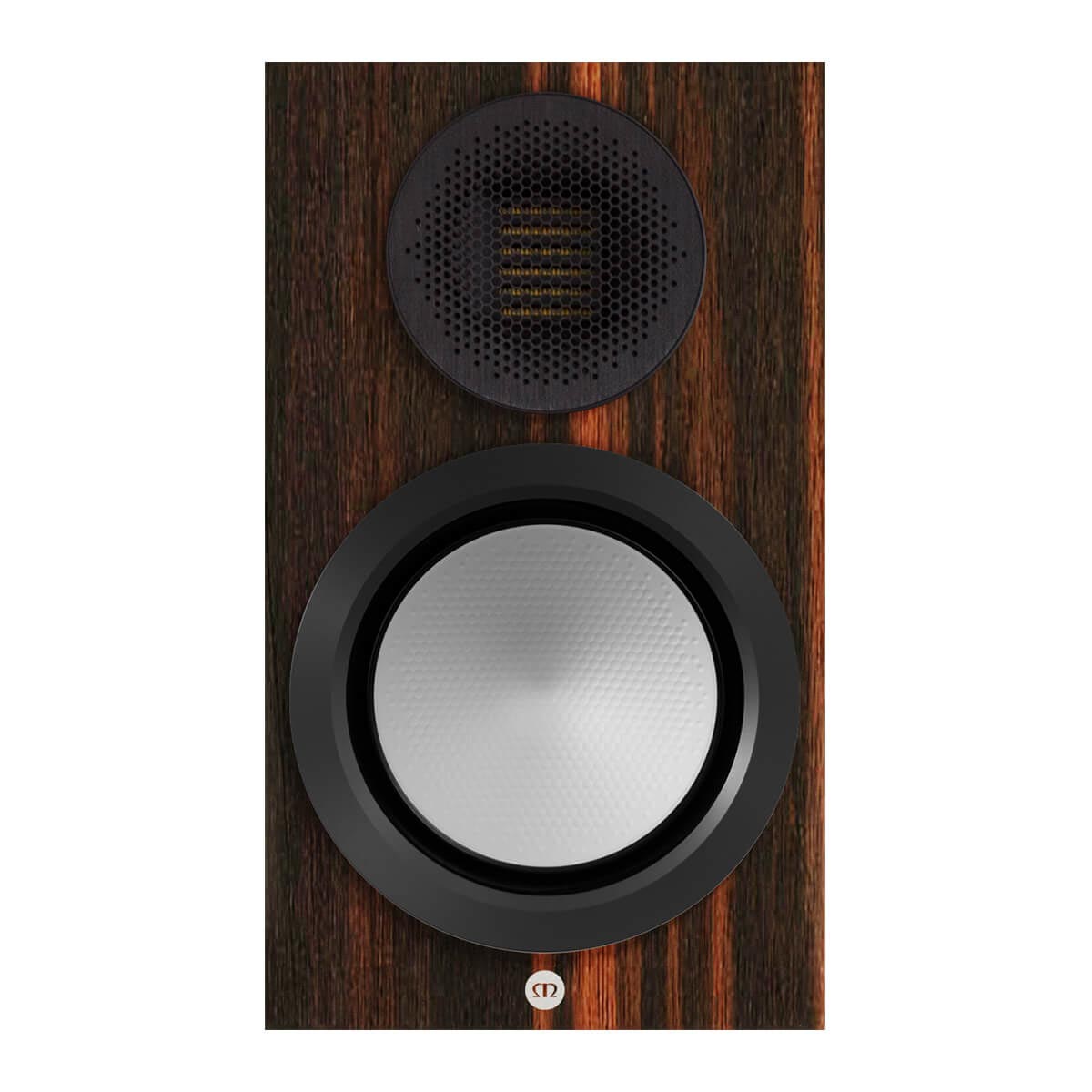

The Gold 50 6G is the smallest model in the Gold Series 6G. Incredibly flexible in its positioning potential, this two-way model features the latest MPD III high-frequency transducer alongside an HDT, C-CAM 6-inch mid-bass driver.
Features at a glance:

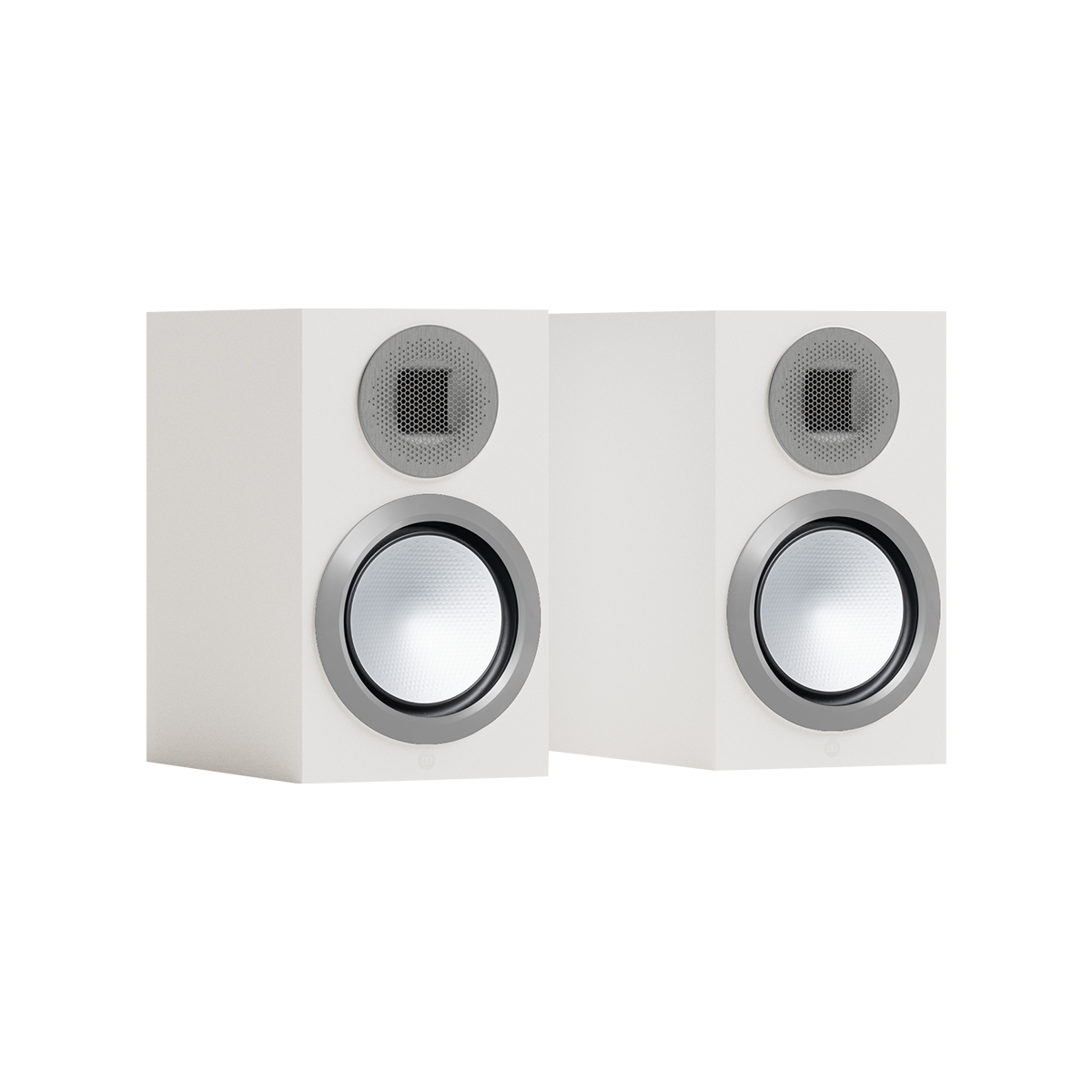

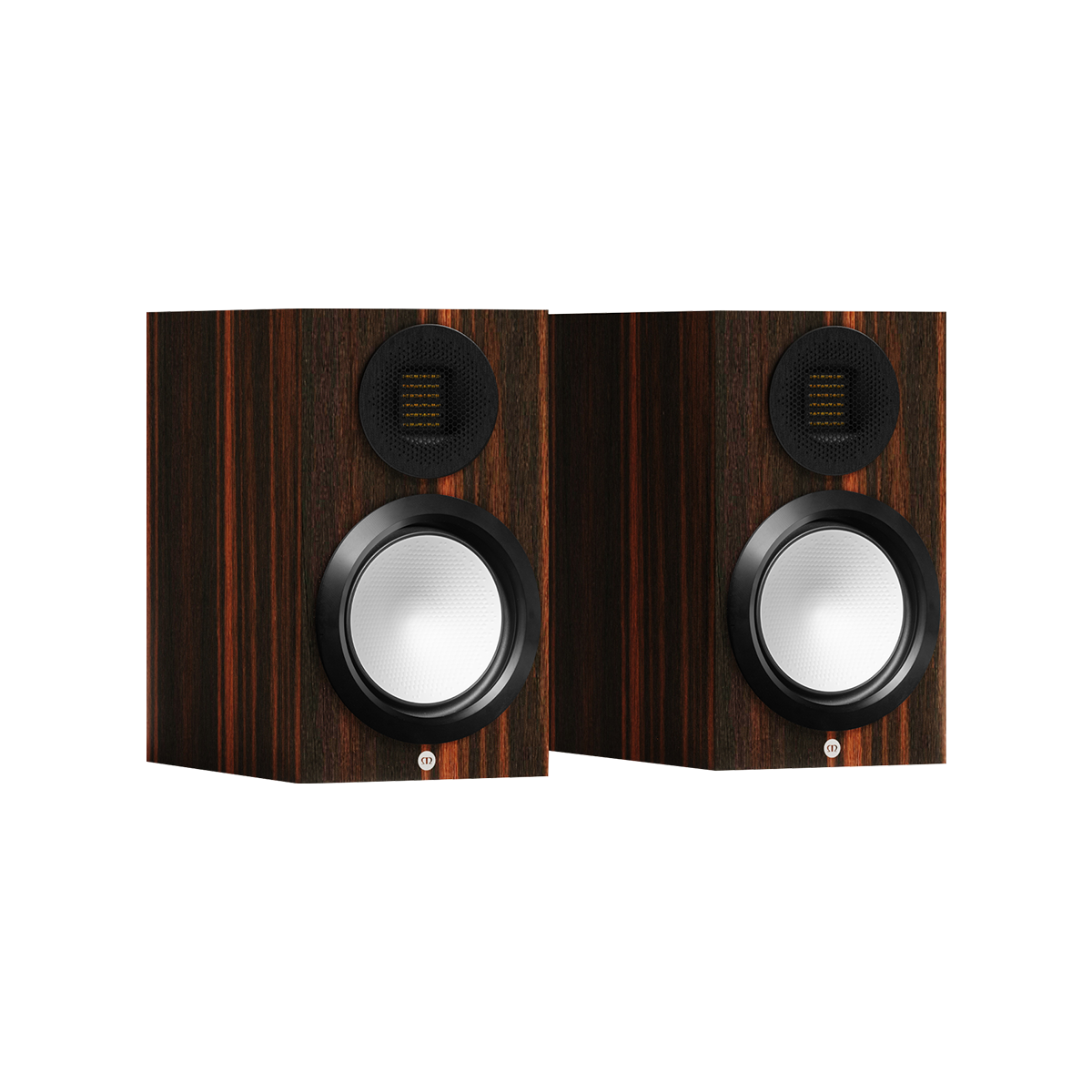

Two-way design | MPD III transducer | 6-inch bass-mid driver | HDT, C-CAM cone technology | Ported cabinet design using HiVe II port technology | Compatible with the ST-2 Universal Stand | Magnetic grilles’ included | Finishes available: Macassar wood veneer and Satin White
System Format
2-way
Sensitivity (2.83v @ 1m, Free-Field)
85 dB
Sensitivity (2.83v @ 1m, Installed)
N/A
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
130 – 300 W
Continuous Power Handling (CTA 426-B)
150 W
Nominal Impedance
4 Ohms
Minimum Impedance (20Hz to 20kHz)
4.0 Ohms @ 225 Hz
Drive Unit Complement
1 x 6” (152 mm) HDT C-CAM Bass-Mid Drivers
1 x MPD III Tweeter
Frequency Response Free-Field (-6dB)
55 Hz – 60 kHz
Frequency Response, In-Room (-6dB)
44 Hz – 60 kHz
Maximum Peak SPL (AES75, Z-weighted)
114 dB
Bass Alignment
HiVe II Ported
Port Tuning Frequency
50 Hz
Crossover Frequency
LF/HF: 2.5 kHz
External Dimensions with all accessories fitted (H x W x D)
320 x 185 x 303 mm (125/8 x 75/16 x 1115/16”)
Weight (each)
8.5 kg (18 lb 12 oz)
Sold As
Pair
Warranty
5 years
