Description

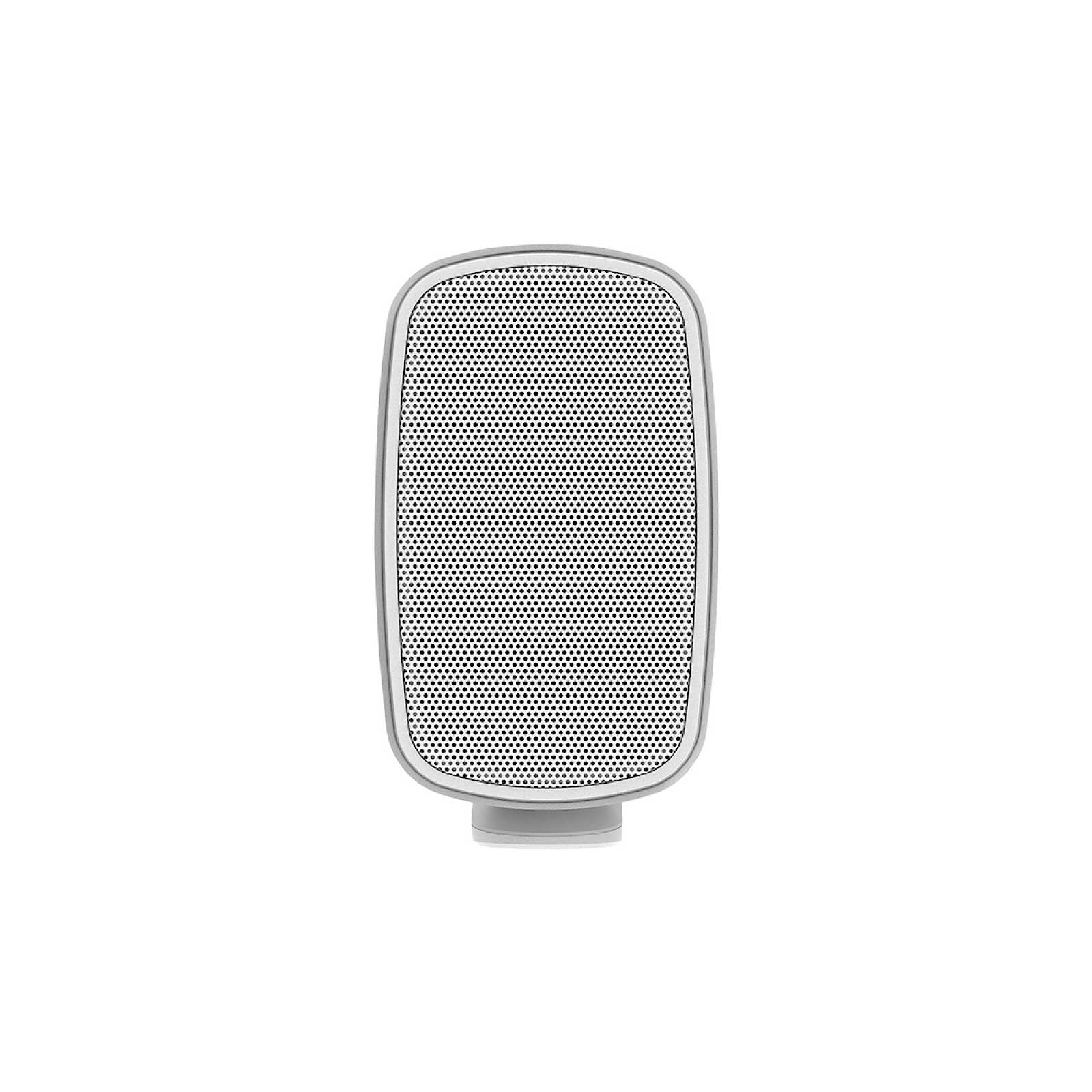

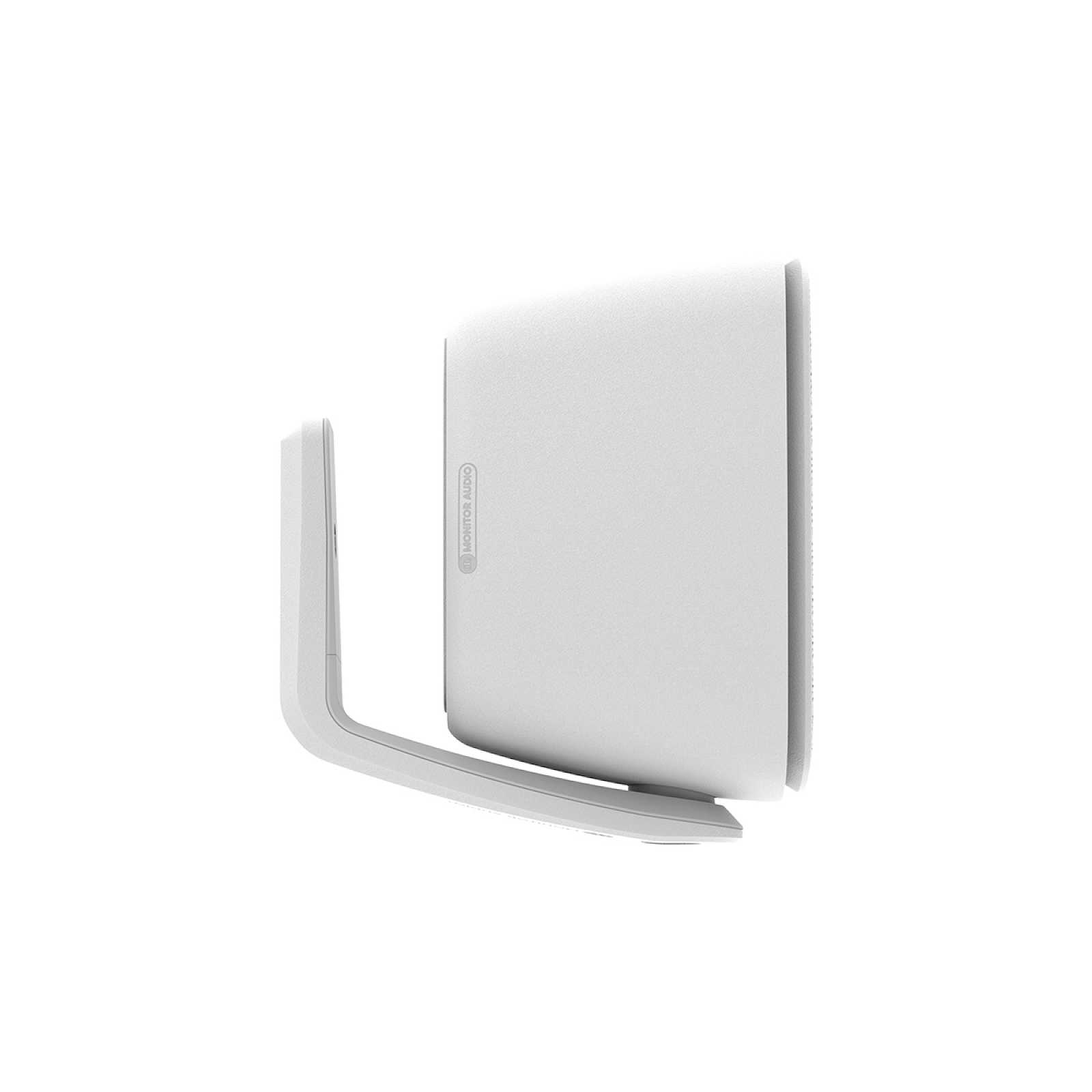

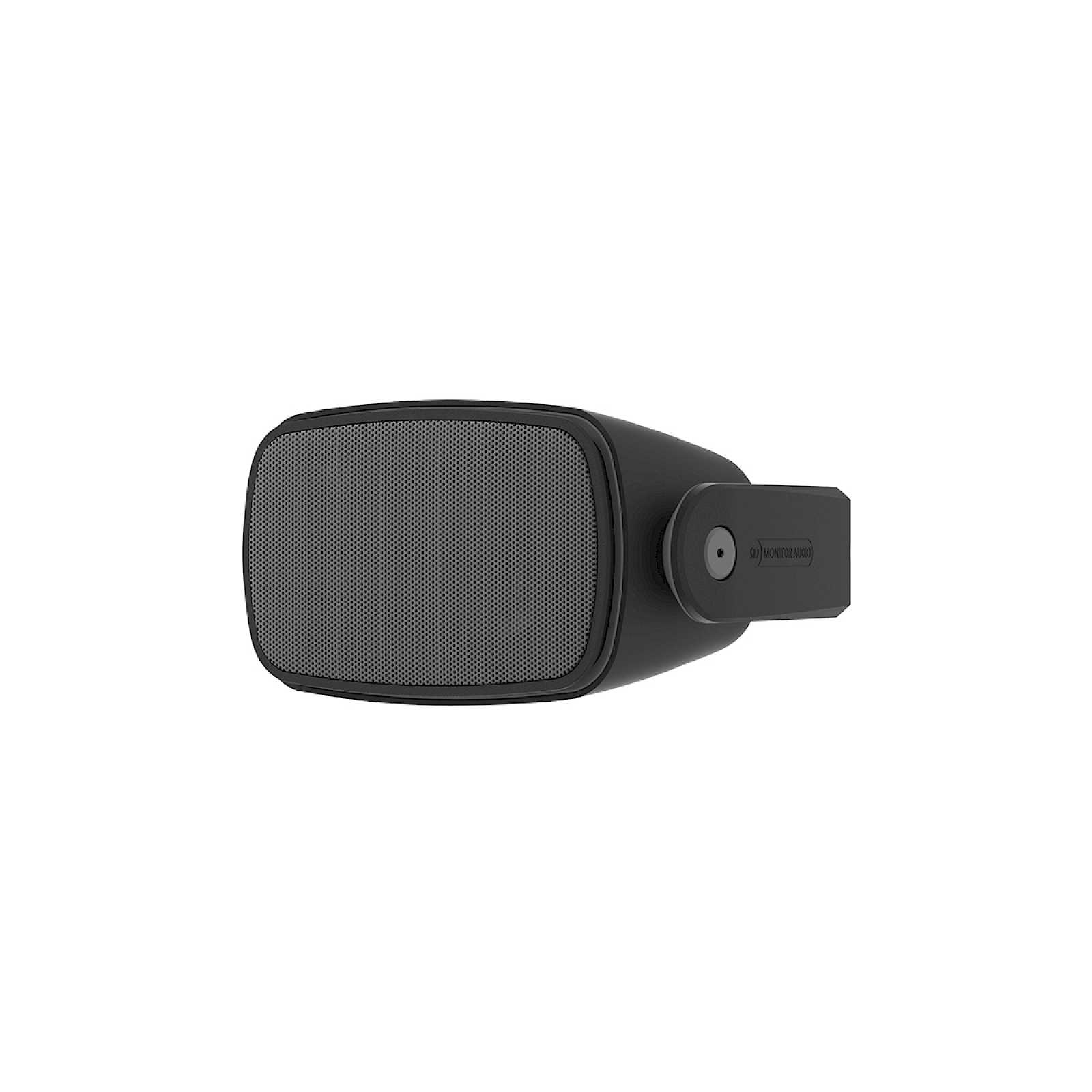

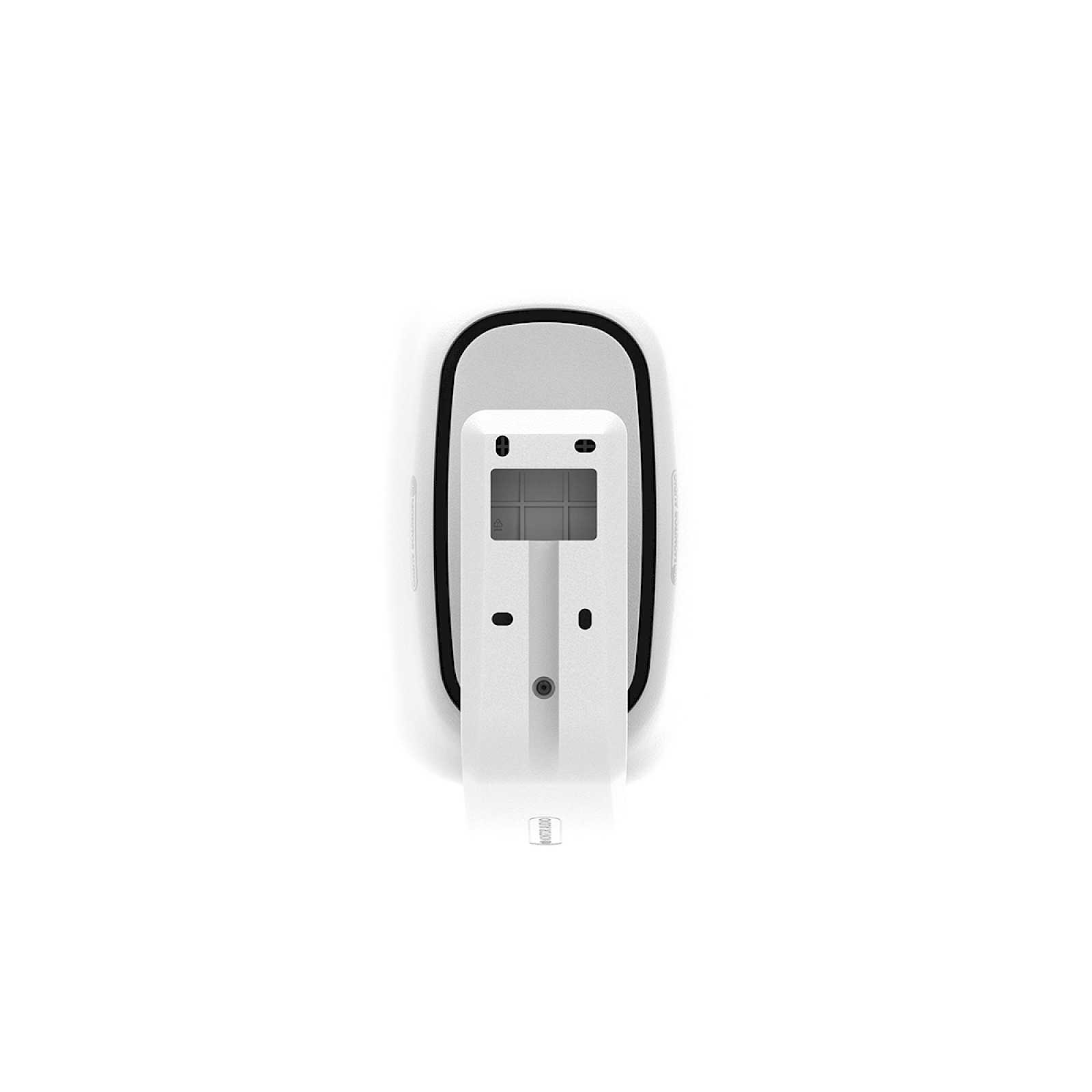

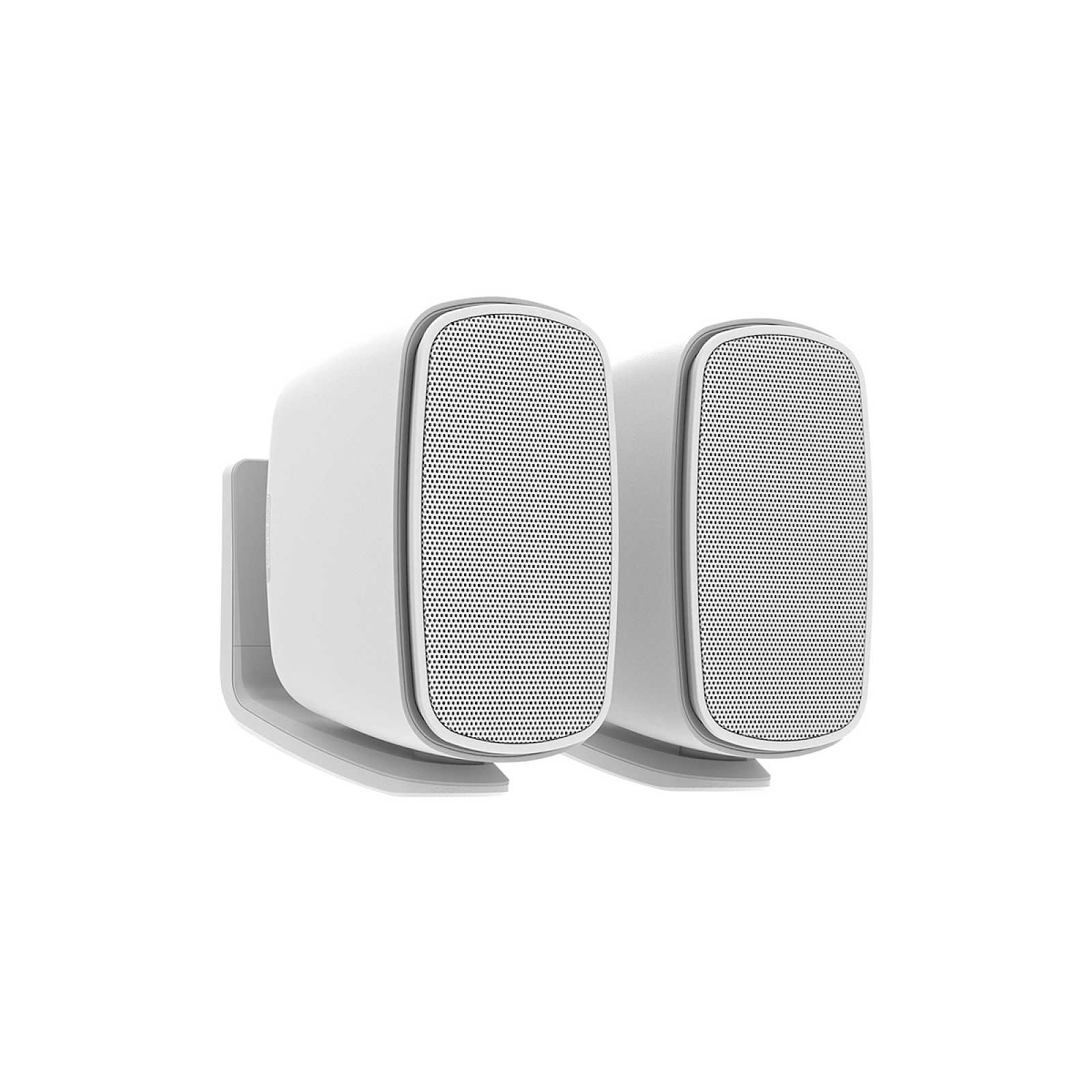

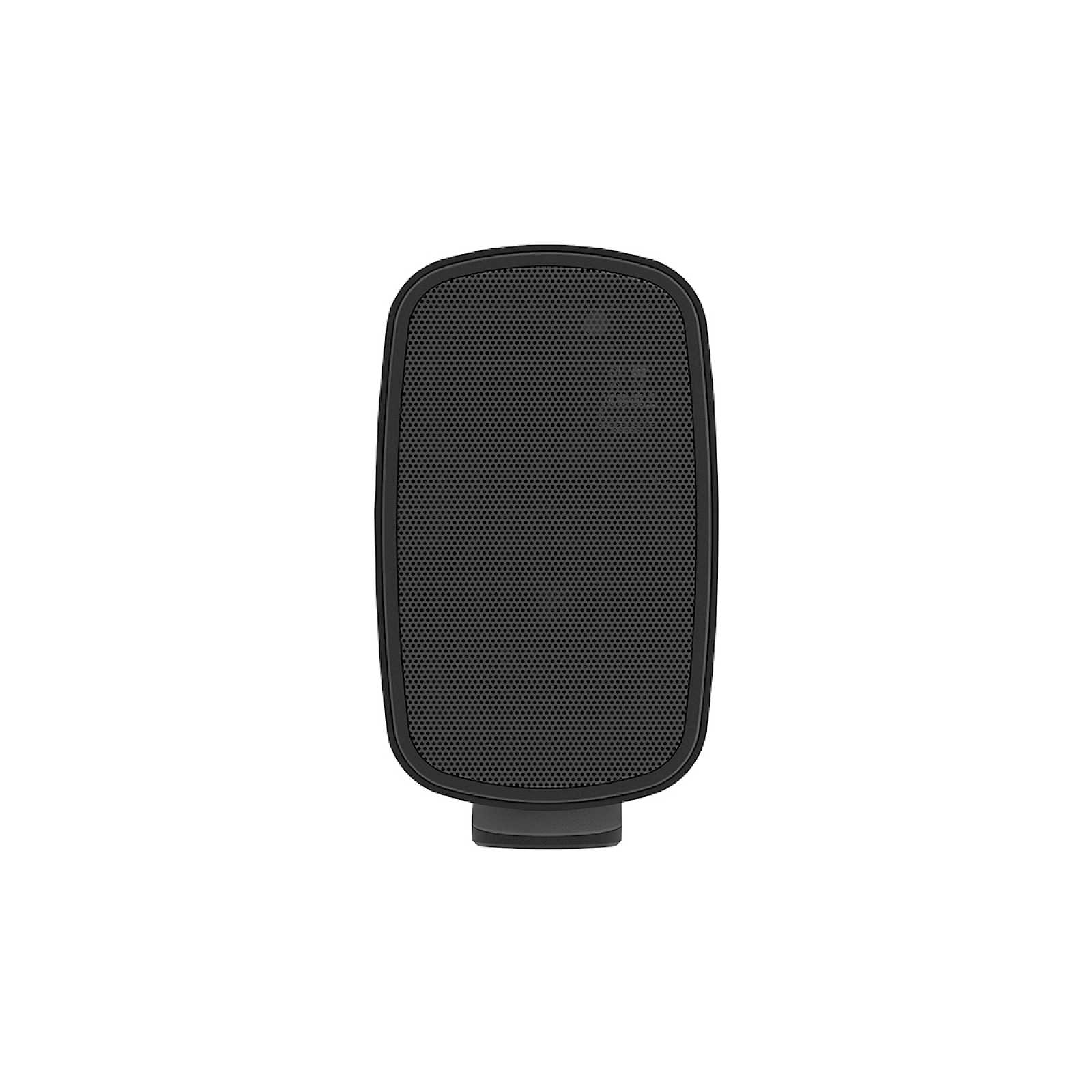

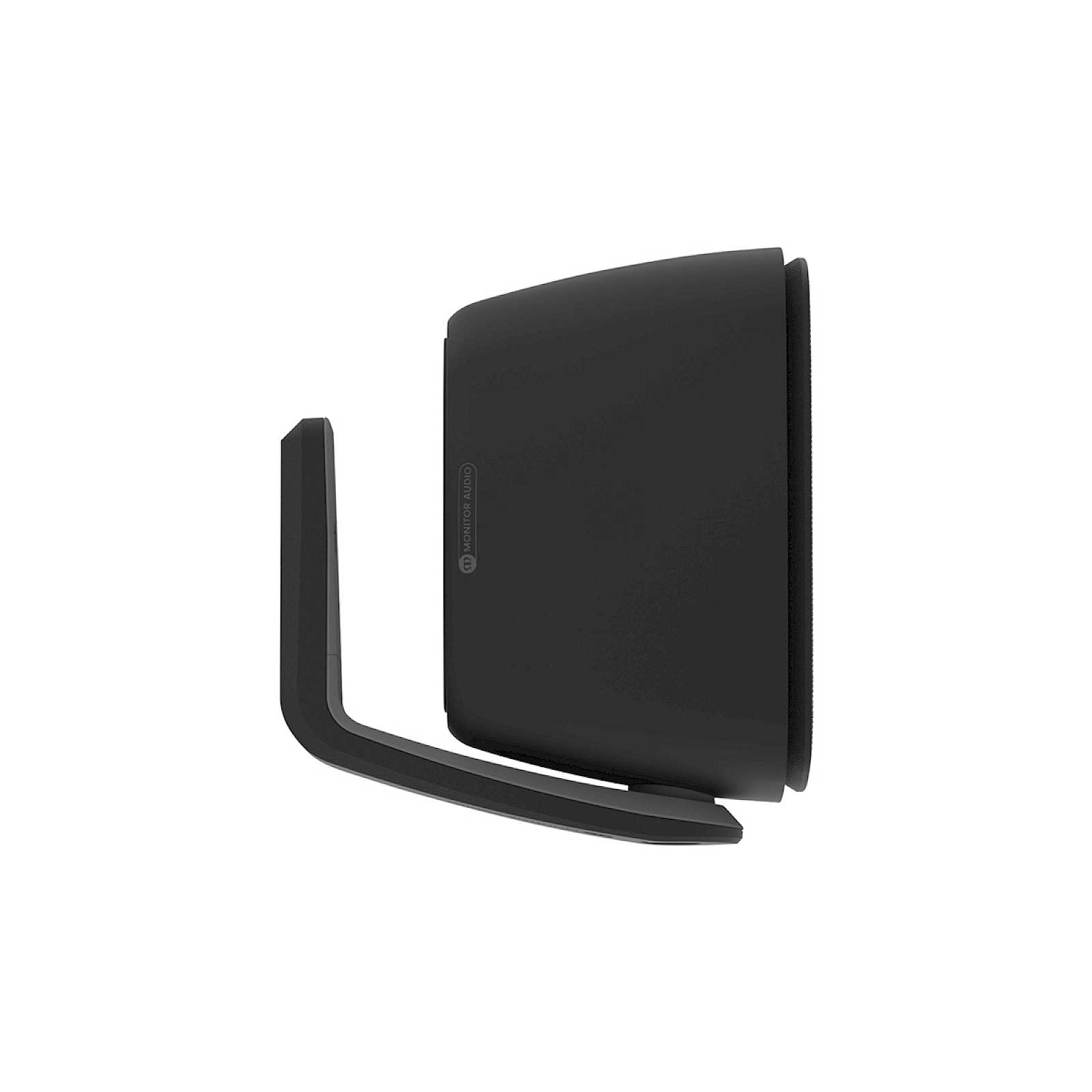

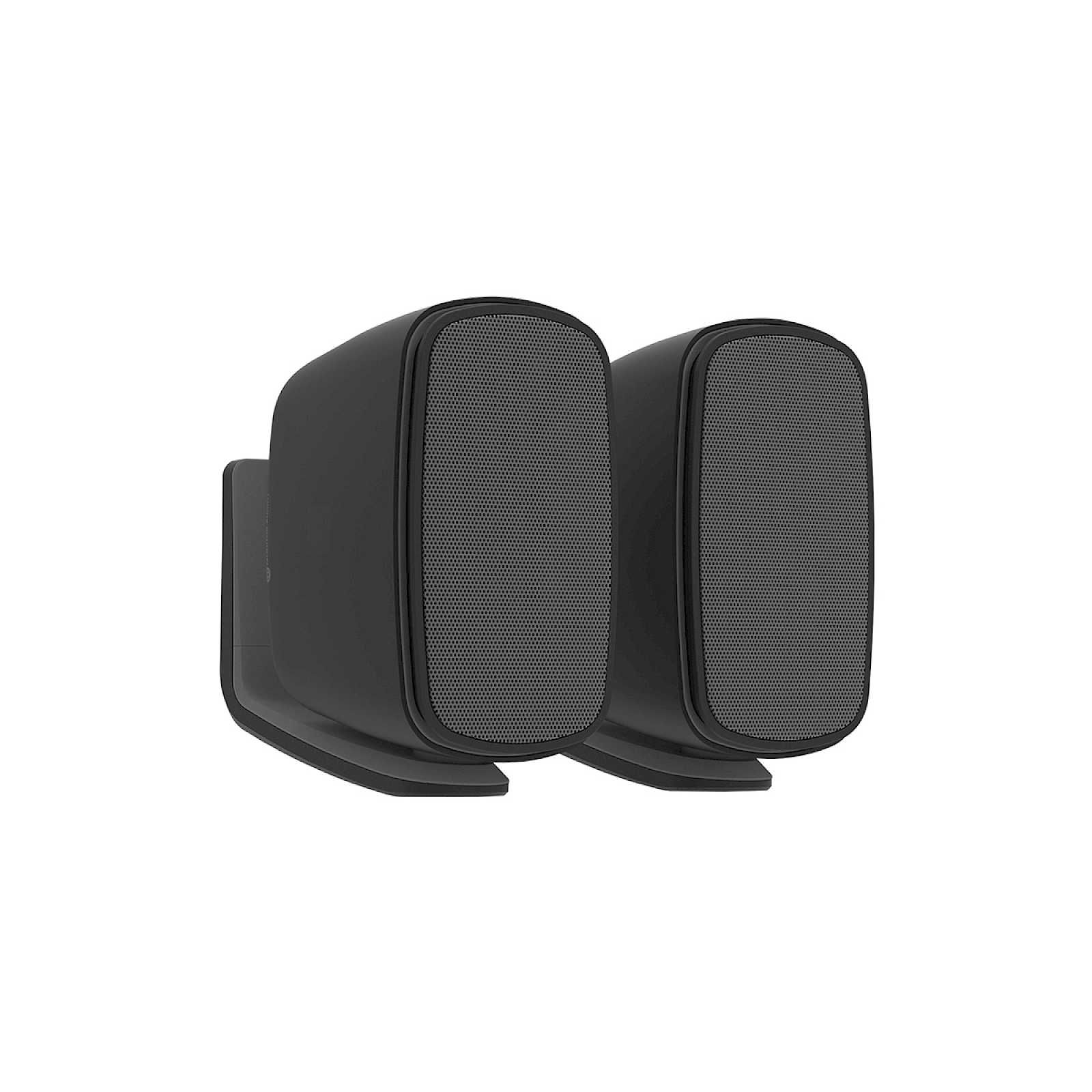

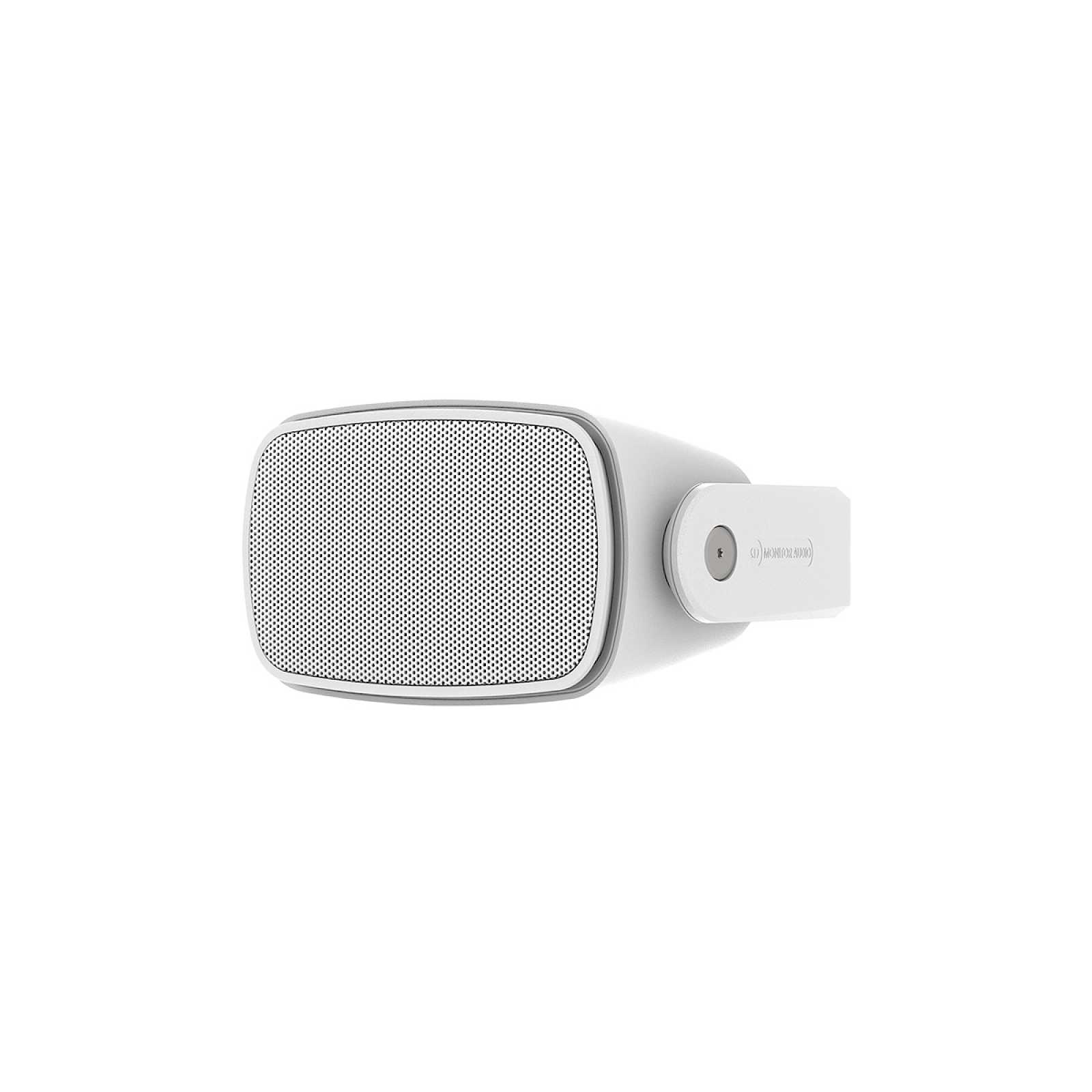

Two-way design | Auxiliary Bass Radiator | 1 x 100 mm (4”) C-CAM RST II bass-mid driver | 1 x 25 mm (1”) C-CAM black dome tweeter | ABS cabinet construction | IP Rated to IP66 | Die-cast ‘Quik-link’ bracket system | Finishes available: Black and White | Packaged and sold in pairs
Rating
IP66
System Format
2-Way
Sensitivity (2.83v @ 1m, Installed)
84 dB
Recommended Amplifier Power(RMS, Music Signal)
150 W
Continuous Power Handling (CTA 426-B)
70 W
Nominal Impedance
6 Ohms
Minimum Impedance (20Hz to 20kHz)
4.9 Ohms
Drive Unit Complement
1 x 4″ C-CAM RST II bass-mid driver
1 x 25 mm C-CAM black dome tweeter
Frequency Response, On-Wall (-6dB)
56Hz – 30kHz
Maximum Peak SPL (AES75, Z-weighted)
108 dB
Bass Alignment
Auxiliary Bass Radiator
Crossover Frequency
3.3 kHz
External Dimensions with all accessories fitted(H x W x D)
247 x 140 x 217 mm (93/4 x 51/2 x 89/16“)
Weight (each)
2.7 kg (5 lb 15 oz)
Warranty
5 years
